Stock Status: 1x unit in stock

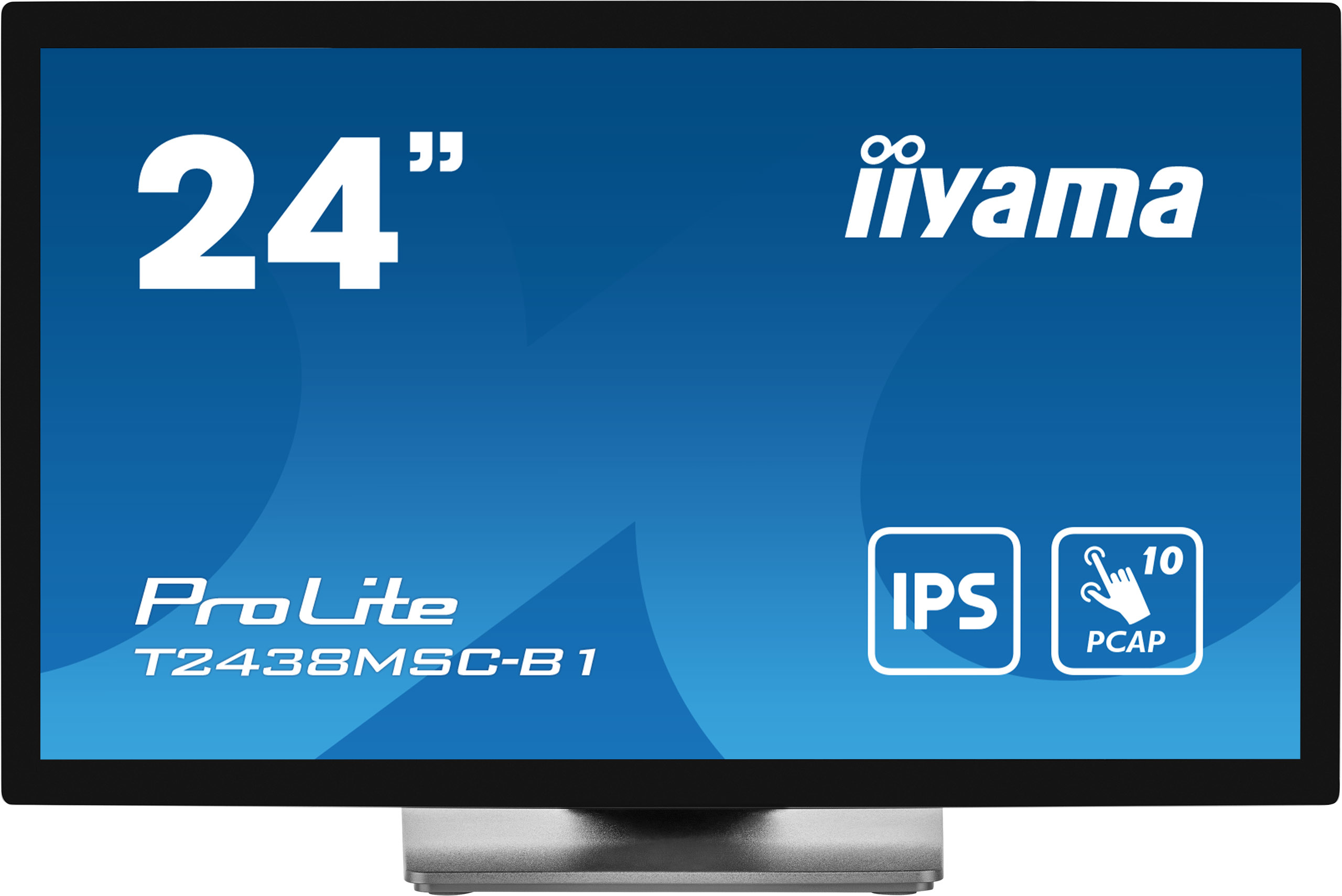

23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.
The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Specs
| Weight & dimensions |
| Width (with stand) |
561.5 mm |
| Depth (with stand) |
239.5 mm |
| Height (with stand) |
366 mm |
| Weight (with stand) |
8.2 kg |
| Bezel width (side) |
1.73 cm |
| Bezel width (top) |
2.03 cm |
| Bezel width (bottom) |
2.03 cm |
| Power |
| Energy efficiency class (SDR) |
E |
| Energy efficiency class (HDR) |
Not available |
| Power consumption (typical) |
22 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (off) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| European Product Registry for Energy Labelling (EPREL) code |
1530357 |
| Display |
| Display diagonal |
60.5 cm (23.8") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LED |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Panel type |
IPS |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1000:1 |
| Display number of colours |
16.7 million colours |
| Touchscreen technology |
Projected capacitive system |
| Touch technology |
Multi-touch |
| Number of simultaneous touchpoints |
10 |
| Display brightness (peak) |
600 cd/m² |
| Display brightness (typical) |
525 cd/m² |
| Aspect ratio |
16:9 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Response time (fast) |
5 ms |
| Pixel pitch |
0.275 x 0.275 mm |
| Horizontal scan range |
30 - 83 kHz |
| Display diagonal (metric) |
60.5 cm |
| Surface hardness |
7H |
| Ports & interfaces |
| Built-in USB hub |
Yes |
| HDMI |
Yes |
| Headphone out |
No |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity |
2 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| Ergonomics |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
German, English, French, Japanese, Polish, Russian |
| Plug and Play |
Yes |
| Other features |
| International Protection (IP) code |
IP1X |
| Certification |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Design |
| Product colour |
Black |
| Glass thickness |
3.6 mm |
| Performance |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Multimedia |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
| RMS rated power |
2 W |
| Packaging data |
| Package width |
650 mm |
| Package depth |
155 mm |
| Package height |
430 mm |
| Package weight |
10 kg |
| Packaging content |
| Cables included |
HDMI, Power, USB |
| Quick start guide |
Yes |
Features
iiyama ProLite . Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
Product Description
23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.
The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
