iiyama TE8615A-B2AG TE8615A-B2AG - MW01
[te8615a-b2ag]

Name: iiyama TE8615A-B2AG TE8615A-B2AG - MW01
Brand: Iiyama
SKU: te8615a-b2ag
Price: 2416.00 GBP
Availability: InStock

Part Number: te8615a-b2ag

Manufacturer: Iiyama

Condition: New

Short Description:

86in Black Interactive Display 4K 550cd

£2,416.00
£2,899.20 - Inc VAT

Stock Status: 1x unit in stock

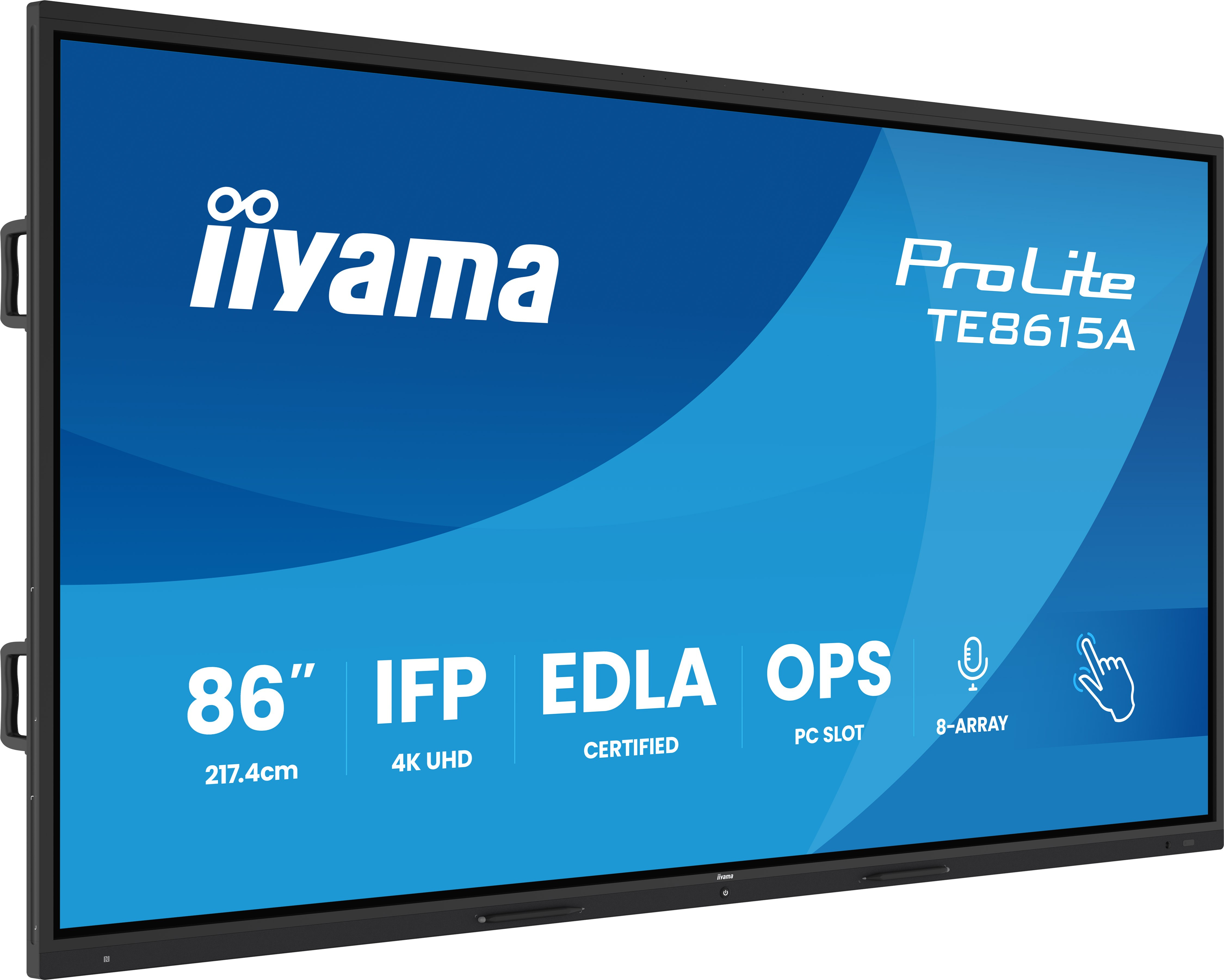

Elegance and functionality come together in the ProLite TE8615A-B2AG. This 86” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE8615A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6E, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE8615A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE8615A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.

Reviews

Specs

Weight & dimensions
Display width	1955.6 mm
Display depth	87.1 mm
Display height	1174.3 mm
Display weight	68 kg
Width	1955.6 mm
Depth	87.1 mm
Height	1174.3 mm
Weight	68 kg
Display
Display diagonal	2.17 m (85.6")
Display resolution	3840 x 2160 pixels
Display brightness	550 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Panel type	IPS
Touchscreen technology	Infrared
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	5000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.493 x 0.493 mm
Active display area (W x H)	1895 x 1066 mm
Display diagonal (metric)	217.4 cm
Horizontal scan range	30 - 135 kHz
Surface hardness	7H
Glass thickness	3.2 mm
Packaging data
Package width	2095 mm
Package depth	185 mm
Package height	1265 mm
Package weight	82.7 kg
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	60 W
Power
Power consumption (typical)	300 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	261 kWh
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Ports & interfaces
HDMI ports quantity	3
DisplayPorts quantity	1
USB port	Yes
HDMI version	2.0
HDMI input ports quantity	2
HDMI output ports quantity	1
DisplayPort version	1.2
USB ports quantity	4
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-B ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN (RJ-45) ports	2
RS-232C	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
OPS module slot	Yes
Audio Return Channel (ARC)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Other features
Quick start guide	Yes
Bluetooth	Yes
Bluetooth version	5.0
Built-in microphone	Yes
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type	Internal
Design
Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Yes
Orientation	Horizontal
Panel mounting interface	800 x 600 mm
Bezel width (bottom)	4.1 cm
Bezel width (side)	1.65 cm
Bezel width (top)	1.65 cm
Bezel colour	Black
Anti-glare screen	Yes
Positioning accuracy	1 mm
Performance
Purpose	Education
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
Number of OSD languages	13
On Screen Display (OSD) languages	CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Estonian, Hungarian, LAT, Lithuanian, Ukrainian
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Mean time between failures (MTBF)	50000 h
Technical details
OPS slot	1
Sustainability certificates	EPEAT, ErP, EPEAT Bronze
Warranty period	5 year(s)
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Audio in (mini jack)	Yes
Playback media	Y
User controls	personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balan
Computer system
Computer system	Yes
Built-in processor	Yes
Processor architecture	ARM Cortex-A53+Cortex-A72
Processor cores	8
Internal memory	8 GB
On-board graphics card model	ARM Mali-G52
Internal storage capacity	128 GB
Operating system installed	Android
Operating system version	14
Packaging content
Remote control included	Yes
Stylus pen	Yes
Number of stylus pens	4
Cables included	AC, USB, HDMI
Logistics data
Products per pallet	4 pc(s)
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Features

iiyama TE8615A-B2AG. Product design: Interactive flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

Product Description

Elegance and functionality come together in the ProLite TE8615A-B2AG. This 86” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE8615A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6E, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE8615A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE8615A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
