Stock Status: 1x unit in stock

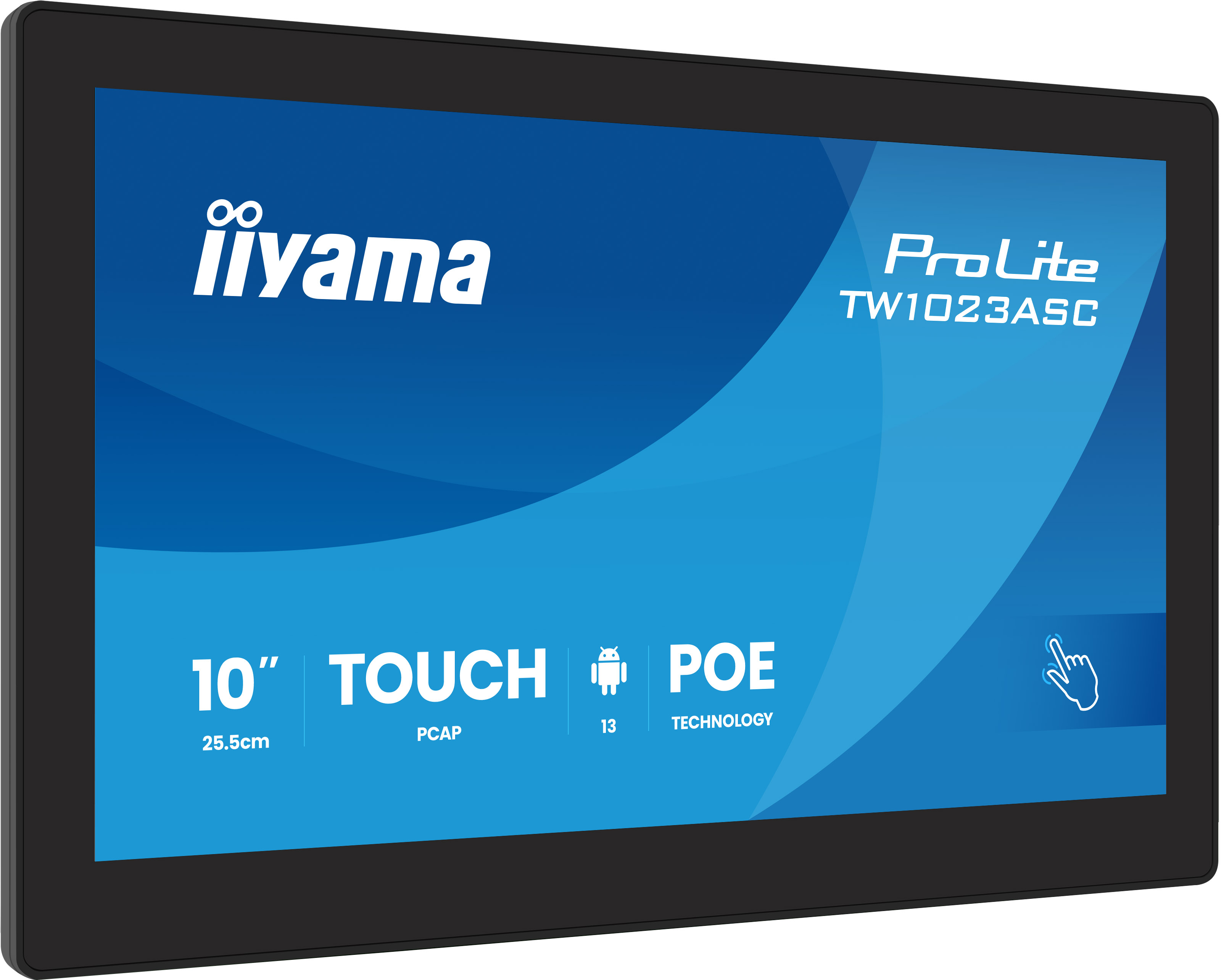

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
Specs
| Weight & dimensions |
| Display width |
255 mm |
| Display depth |
30.5 mm |
| Display height |
172 mm |
| Display weight |
800 g |
| Width |
255 mm |
| Depth |
30.5 mm |
| Height |
172 mm |
| Weight |
800 g |
| Display |
| Display diagonal |
25.6 cm (10.1") |
| Display resolution |
1280 x 800 pixels |
| Display brightness |
385 cd/m² |
| HD type |
WXGA |
| Touchscreen |
Yes |
| Panel type |
IPS |
| Touchscreen technology |
Projected capacitive system |
| Number of simultaneous touchpoints |
10 |
| Multi-touch |
Yes |
| Native aspect ratio |
16:10 |
| Response time |
25 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
160° |
| Viewing angle, vertical |
160° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.1692 x 0.1692 mm |
| Active display area (W x H) |
216.6 x 135.4 mm |
| Display diagonal (metric) |
25.5 cm |
| Colour depth |
8 bit |
| Surface hardness |
6H |
| Glass thickness |
1.25 mm |
| Packaging data |
| Package width |
398 mm |
| Package depth |
68 mm |
| Package height |
223 mm |
| Package weight |
1.36 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
3 W |
| Power |
| Power consumption (typical) |
18 W |
| Power consumption (standby) |
0.5 W |
| Input voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Ports & interfaces |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| USB port |
Yes |
| HDMI input ports quantity |
1 |
| Mini HDMI ports quantity |
1 |
| USB ports quantity |
4 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type |
Micro-USB, USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| PC Audio in |
Yes |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD |
| DC-in jack |
Yes |
| Other features |
| Micro-USB ports quantity |
1 |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Audio input |
Y |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Built-in microphone |
Yes |
| Megapixel (approx.) |
5 MP |
| RJ-45 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Viewable size, horizontal |
21.7 cm |
| Viewable size, vertical |
13.5 cm |
| Brightness |
385 cd/m² |
| Power supply type |
External |
| Cable management |
Yes |
| Built-in camera |
Yes |
| Design |
| Product design |
Kiosk design |
| Product colour |
Black |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Bezel colour |
Black |
| Fingerprint resistant |
Yes |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Number of microphones |
1 |
| Technical details |
| Internal memory |
32000 MB |
| Sustainability certificates |
ErP |
| Compliance certificates |
CE, EAC, REACH, RoHS, UKCA, WEEE |
| Audio in (mini jack) |
Yes |
| User controls |
Power, home, brightness +, brightness -, volume +, volume - |
| Computer system |
| Built-in processor |
Yes |
| Processor manufacturer |
Rockchip |
| Processor family |
ARM Rockchip |
| Processor model |
RK3568 |
| Processor frequency |
2 GHz |
| Processor cores |
4 |
| Internal memory |
4 GB |
| On-board graphics card model |
Mali-G52 MC1 |
| Internal storage capacity |
32 GB |
| Operating system installed |
Android |
| Operating system version |
13 |
| Google applications |
Google Chrome, Gmail, Google Calendar |
| Features |
| Suitable for indoor use |
Yes |
| Certificates |
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Packaging content |
| Power adapter included |
Yes |
| Cables included |
AC |
| Logistics data |
| Products per pallet |
256 pc(s) |
| Pallet gross length |
100 cm |
| Pallet gross width |
2.15 m |
| Pallet gross height |
120 cm |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
Features
iiyama TW1023ASC-B3P. Product design: Kiosk design. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display brightness: 385 cd/m², HD type: WXGA, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Product Description
The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
