Stock Status: 1x unit in stock
The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D_
_x000D_
In terms of housing, you can choose from among the extra-compact 10? cabinets and numerous 19? versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.
Specs
| Weight & dimensions |
| Size (imperial) |
48.3 cm (19") |
| Width |
540 mm |
| Depth |
450 mm |
| Height |
460 mm |
| Weight |
19 kg |
| Features |
| Rack capacity |
9U |
| Type |
Wall mounted rack |
| Product colour |
Black |
| Material |
SPCC |
| Frame type |
Closed |
| Front door construction |
Glass |
| Removable side panels |
Yes |
| Side panels included |
Yes |
| Key lock |
Yes |
| Front door key lock |
Yes |
| Certification |
ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Logistics data |
| Harmonized System (HS) code |
85381000 |
Features

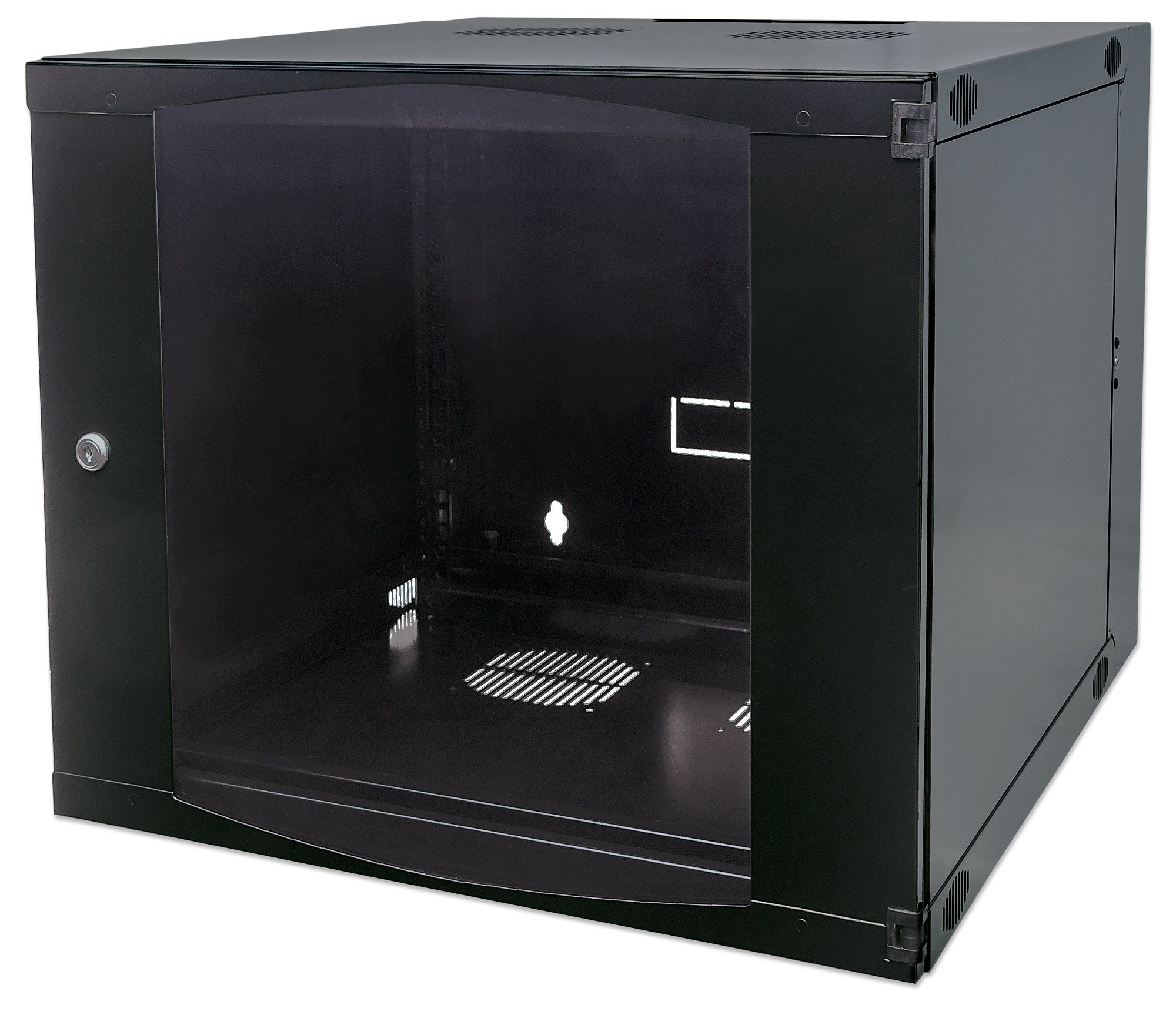

Intellinet Network Cabinet, Wall Mount (Double Section Hinged Swing Out), 9U, Usable Depth 235mm/Width 465mm, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, 19", Parts for wall install (eg screws/rawl plugs) not included. Type: Wall mounted rack, Rack capacity: 9U, Key lock. Weight: 19 kg. Product colour: Black
Product Description
The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D_
_x000D_
In terms of housing, you can choose from among the extra-compact 10? cabinets and numerous 19? versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.
