Stock Status: 1x unit in stock

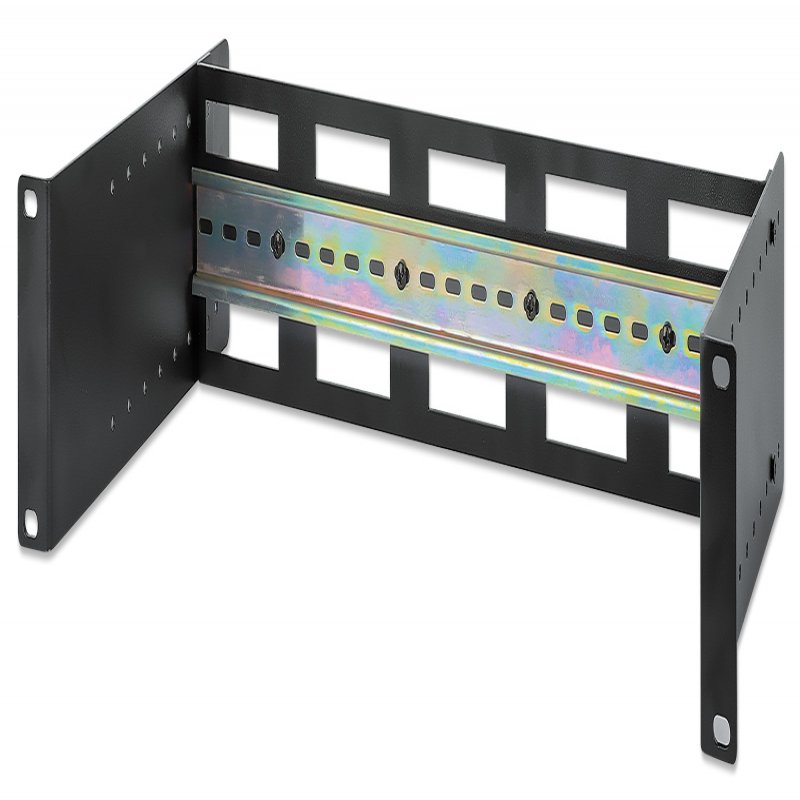

Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet
The Adjustable 19"" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.
Tailor Your Space with Depth Adjustment
With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.
Compliant and Compatible
Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.
Durable Construction Built to Last
Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).
Everything You Need Included
We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19"" mounting straight out of the box.
Specs
| Weight & dimensions |
| Width |
487 mm |
| Depth |
210 mm |
| Height |
89 mm |
| Material thickness |
2 mm |
| Weight |
1.3 kg |
| Features |
| Type |
Rack rail |
| Product colour |
Black |
| Housing material |
Aluminium |
| Maximum weight capacity |
9 kg |
| Rack capacity |
2U |
| Certification |
ANSI/EIA 310-E
IEC 60297-3
IEC/EN 60715 |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability compliance |
Yes |
| Packaging content |
| Mounting kit |
Yes |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
1.55 kg |
Features
Intellinet Adjustable 19" Rackmount DIN Rail Kit, 2U, Chassis to Mount Top Hat DIN Rail Equipment in a 19 in. Rack, Adjustable Rail Depth of 48 to 174 mm, Aluminum, Black RAL 9005. Type: Rack rail, Housing material: Aluminium, Product colour: Black. Quantity per pack: 1 pc(s). Weight: 1.3 kg
Product Description
Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet
The Adjustable 19"" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.
Tailor Your Space with Depth Adjustment
With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.
Compliant and Compatible
Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.
Durable Construction Built to Last
Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).
Everything You Need Included
We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19"" mounting straight out of the box.
