The benefits of Passive Direct Attach Copper (DAC) cable over fiber optic and RJ45 cables
The Direct Attach Copper (DAC) cable is becoming increasingly popular in the network industry. Our passive SFP+ 10G DAC Twinax cable is an energy-efficient, low-latency and cost-effective alternative to fiber optic and RJ45 cabling. It's an excellent choice for short-distance structured cabling between switches and routers on one end and servers or storage on the other, be it in Top of Rack (ToR), adjacent rack, stacking of 10GbE switches or similar applications.
Close to zero power consumption and a wide temperature range
SFP+ DAC is comprised of a twinax copper cable terminated with SFP+ connectors on both ends, which can provide an electrical connection directly into active equipment. Consuming less than 0.15 W due to its thermal design, this passive cable helps decrease your operating expenses. Its zero-heat production during operation makes it more versatile and usable in wider temperature ranges up to 70°C (158°F), which is particularly valuable in data centers.
Lower cost and simpler to deploy than fiber optics
DAC cabling has a relatively simple internal structure with fewer components than fiber cables. This cable structure helps lower the purchase price for applications in high-bandwidth data transmission and saves you from having to buy separate transceivers. This, in turn, makes DAC cables a lot simpler to deploy since there are fewer parts to match to complete setup. Used versions of this cable are also more convenient to keep on hand because you do not have to clean and inspect them before plugging them in again. When you make upgrades or replacements to your network, the cable's seamless Hot Swapping capability makes quick work of connecting new equipment (note that passive DAC cables are not suitable for long-range applications; at 7 m (23 ft.), they reach their transmission limit).
Lower latency than RJ45 twisted-pair patch cables
Like "regular" Cat6a and Cat7 copper cables, this Direct Attach Copper twinax cable supports data transfer rates up 10 Gbps, but its unique structure and signal transmission offers lower latency.
Please note: This SFP+ 10G Passive DAC Twinax Cable is designed, programmed and tested to work with switches and routers from HP®- / HPE®.
Specs
| Features |
| Cable length |
5 m |
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black, Silver |
| Jacket material |
Polyvinyl chloride (PVC) |
| InfiniBand protocol |
Yes |
| Data transfer rate |
10 Mbit/s |
| Conductor material |
Copper |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
Features

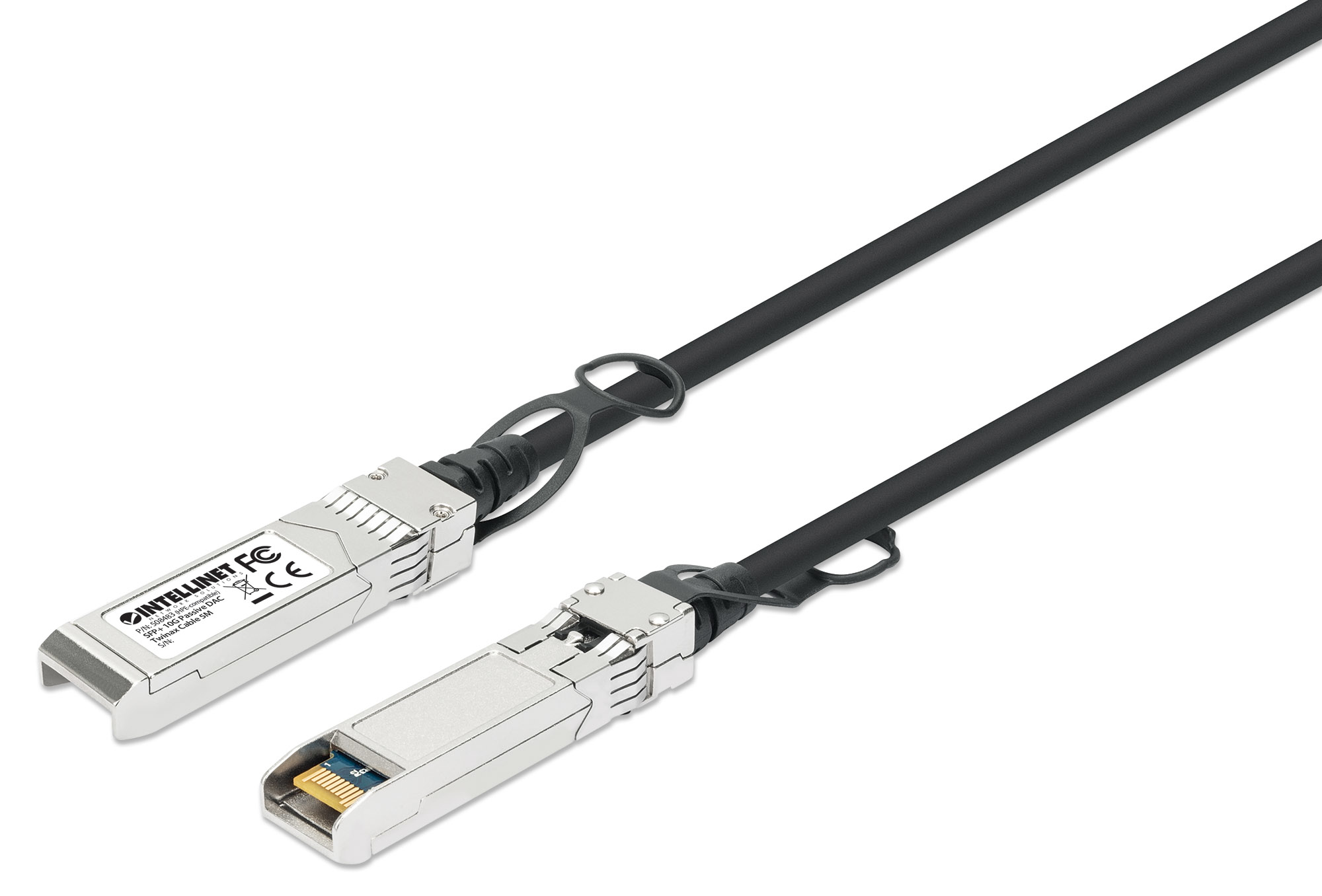

Intellinet 5m 10G SFP+ Passive Direct Attach Copper Twinax Cable 24AWG HP JG081C/ 537963-B21 compatible. Cable length: 5 m, Connector 1: SFP+, Connector 2: SFP+
Product Description
The benefits of Passive Direct Attach Copper (DAC) cable over fiber optic and RJ45 cables
The Direct Attach Copper (DAC) cable is becoming increasingly popular in the network industry. Our passive SFP+ 10G DAC Twinax cable is an energy-efficient, low-latency and cost-effective alternative to fiber optic and RJ45 cabling. It's an excellent choice for short-distance structured cabling between switches and routers on one end and servers or storage on the other, be it in Top of Rack (ToR), adjacent rack, stacking of 10GbE switches or similar applications.
Close to zero power consumption and a wide temperature range
SFP+ DAC is comprised of a twinax copper cable terminated with SFP+ connectors on both ends, which can provide an electrical connection directly into active equipment. Consuming less than 0.15 W due to its thermal design, this passive cable helps decrease your operating expenses. Its zero-heat production during operation makes it more versatile and usable in wider temperature ranges up to 70°C (158°F), which is particularly valuable in data centers.
Lower cost and simpler to deploy than fiber optics
DAC cabling has a relatively simple internal structure with fewer components than fiber cables. This cable structure helps lower the purchase price for applications in high-bandwidth data transmission and saves you from having to buy separate transceivers. This, in turn, makes DAC cables a lot simpler to deploy since there are fewer parts to match to complete setup. Used versions of this cable are also more convenient to keep on hand because you do not have to clean and inspect them before plugging them in again. When you make upgrades or replacements to your network, the cable's seamless Hot Swapping capability makes quick work of connecting new equipment (note that passive DAC cables are not suitable for long-range applications; at 7 m (23 ft.), they reach their transmission limit).
Lower latency than RJ45 twisted-pair patch cables
Like "regular" Cat6a and Cat7 copper cables, this Direct Attach Copper twinax cable supports data transfer rates up 10 Gbps, but its unique structure and signal transmission offers lower latency.
Please note: This SFP+ 10G Passive DAC Twinax Cable is designed, programmed and tested to work with switches and routers from HP®- / HPE®.
