Stock Status: 1x unit in stock

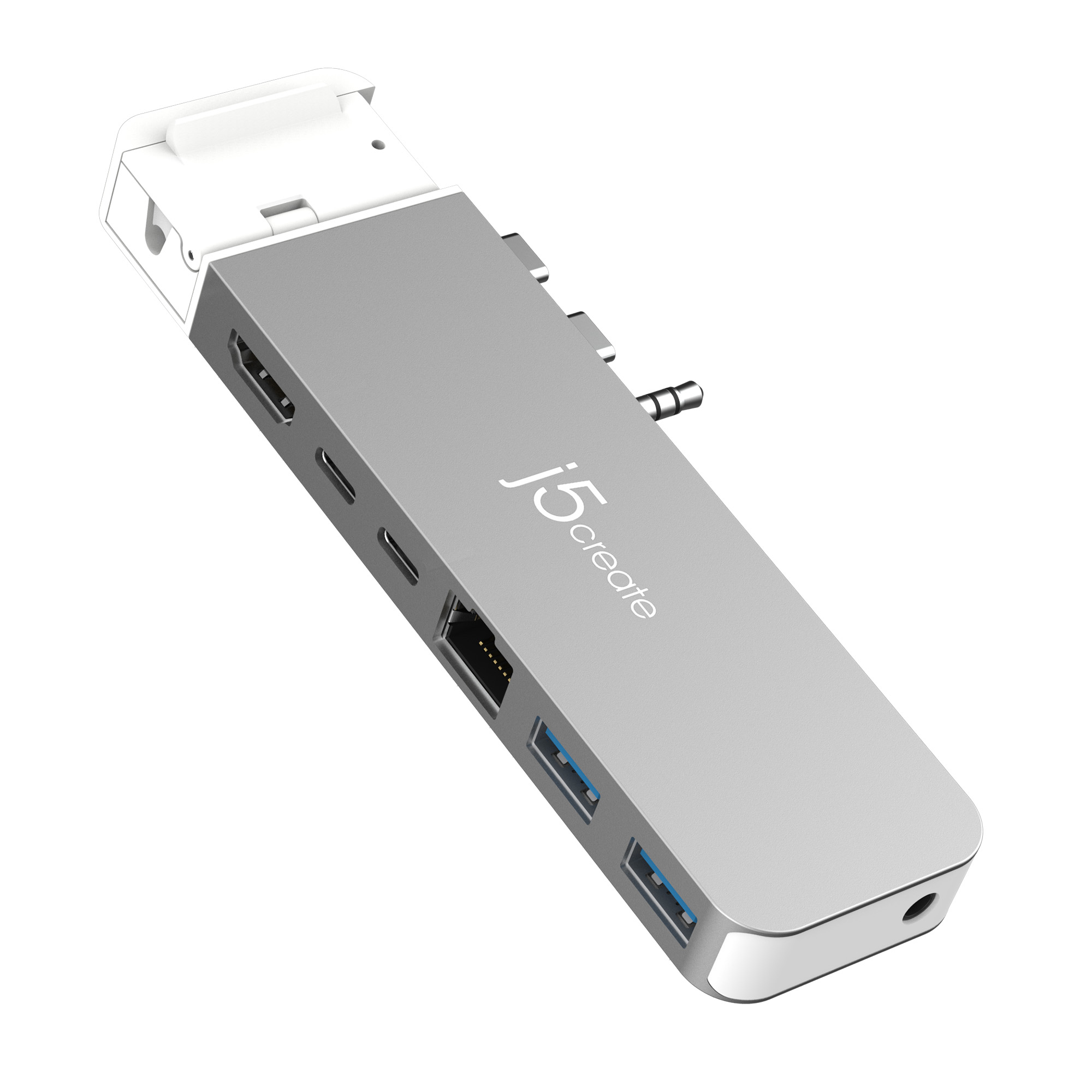

The 4K60 Elite Pro USB4® Hub with MagSafe® Kit expands your computer’s connectivity. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen 2 ports and one USB-C® port. Data transfer is quick and easy with the included Gigabit Ethernet port to access a wired network. Transfer files from one media to another with the 10Gbps USB™ connections. You can use the HDMI™ port to connect to a 4K UHD HDTV, monitor, or projector.
Equipped with a USB4® port it provides 6K60 resolution, 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected. You can connect your headphones or speakers to the audio/mic combo jack. The MagSafe® dongle is a convenient way to store your original MacBook® MagSafe® charger. For Intel® MacBook® models, the audio/mic combo jack may be removed.
Specs
| Weight & dimensions |
| Width |
139 mm |
| Depth |
52 mm |
| Height |
16 mm |
| Weight |
74 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB4 ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Input current |
5 A |
| Output voltage |
20 V |
| Output current |
5 A |
| Other features |
| Special features |
1 x USB4® port capable of the following:
1) 6K60 resolution display
2) 40Gbps data transmission
3) PD charging through up to 100W
Max Display Resolution
USB4®: 6016 x 3384
HDMI™: 3840 x 2160 |
| Contents |
1 - 4K60 Elite Pro USB4® Hub with MagSafe® Kit (JCD395) 2 - Silicone Pads 1 - Quick Installation Guide (QIG) |
| Operational conditions |
| Operating temperature (T-T) |
-1 - 41 °C |
| Storage temperature (T-T) |
-17 - 68 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
0 - 85% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Grey, White |
| Card reader integrated |
No |
| Colour name |
Space Grey / White |
| Number of displays supported |
2 |
| Maximum refresh rate |
60 Hz |
| Display modes |
Extended, Mirror, Primary display |
| Hub weight |
74 g |
| Plug and Play |
Yes |
| Country of origin |
Taiwan |
| Compatibility |
MacBook Pro® with USB-C® ports
Perfect for MacBook Pro® 2021 or later / MacBook Air® M2 |
| Technical details |
| Warranty period |
2 year(s) |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
155 mm |
| Package depth |
95 mm |
| Package height |
25 mm |
| Package weight |
141 g |
| Logistics data |
| Products per master (outer) case |
32 pc(s) |
| Master (outer) case width |
230 mm |
| Master (outer) case length |
435 mm |
| Master (outer) case height |
190 mm |
| Master (outer) case gross weight |
4.9 kg |
| Products per shipping (inner) case |
8 pc(s) |
| Export Control Classification Number (ECCN) |
EAR99 |
| Shipping (inner) case width |
10.3 cm |
| Shipping (inner) case length |
21.8 cm |
| Shipping (inner) case height |
16.5 cm |
Features
j5create JCD395 4K60 Elite Pro USB4® Hub with MagSafe® Kit. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, White, Colour name: Space Grey / White, Maximum refresh rate: 60 Hz. Input current: 5 A, Output voltage: 20 V, Output current: 5 A. Width: 139 mm, Depth: 52 mm, Height: 16 mm
Product Description
The 4K60 Elite Pro USB4® Hub with MagSafe® Kit expands your computer’s connectivity. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen 2 ports and one USB-C® port. Data transfer is quick and easy with the included Gigabit Ethernet port to access a wired network. Transfer files from one media to another with the 10Gbps USB™ connections. You can use the HDMI™ port to connect to a 4K UHD HDTV, monitor, or projector.
Equipped with a USB4® port it provides 6K60 resolution, 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected. You can connect your headphones or speakers to the audio/mic combo jack. The MagSafe® dongle is a convenient way to store your original MacBook® MagSafe® charger. For Intel® MacBook® models, the audio/mic combo jack may be removed.
