| Weight & dimensions |
| Width |
126.5 mm |
| Depth |
200 mm |
| Height |
32.6 mm |
| Weight |
70 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
1 |
| Microphone in |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power source type |
USB |
| Input current |
5 A |
| Output voltage |
20 V |
| Output current |
4.75 A |
| Packaging content |
| Packaging content |

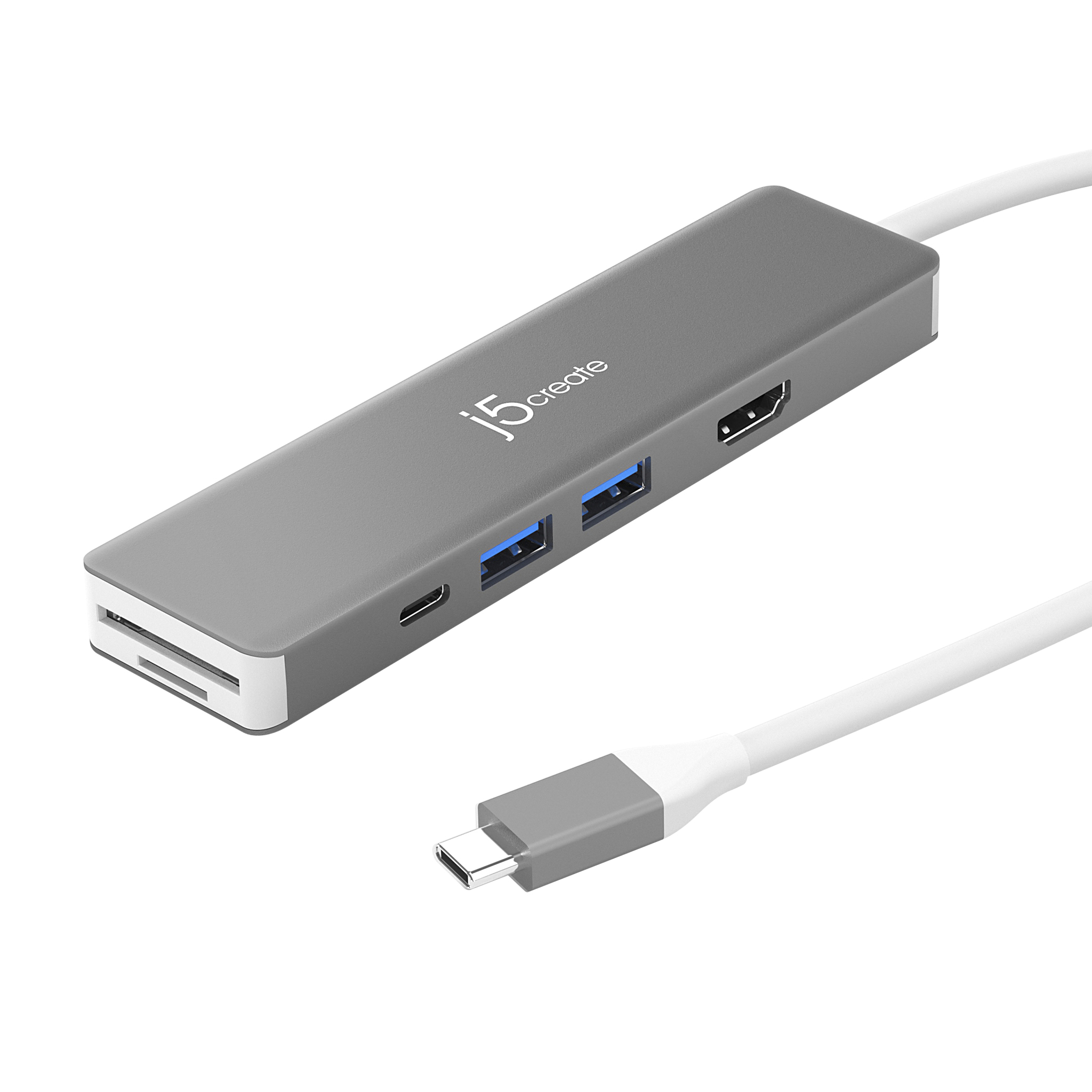

1 - JCD390 4K60 Elite USB-C® 10Gbps Multi-Adapter
1 - Quick Installation Guide (QIG) |
| Other features |
| Cable length |
0.2 m |
| Operational conditions |
| Operating temperature (T-T) |
-1 - 41 °C |
| Storage temperature (T-T) |
-17 - 68 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
0 - 85% |
| Networking |
| Ethernet LAN |
No |
| Performance |
| Product colour |
Silver, White |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Data transfer rate |
10 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
144 Hz |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Plastic |
| Country of origin |
Taiwan |
| Technical details |
| Master (outer) case GTIN (EAN/UPC) |
24712795087394 |
| Warranty period |
2 year(s) |
| Compliance certificates |
CE, REACH, RoHS |
| Software |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
190 mm |
| Package depth |
85 mm |
| Package height |
17.5 mm |
| Package weight |
120 g |
| Logistics data |
| Products per master (outer) case |
12 pc(s) |
| Master (outer) case width |
225 mm |
| Master (outer) case length |
266 mm |
| Master (outer) case height |
115 mm |
| Products per shipping (inner) case |
6 pc(s) |
| Export Control Classification Number (ECCN) |
EAR99 |
| Master (outer) case net weight |
1.9 kg |
| Shipping (inner) case width |
12.5 cm |
| Shipping (inner) case length |
21.5 cm |
| Shipping (inner) case height |
9.2 cm |
| Shipping (inner) case net weight |
800 g |
| Sustainability |
| Sustainability compliance |
Yes |
