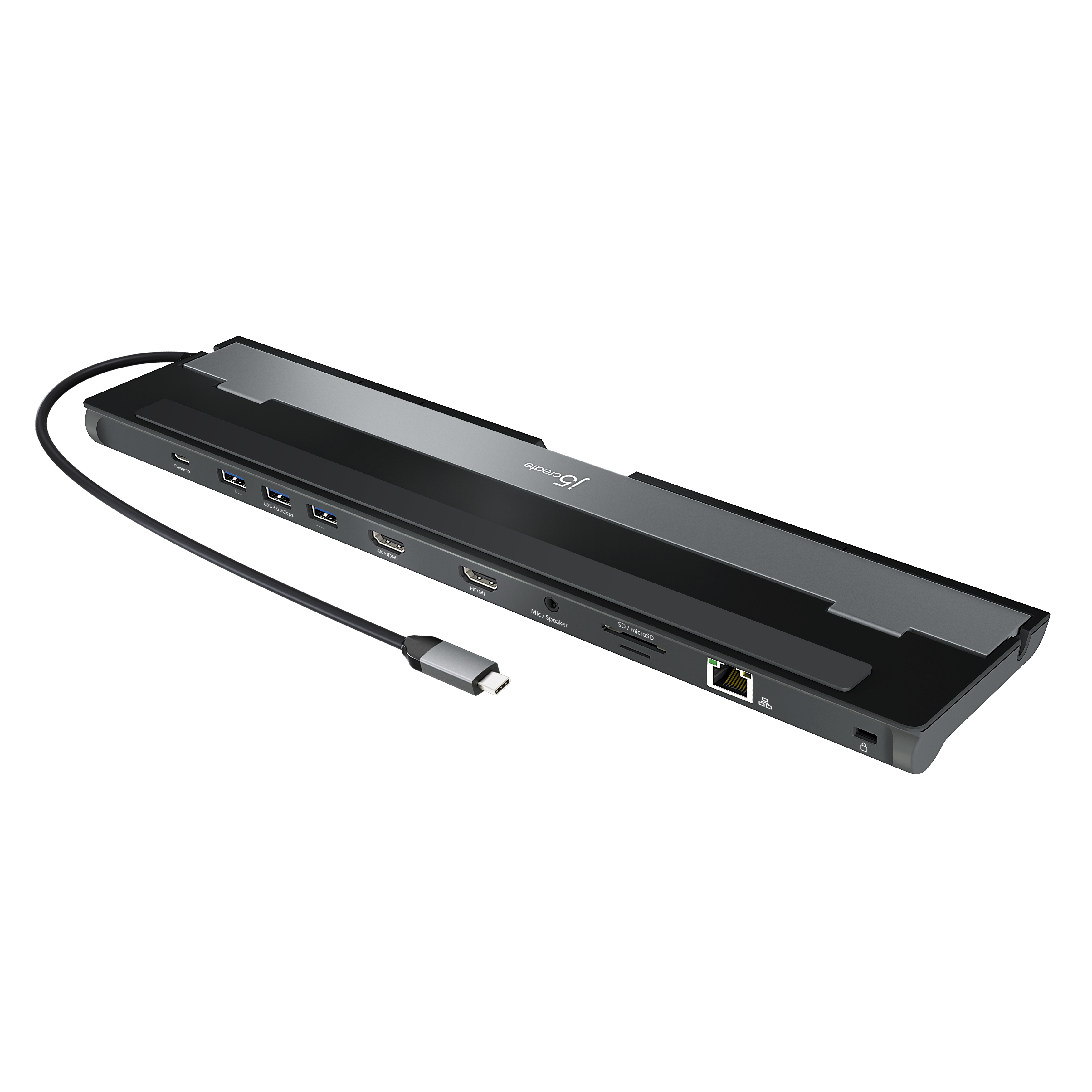

This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.
Specs
| Weight & dimensions |
| Width |
82.5 mm |
| Depth |
350.2 mm |
| Height |
22 mm |
| Weight |
307 g |
| Ports & interfaces |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| Combo headphone/mic port |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power supply type |
USB |
| Output voltage |
20 V |
| Output current |
0.9 A |
| Power consumption (typical) |
4.5 W |
| Packaging content |
| Cables included |
USB Type-C |
| Quick start guide |
Yes |
| Manual |
Yes |
| Packaging content |
1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG) |
| Other features |
| Cable length |
0.45 m |
| Maximum operating temperature |
40 °C |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 65 °C |
| Networking |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| HD type |
4K Ultra HD |
| Number of displays supported |
2 |
| Maximum refresh rate |
30 Hz |
| Hub interfaces |
3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Housing material |
Aluminium |
| Country of origin |
Taiwan |
| Technical details |
| Warranty period |
2 year(s) |
| Software |
| Windows operating systems supported |
Windows 10 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
88.3 mm |
| Package depth |
358 mm |
| Package height |
28 mm |
| Package weight |
405 g |
Features
j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Power supply type: USB, Output voltage: 20 V, Output current: 0.9 A. Windows operating systems supported: Windows 10, Mac operating systems supported: Mac OS X 10.11 El Capitan
Product Description
This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.
