Stock Status: 1x unit in stock

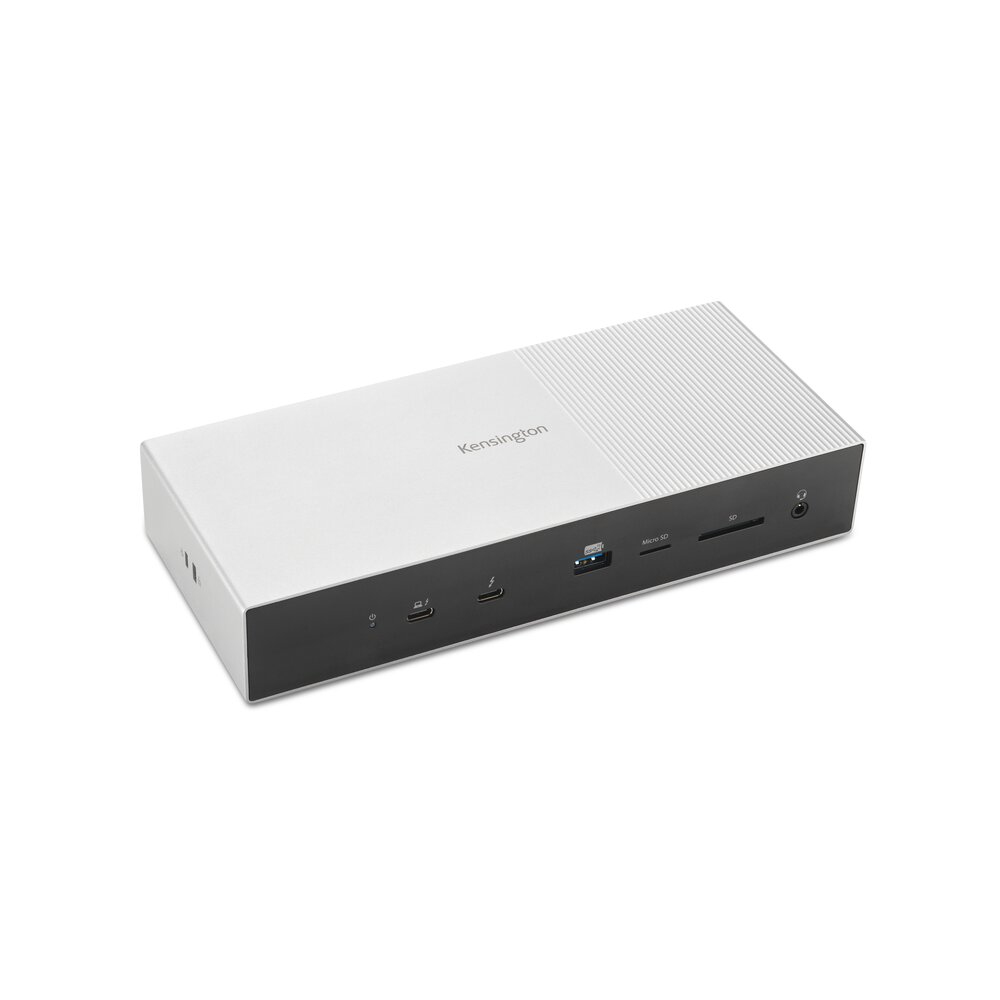

Professionals with premium laptops often struggle to unlock the full potential of their devices. For those wanting to connect multiple high-resolution displays, transfer data at high speeds, and expand connectivity without relying on adapters, the SD5000T5 Thunderbolt™ 5 Triple Video Docking Station is the ultimate powerhouse. Providing a powerful single-cable solution that helps you be more productive, it supports multiple 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for meeting the demands of high-power workstations.
Boost Your Productivity with Thunderbolt™ 5
The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Recycled Materials
Contains 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
Triple 4K or Dual 8K Support
Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz. The SD5000T5 ensures uncompromised visual quality and smooth multitasking for a high-performance workspace.
Up to 140W Power Delivery
Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.
Productive 11-in-1 Design
3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
Specs
| Weight & dimensions |
| Width |
226 mm |
| Depth |
97 mm |
| Height |
40 mm |
| Weight |
975 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 5 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| HDMI ports quantity |
0 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
140 W |
| Thunderbolt 5 ports quantity |
3 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
2.5 A |
| Output voltage |
20 V |
| Output current |
9 A |
| Packaging content |
| Warranty card |
Yes |
| Cables included |
AC, Thunderbolt |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
| Minimum system requirements |
CPU: Intel Core HX series 13th /14th+ |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating relative humidity (H-H) |
0 - 55% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| HD type |
8K Ultra HD |
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
3 |
| Maximum refresh rate |
540 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington, Nano |
| LED indicators |
Power |
| Plug and Play |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Country of origin |
China |
| Technical details |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Software |
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 15.0 Sequoia |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
264 mm |
| Package depth |
125 mm |
| Package height |
154 mm |
| Package weight |
1.9 kg |
| Logistics data |
| Products per master (outer) case |
6 pc(s) |
Features
Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 8K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro,..., Mac operating systems supported: Mac OS X 15.0 Sequoia
Product Description
Professionals with premium laptops often struggle to unlock the full potential of their devices. For those wanting to connect multiple high-resolution displays, transfer data at high speeds, and expand connectivity without relying on adapters, the SD5000T5 Thunderbolt™ 5 Triple Video Docking Station is the ultimate powerhouse. Providing a powerful single-cable solution that helps you be more productive, it supports multiple 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for meeting the demands of high-power workstations.
Boost Your Productivity with Thunderbolt™ 5
The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Recycled Materials
Contains 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
Triple 4K or Dual 8K Support
Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz. The SD5000T5 ensures uncompromised visual quality and smooth multitasking for a high-performance workspace.
Up to 140W Power Delivery
Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.
Productive 11-in-1 Design
3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
