Stock Status: 1x unit in stock

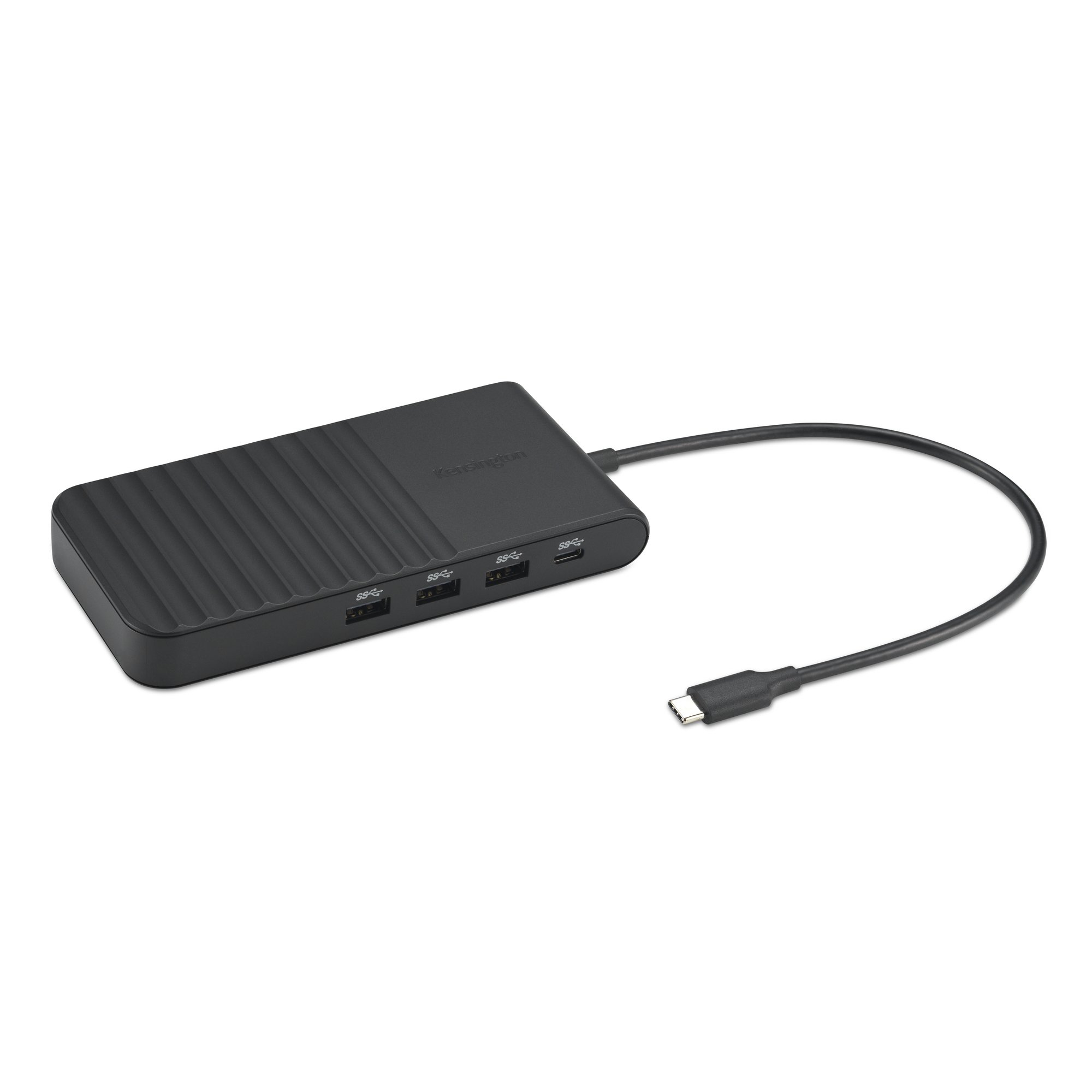

The UH1500P EQ USB-C® 5Gbps Triple Video Driverless Mobile Dock supports up to three external displays and allows you to travel with less weight and clutter. Universally compatible with USB-C® based devices (Thunderbolt™ 4, USB4® and USB-C® Alt Mode), this plug-and-play solution supports up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices. The 9-in-1 design delivers three video connections (2 x HDMI® and 1 x DP), 5 x USB ports (3 x USB-A and 2 x USB-C®) and one Gigabit Ethernet port. UH1500P supports up to 85W power pass-through using your laptop’s USB-C® power adapter or battery for charging. The plastic in this product contains up to 60% post-consumer recycled (PCR) content* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. Compatible with Kensington DockWorks™ software** and includes a 2-year limited warranty.
*Does not include cable.
**Available for Windows only.
Specs
| Weight & dimensions |
| Width |
150 mm |
| Depth |
71 mm |
| Height |
21 mm |
| Weight |
154 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
85 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| HDCP |
Yes |
| HDCP version |
2.3 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power source type |
USB |
| USB cable length |
0.17 m |
| Packaging content |
| Warranty card |
Yes |
| Quick start guide |
Yes |
| Other features |
| Compatible operating systems |
Samsung DeX®; iPadOS 13 or above; Windows 10 or above; macOS 11 or above |
| Special features |
EQ |
| USB ports quantity |
4 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Performance |
| Product colour |
Black |
| Card reader integrated |
No |
| Data transfer rate |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Plug and Play |
Yes |
| Country of origin |
China |
| Technical details |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Software |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mobile operating systems supported |
iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
35 mm |
| Package depth |
180 mm |
| Package height |
130 mm |
| Package weight |
180 g |
| Logistics data |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
185 mm |
| Master (outer) case length |
360 mm |
| Master (outer) case height |
135 mm |
| Master (outer) case gross weight |
2 kg |
| Master (outer) case net weight |
2 kg |
Features
Kensington UH1500P EQ USB-C 5Gbps Triple Video Driverless Mobile Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, USB cable length: 0.17 m. Mobile operating systems supported: iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5
Product Description
The UH1500P EQ USB-C® 5Gbps Triple Video Driverless Mobile Dock supports up to three external displays and allows you to travel with less weight and clutter. Universally compatible with USB-C® based devices (Thunderbolt™ 4, USB4® and USB-C® Alt Mode), this plug-and-play solution supports up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices. The 9-in-1 design delivers three video connections (2 x HDMI® and 1 x DP), 5 x USB ports (3 x USB-A and 2 x USB-C®) and one Gigabit Ethernet port. UH1500P supports up to 85W power pass-through using your laptop’s USB-C® power adapter or battery for charging. The plastic in this product contains up to 60% post-consumer recycled (PCR) content* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. Compatible with Kensington DockWorks™ software** and includes a 2-year limited warranty.
*Does not include cable.
**Available for Windows only.
