Stock Status: 1x unit in stock

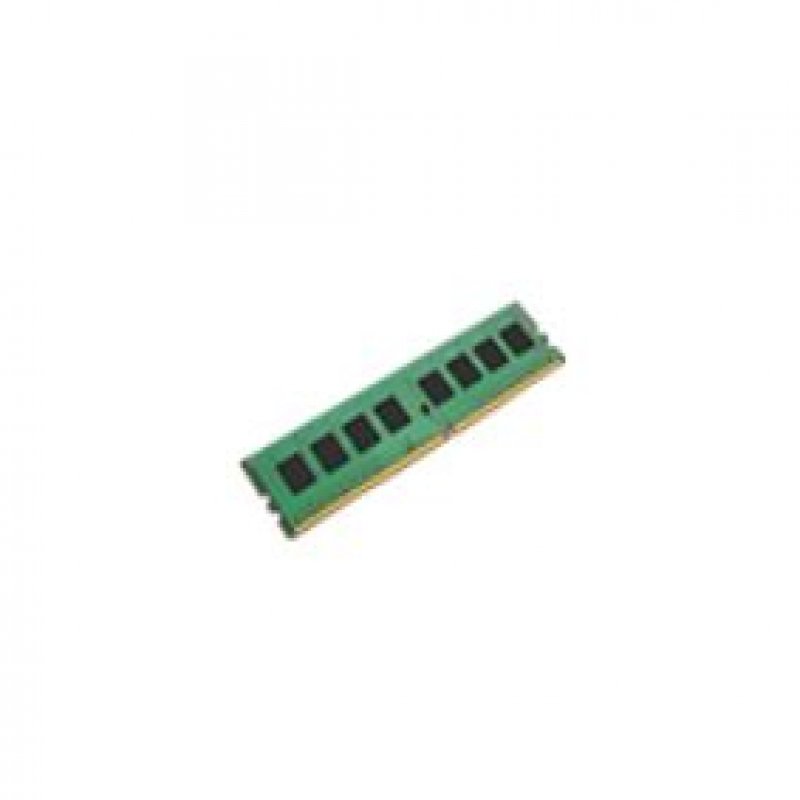

This document describes ValueRAM's KVR26N19S6/8 is a 1G x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Specs
| Weight & dimensions |
| Width |
133.3 mm |
| Height |
31.2 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 85 °C |
| Storage temperature (T-T) |
-55 - 100 °C |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Features |
| Internal memory |
8 GB |
| Memory layout (modules x size) |
1 x 8 GB |
| Internal memory type |
DDR4 |
| Memory data transfer rate |
2666 MT/s |
| Component for |
PC/Server |
| Memory form factor |
288-pin DIMM |
| ECC |
No |
| Buffered memory type |
Unregistered (unbuffered) |
| CAS latency |
19 |
| Memory ranking |
1 |
| Memory voltage |
1.2 V |
| Row cycle time |
45.75 ns |
| Refresh row cycle time |
350 ns |
| Row active time |
32 ns |
| SPD profile |
Yes |
| JEDEC standard |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Doesn't contain |
Halogen |
Features
Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 19
Product Description
This document describes ValueRAM's KVR26N19S6/8 is a 1G x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
