Stock Status: 1x unit in stock

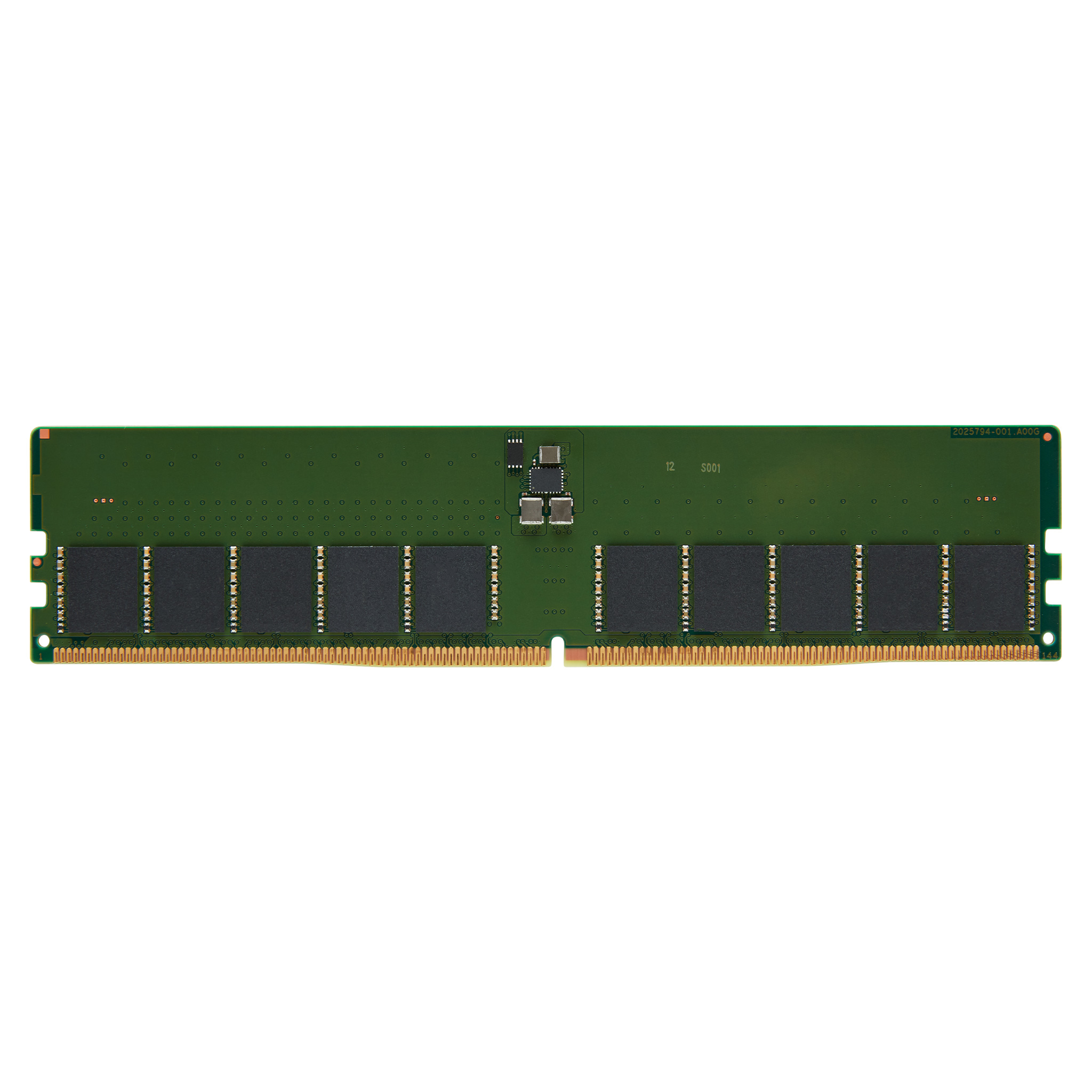

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specs
| Weight & dimensions |
| Width |
133.3 mm |
| Height |
31.2 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 95 °C |
| Storage temperature (T-T) |
-55 - 100 °C |
| Other features |
| Doesn't contain |
Halogen |
| Features |
| Internal memory |
32 GB |
| Memory layout (modules x size) |
1 x 32 GB |
| Internal memory type |
DDR5 |
| Memory data transfer rate |
5600 MT/s |
| Component for |
Server |
| Memory form factor |
288-pin DIMM |
| ECC |
Yes |
| On-Die ECC |
Yes |
| CAS latency |
46 |
| Buffered memory type |
Unregistered (unbuffered) |
| Memory ranking |
2 |
| Memory voltage |
1.1 V |
| Module configuration |
4096M x 72 |
| Row cycle time |
48 ns |
| Refresh row cycle time |
295 ns |
| Row active time |
32 ns |
| Row Precharge Time (TRP) |
16 |
| SPD profile |
Yes |
| Programming power voltage (VPP) |
1.8 V |
| Product colour |
Black, Green |
| Lead plating |
Gold |
| JEDEC standard |
Yes |
| Sustainability |
| Compliance certificates |
RoHS |
| Sustainability compliance |
Yes |
Features
Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green
Product Description
Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
