Stock Status: 1x unit in stock

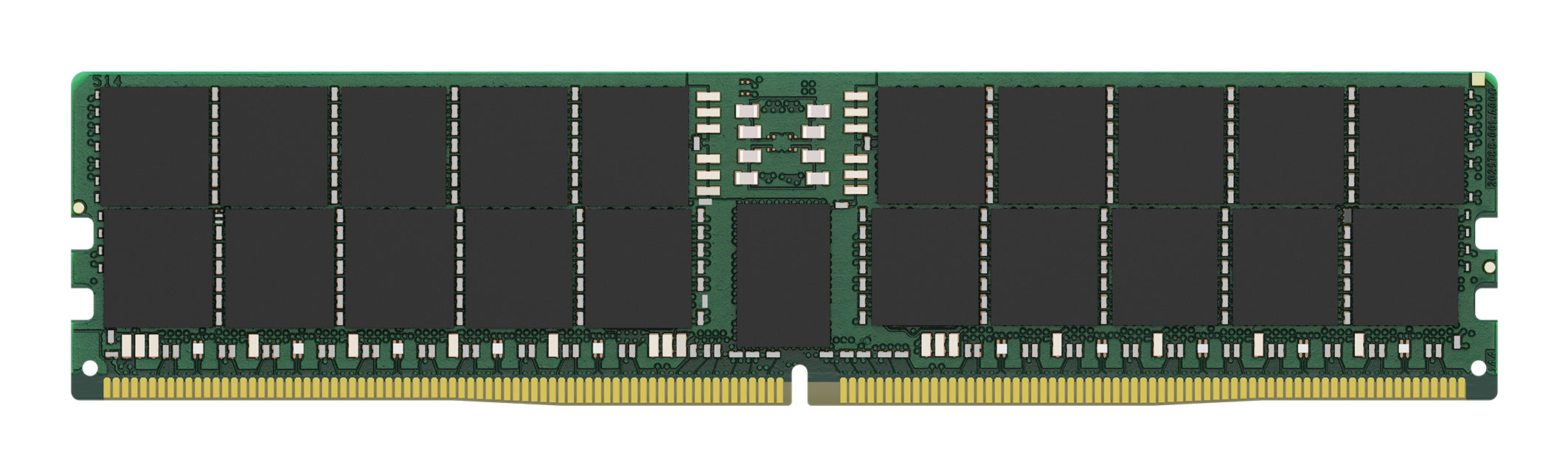

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specs
| Weight & dimensions |
| Width |
133.3 mm |
| Height |
31.2 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 95 °C |
| Storage temperature (T-T) |
-55 - 100 °C |
| Other features |
| Chips organisation |
1Rx8 |
| Doesn't contain |
Halogen |
| Features |
| Internal memory |
16 GB |
| Memory layout (modules x size) |
1 x 16 GB |
| Internal memory type |
DDR5 |
| Memory data transfer rate |
6400 MT/s |
| Component for |
Server |
| Memory form factor |
288-pin DIMM |
| ECC |
Yes |
| On-Die ECC |
No |
| CAS latency |
52 |
| Buffered memory type |
Registered (buffered) |
| Memory ranking |
1 |
| Memory voltage |
1.1 V |
| Row cycle time |
48 ns |
| Refresh row cycle time |
295 ns |
| Row active time |
32 ns |
| Row Precharge Time (TRP) |
16 |
| SPD profile |
Yes |
| Programming power voltage (VPP) |
1.8 V |
| Lead plating |
Gold |
| JEDEC standard |
Yes |
| Sustainability |
| Compliance certificates |
RoHS |
Features
Kingston Technology 64GB DDR5 6400MT/s ECC Registered DIMM. Component for: Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52, ECC
Product Description
Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
