Stock Status: 1x unit in stock

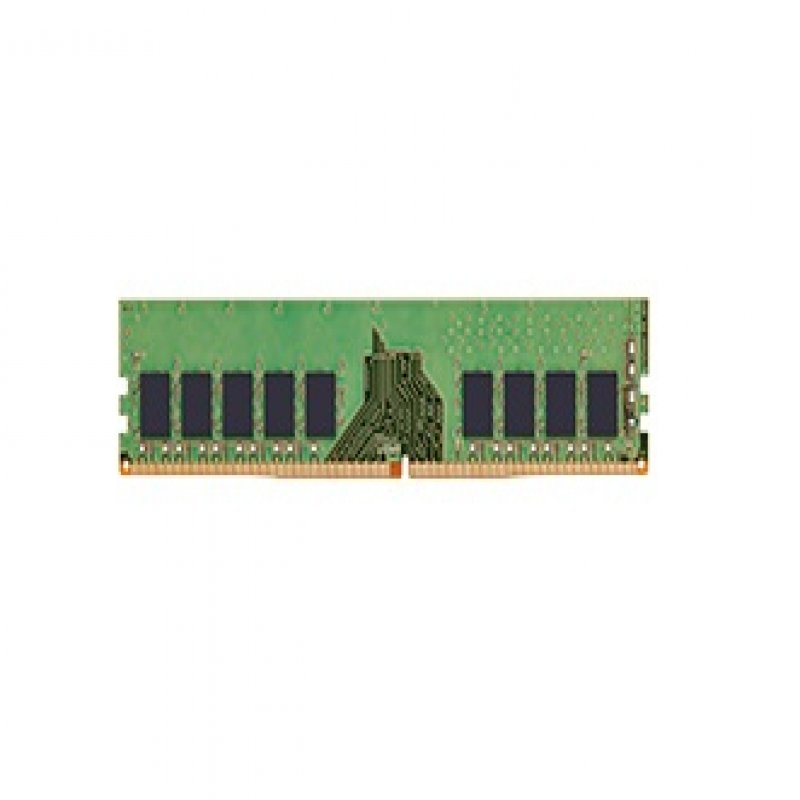

Kingston's KSM32ES8/16MF is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Specs
| Weight & dimensions |
| Width |
133.3 mm |
| Height |
31.2 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 85 °C |
| Storage temperature (T-T) |
-55 - 100 °C |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Features |
| Internal memory |
16 GB |
| Memory layout (modules x size) |
1 x 16 GB |
| Internal memory type |
DDR4 |
| Memory data transfer rate |
3200 MT/s |
| Component for |
PC/Server |
| Memory form factor |
288-pin DIMM |
| ECC |
Yes |
| Buffered memory type |
Unregistered (unbuffered) |
| CAS latency |
22 |
| Memory ranking |
1 |
| Memory voltage |
1.2 V |
| Module configuration |
2048M x 72 |
| Row cycle time |
45.75 ns |
| Refresh row cycle time |
350 ns |
| Row active time |
32 ns |
| SPD profile |
Yes |
| Programming power voltage (VPP) |
2.5 V |
| Lead plating |
Gold |
| JEDEC standard |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Doesn't contain |
Halogen |
Features
Kingston Technology KSM32ES8/16MF. Component for: PC/Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC
Product Description
Kingston's KSM32ES8/16MF is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
