Stock Status: 1x unit in stock

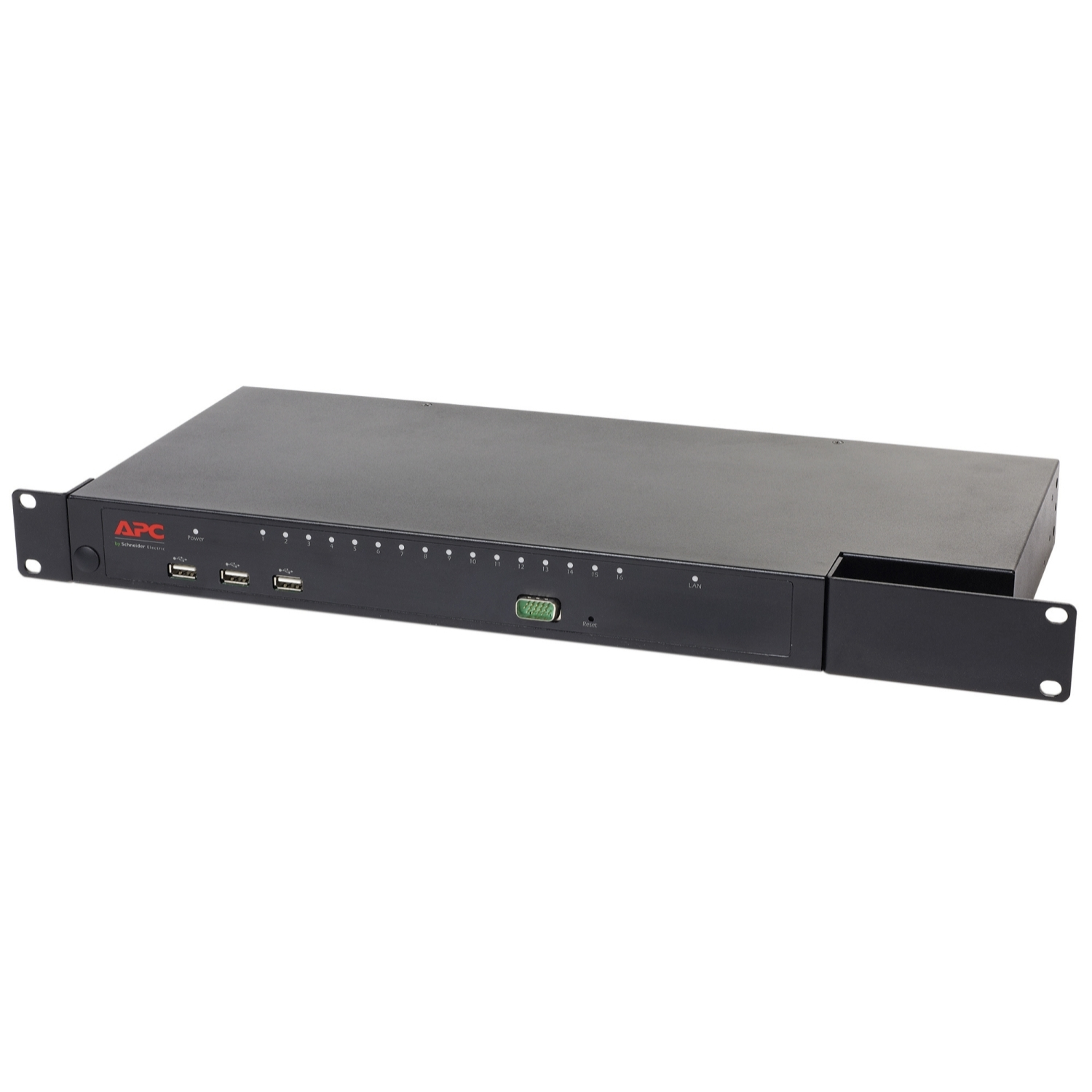

The APC KVM 2G Digital/IP Switch supports one remote and one local user, with sixteen ports and virtual media. It is a 1U rack-mountable device. It supports various input voltages and frequencies, and includes a CD with software, installation guide and rack-mount brackets.
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Specs
| Ports & interfaces |
| Number of computers controlled |
16 |
| Keyboard port type |
PS/2 |
| Mouse port type |
PS/2 |
| Video port type |
VGA |
| VGA (D-Sub) ports quantity |
1 |
| Weight & dimensions |
| Width |
424 mm |
| Depth |
188 mm |
| Height |
43 mm |
| Weight |
2.59 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| AC input frequency |
50 - 60 Hz |
| Display |
| Built-in display |
No |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Certification |
C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Packaging data |
| Package width |
619 mm |
| Package depth |
330 mm |
| Package height |
146 mm |
| Package weight |
3.99 kg |
| Sustainability |
| Compliance certificates |
RoHS |
Features
APC KVM1116R. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Product colour: Black, Rack capacity: 1U, Certification: C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE. AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS. Width: 424 mm, Depth: 188 mm, Height: 43 mm
Product Description
The APC KVM 2G Digital/IP Switch supports one remote and one local user, with sixteen ports and virtual media. It is a 1U rack-mountable device. It supports various input voltages and frequencies, and includes a CD with software, installation guide and rack-mount brackets.
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
