Stock Status: 1x unit in stock

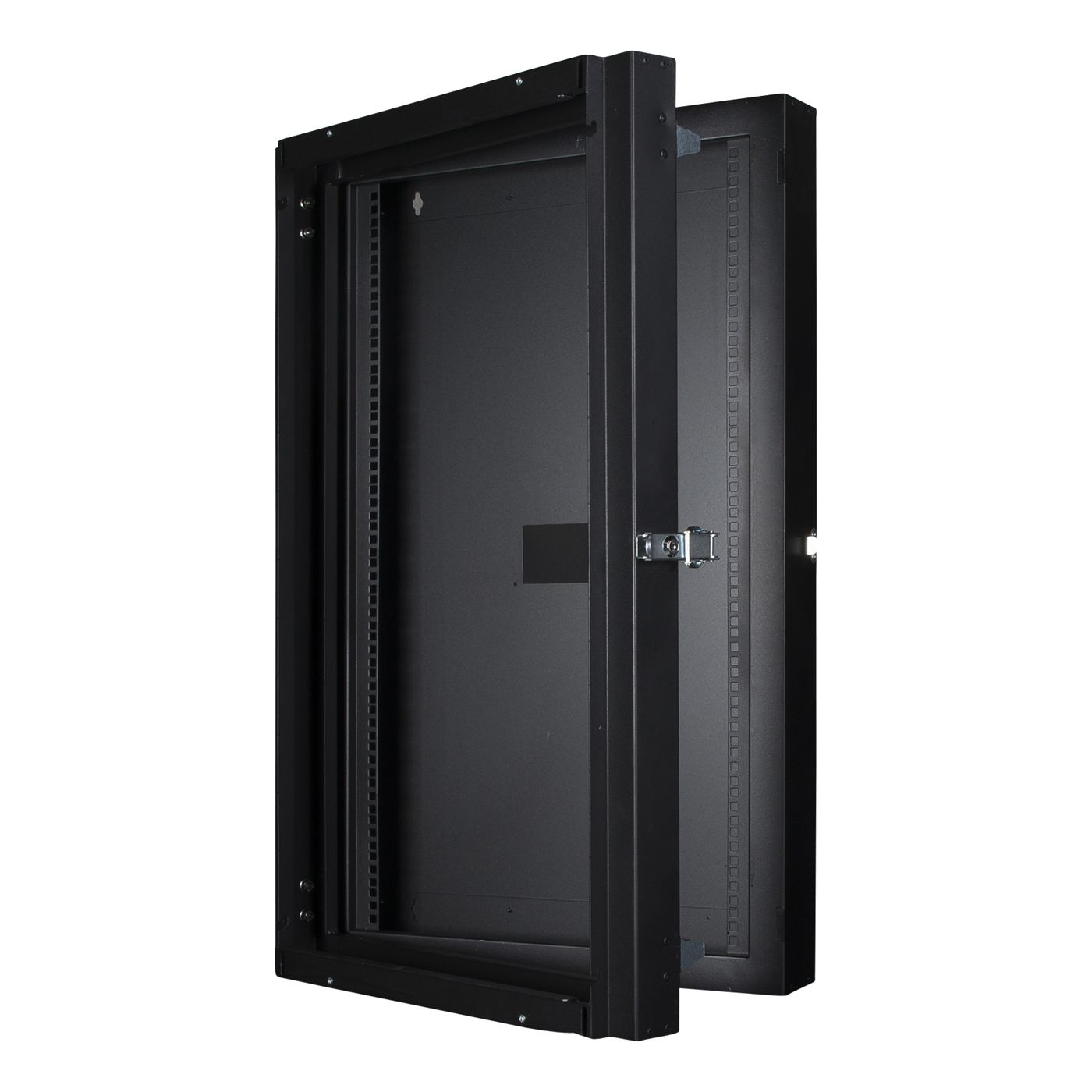

LOGON PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 20U
Weight(kg): 22
Product dimensions WxDxH(mm): 600x150x986
Ah Wall mounting hole gaps(mm): 700
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.
Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.
By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.
While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.
By this means ease of installation and maintenance is provided.
Package dimensions(mm): 655x200x835
Product Description
LOGON PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 20U
Weight(kg): 22
Product dimensions WxDxH(mm): 600x150x986
Ah Wall mounting hole gaps(mm): 700
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.
Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.
By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.
While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.
By this means ease of installation and maintenance is provided.
Package dimensions(mm): 655x200x835
