Stock Status: 1x unit in stock
Product Dimensions: W:600 x D:600 x H:423mm
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.
Specs
| Weight & dimensions |
| Size (imperial) |
48.3 cm (19") |
| Width |
600 mm |
| Depth |
600 mm |
| Height |
423 mm |
| Weight |
20.5 kg |
| Other features |
| Dimensions (WxDxH) |
600 x 600 x 423 mm |
| Features |
| Rack capacity |
7U |
| Type |
Wall mounted rack |
| Product colour |
White |
| Material |
Glass |
| Frame type |
Closed |
| Front door construction |
Glass/Steel |
| Side panel construction |
Steel |
| Removable back door |
No |
| Removable side panels |
No |
| Key lock |
Yes |
| Front door key lock |
Yes |
| Rack rails |
Yes |
| Cooling type |
Passive |
| Soundproof |
No |
| Mounting hole shape |
Square |
| Castor wheels |
No |
| Assembly required |
Yes |
| International Protection (IP) code |
IP20 |
| Preassembled |
No |
| Cable entry point |
Yes |
| Packaging data |
| Package width |
640 mm |
| Package depth |
640 mm |
| Package height |
200 mm |
| Package weight |
21.1 kg |
Features

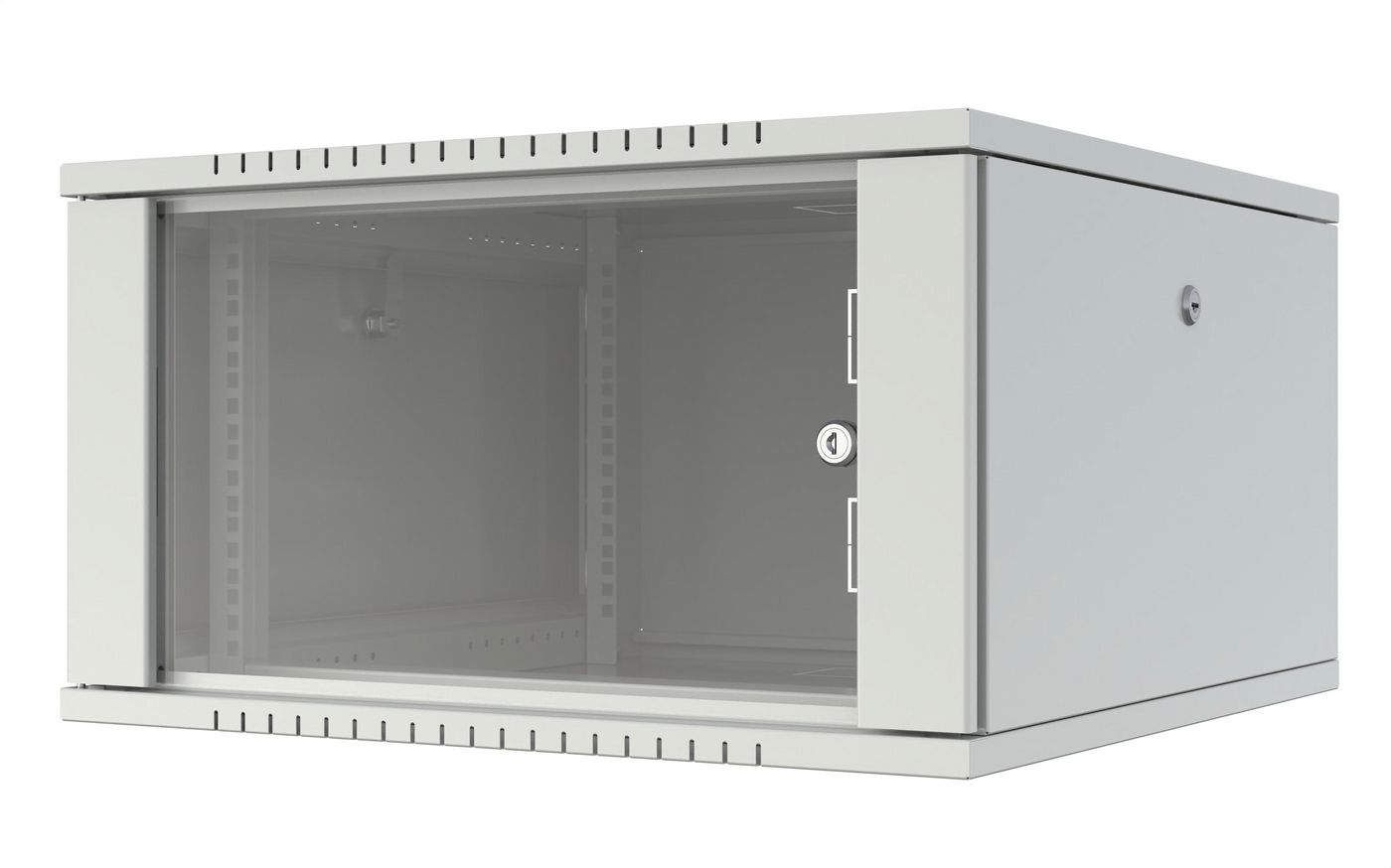

Lanview RWF07U66WH. Type: Wall mounted rack, Rack capacity: 7U, Key lock, Rack rails, International Protection (IP) code: IP20, Assembly required. Weight: 20.5 kg. Product colour: White
Product Description
Product Dimensions: W:600 x D:600 x H:423mm
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.
