Stock Status: 1x unit in stock

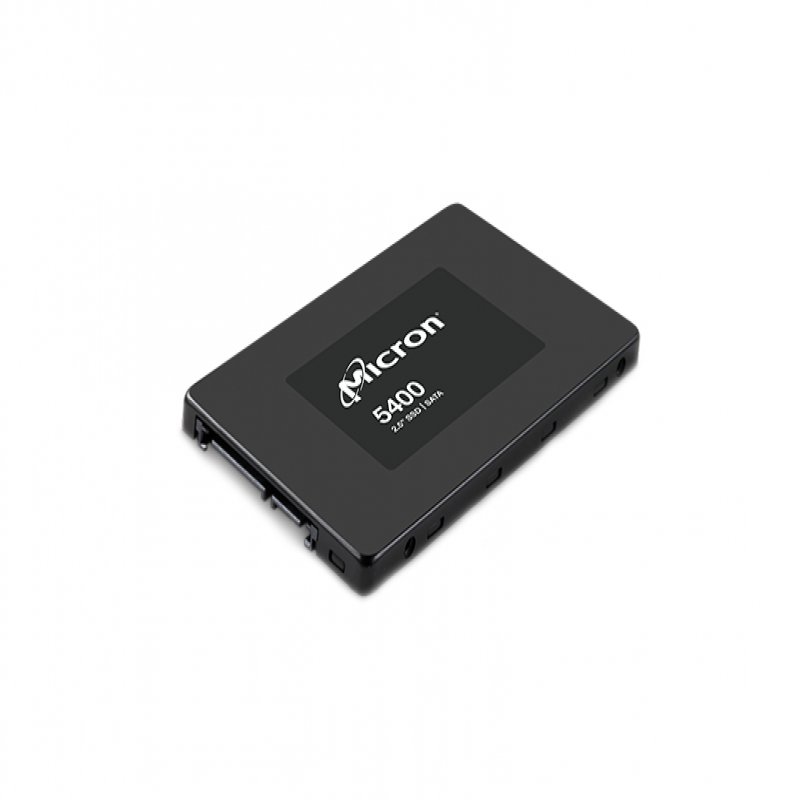

The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
Specs
| Weight & dimensions |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
7 mm |
| Weight |
70 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Non-operating shock |
1500 G |
| Power |
| Power consumption (read) |
2.5 W |
| Power consumption (write) |
3.1 W |
| Other features |
| Compatible products |
ThinkSystem |
| Features |
| SSD capacity |
480 GB |
| SSD form factor |
2.5" |
| Interface |
Serial ATA III |
| Memory type |
3D TLC NAND |
| Component for |
Server/workstation |
| Random read (4KB) |
95000 IOPS |
| Random write (4KB) |
37000 IOPS |
| Read latency |
170 µs |
| Write latency |
42 µs |
| S.M.A.R.T. support |
Yes |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
3000000 h |
| Certification |
Micron Green Standard
Built with sulfur resistant resistors
CE (Europe): EN 55032 Class B, RoHS
UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
FCC: CFR Title 47, Part 15 Class B
UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edi |
Features
Lenovo 4XB7A82259. SSD capacity: 480 GB, SSD form factor: 2.5", Component for: Server/workstation
Product Description
The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
