Stock Status: 1x unit in stock
One machine to connect you with the world.
Multitask with multiple devices.

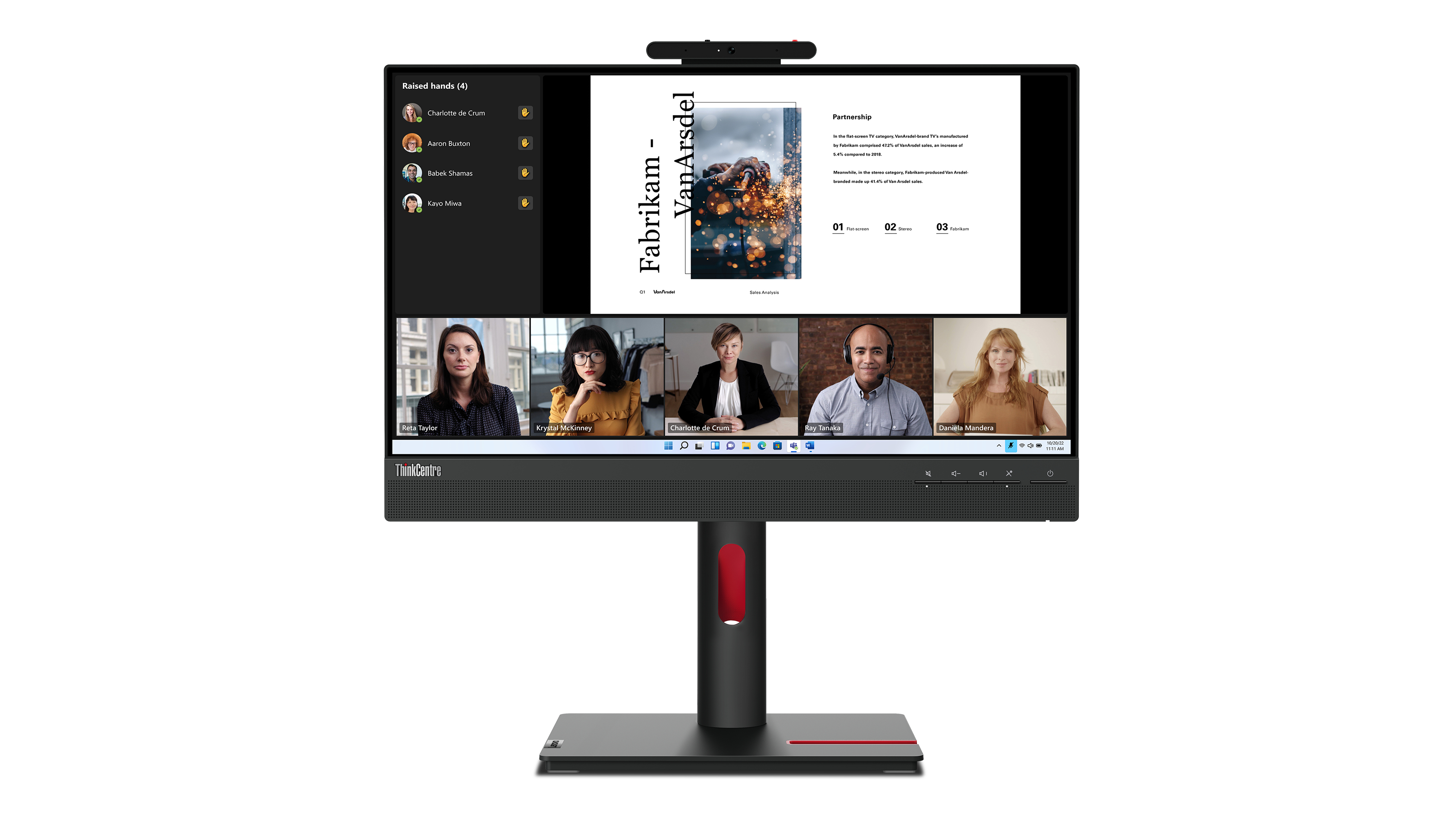

The ThinkCentre Tiny-In-One (TIO) 22 Gen 5 is an all-rounder with its 21.5-inch FHD In-Plane Switching panel which provides an immersive video calling experience. This Modular design of the monitor makes it compatible with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen, and gives a complete working experience when paired with its VoIP features. This can be installed on your monitor effortlessly and housed on the back of the monitor in a dedicated slot, making your desk cable-free. The classic installation mechanism ensures you have a consistent experience, allowing you to easily and quickly mount last-gen Tiny PCs on the monitor. Designed to be a powerful VoIP machine, this monitor is enhanced with features that make video conferencing a great experience. During online meetings, the 1080p RGB webcam and integrated noise-cancellation microphone produce exceptionally clear audio and video. TIO 22 Gen 5 also has a Smart Traffic Light indicator that alerts everyone in the vicinity to an ongoing meeting, letting you remain focused. If remaining focused and staying in the conversation is of importance to you, then the two built-in 3W speakers ensure that the audio from meetings is always clear and crisp. Easily manage VoIP calls with one toggle to change the volume or mute the call using the dedicated VoIP buttons. Your privacy is in your hands with the
ThinkShutter, which allows you to cover the camera when not in its use. Lenovo takes care of the environment with green packaging and optional CO2 offset service for zero to minimal carbon emission. In addition to Tiny PCs, this monitor can also be easily connected to other notebooks, towers using the HDMI and DP ports, and to other peripherals using the USB ports. With the ThinkColour software1, customize the screen’s attributes, create screen profiles, and easily switch between them as per your work preference. Protects your eyes from harmful blue light without any color distortion during long
hours of screen time with the Natural Low Blue Light technology. The TIO 22 Gen 5 is the perfect option if you’re looking for a clean and clutter-free setup to maximize productivity and enjoy an efficient, all-in-one experience.
Specs
| Weight & dimensions |
| Width (with stand) |
489.3 mm |
| Depth (with stand) |
207.6 mm |
| Height (with stand) |
512.3 mm |
| Weight (with stand) |
5.5 kg |
| Width (without stand) |
489.3 mm |
| Depth (without stand) |
72.8 mm |
| Height (without stand) |
339.1 mm |
| Weight (without stand) |
3.2 kg |
| Bezel width (side) |
2 mm |
| Bezel width (top) |
2 mm |
| Bezel width (bottom) |
4.6 cm |
| Power |
| Power consumption (typical) |
13.4 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (max) |
33 W |
| Power consumption (off) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power supply type |
External |
| Display |
| Display diagonal |
54.6 cm (21.5") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LED |
| Touchscreen |
No |
| HD type |
Full HD |
| Panel type |
IPS |
| Response time |
6 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| Display number of colours |
16.7 million colours |
| LED backlight |
Yes |
| Backlight type |
W-LED |
| Display brightness (typical) |
250 cd/m² |
| Anti-glare screen |
Yes |
| Contrast ratio (dynamic) |
3000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Response time (fast) |
4 ms |
| Pixel pitch |
0.248 x 0.248 mm |
| Pixel density |
102 ppi |
| Viewable size, horizontal |
47.6 cm |
| Viewable size, vertical |
26.8 cm |
| Colour depth |
8 bit |
| Colour gamut standard |
sRGB |
| Colour gamut |
99% |
| sRGB coverage (typical) |
99% |
| Ports & interfaces |
| Built-in USB hub |
Yes |
| HDMI |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
1 |
| Number of USB Type-B upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| Ergonomics |
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Height adjustment |
15.5 cm |
| Panel mounting interface |
100 x 100 mm |
| Cable management |
Yes |
| Cable lock slot type |
Kensington |
| Pivot |
Yes |
| Pivot angle |
-5 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt angle range |
-5 - 23.5° |
| On Screen Display (OSD) |
Yes |
| Other features |
| Compatible operating systems |
Windows 10, Windows 11 |
| Warranty period |
3 year(s) |
| Certification |
EU Energy Label (D-class)
ENERGY STAR® Certified
EPEAT™ Gold Registered
TCO Certified 9.0
TCO edge 2.0
Volatile Organic Compound Certification
RoHS compliant
Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort |
| Design |
| Product colour |
Black |
| Performance |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Low Blue Light technology |
Yes |
| Multimedia |
| Built-in speaker(s) |
Yes |
| Built-in camera |
Yes |
| Number of speakers |
2 |
| RMS rated power |
6 W |
| Built-in microphone |
Yes |
| Packaging data |
| Package width |
568 mm |
| Package depth |
176 mm |
| Package height |
422 mm |
| Package weight |
8.1 kg |
| Packaging content |
| Stand included |
Yes |
| Cables included |
AC |
| Power adapter included |
Yes |
| Quick start guide |
Yes |
| Power cable length |
1 m |
Features
Lenovo ThinkCentre Tiny-In-One 22. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Product Description
One machine to connect you with the world.
Multitask with multiple devices.
The ThinkCentre Tiny-In-One (TIO) 22 Gen 5 is an all-rounder with its 21.5-inch FHD In-Plane Switching panel which provides an immersive video calling experience. This Modular design of the monitor makes it compatible with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen, and gives a complete working experience when paired with its VoIP features. This can be installed on your monitor effortlessly and housed on the back of the monitor in a dedicated slot, making your desk cable-free. The classic installation mechanism ensures you have a consistent experience, allowing you to easily and quickly mount last-gen Tiny PCs on the monitor. Designed to be a powerful VoIP machine, this monitor is enhanced with features that make video conferencing a great experience. During online meetings, the 1080p RGB webcam and integrated noise-cancellation microphone produce exceptionally clear audio and video. TIO 22 Gen 5 also has a Smart Traffic Light indicator that alerts everyone in the vicinity to an ongoing meeting, letting you remain focused. If remaining focused and staying in the conversation is of importance to you, then the two built-in 3W speakers ensure that the audio from meetings is always clear and crisp. Easily manage VoIP calls with one toggle to change the volume or mute the call using the dedicated VoIP buttons. Your privacy is in your hands with the
ThinkShutter, which allows you to cover the camera when not in its use. Lenovo takes care of the environment with green packaging and optional CO2 offset service for zero to minimal carbon emission. In addition to Tiny PCs, this monitor can also be easily connected to other notebooks, towers using the HDMI and DP ports, and to other peripherals using the USB ports. With the ThinkColour software1, customize the screen’s attributes, create screen profiles, and easily switch between them as per your work preference. Protects your eyes from harmful blue light without any color distortion during long
hours of screen time with the Natural Low Blue Light technology. The TIO 22 Gen 5 is the perfect option if you’re looking for a clean and clutter-free setup to maximize productivity and enjoy an efficient, all-in-one experience.
