Stock Status: 1x unit in stock

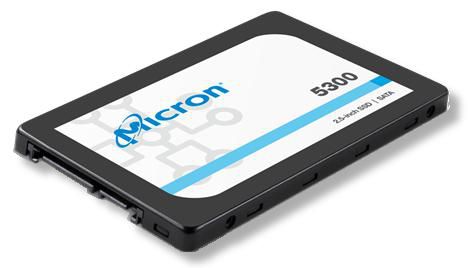

The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.
This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
Specs
| Weight & dimensions |
| Weight |
70 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power consumption (read) |
2.5 W |
| Power consumption (write) |
3.1 W |
| Other features |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
| Features |
| SSD capacity |
480 GB |
| SSD form factor |
2.5" |
| Interface |
Serial ATA III |
| NVMe |
No |
| Memory type |
3D TLC NAND |
| Component for |
Server/workstation |
| Hardware encryption |
Yes |
| Security algorithms |
256-bit AES |
| Data transfer rate |
6 Gbit/s |
| Read speed |
540 MB/s |
| Write speed |
460 MB/s |
| Random read (4KB) |
95 IOPS |
| Random write (4KB) |
60 IOPS |
| Read latency |
175 µs |
| Write latency |
100 µs |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
3000000 h |
Features
Lenovo 4XB7A17088. SSD capacity: 480 GB, SSD form factor: 2.5", Read speed: 540 MB/s, Write speed: 460 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Product Description
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.
This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
