Stock Status: 1x unit in stock

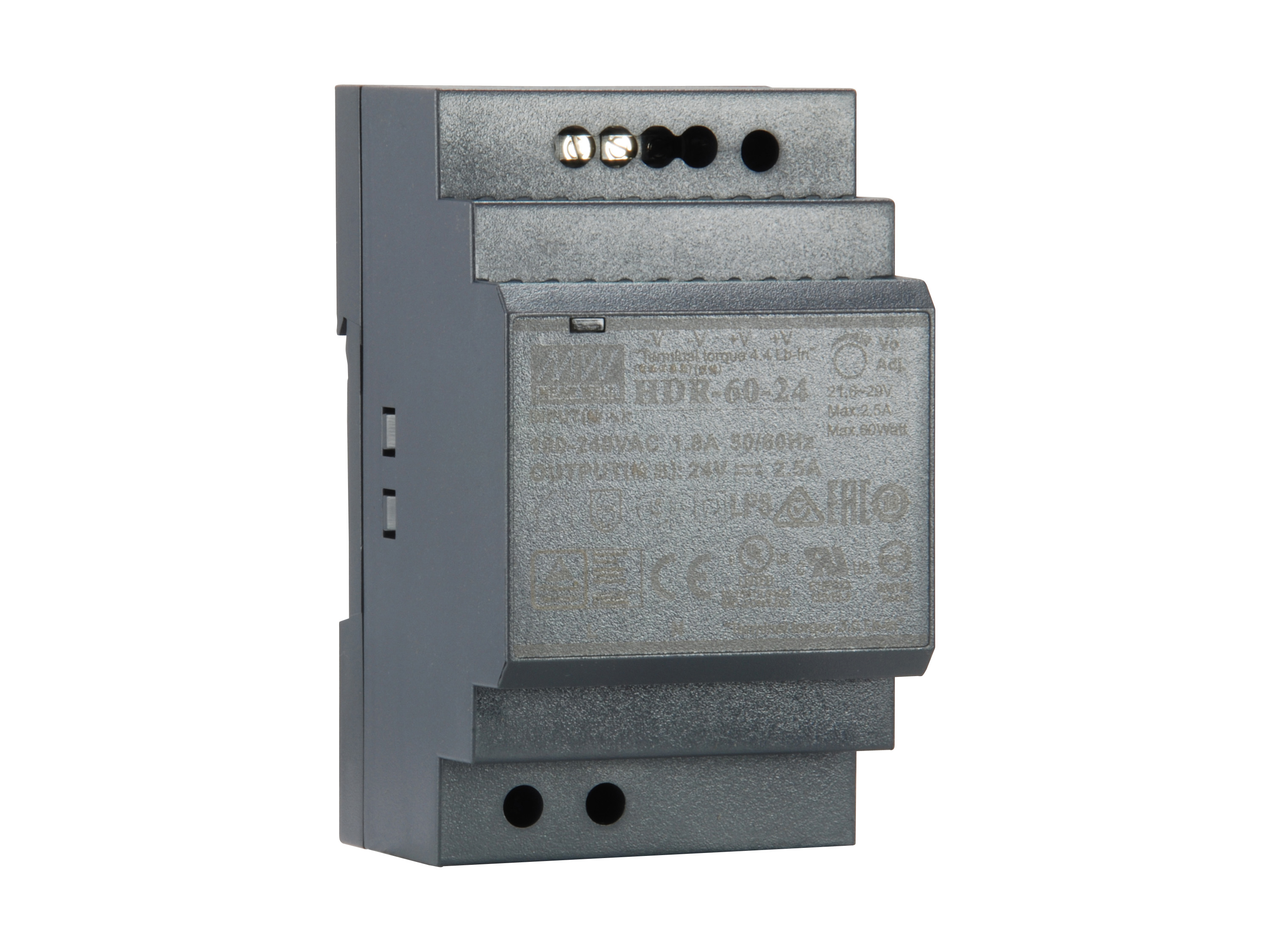

The POW-2421 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -30 to 70 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment.
Specs
| Power |
| Total power |
60 W |
| AC input voltage |
85 - 264 V |
| Peak power |
60 W |
| Power protection features |
Over voltage, Overload, Short circuit |
| Operational conditions |
| Operating temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
| Width |
90 mm |
| Depth |
54.5 mm |
| Height |
52.5 mm |
| Weight |
60 kg |
| Ports & interfaces |
| Peripheral (Molex) power connectors (4-pin) |
0 |
| Packaging data |
| Package width |
90 mm |
| Package depth |
54.5 mm |
| Package height |
52.5 mm |
| Package weight |
60 kg |
| Other features |
| Maximum current |
2.5 A |
| Technical features |
24V DC Out |
| Performance |
| Mean time between failures (MTBF) |
927600 h |
| Design |
| Product colour |
Black |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Country of origin |
China |
| Safety regulation & standards |
| Safety |
UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, ,BSMI CNS14336-1 aEAC TPTC 004pproved; Design refer to TUV EN60950-1 |
Features
LevelOne 24V DC Industrial Power Supply, 60W, DIN-Rail. Total power: 60 W, AC input voltage: 85 - 264 V, Peak power: 60 W. Mean time between failures (MTBF): 927600 h. Product colour: Black. Safety: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, ,BSMI CNS14336-1 aEAC TPTC 004pproved; Design.... Width: 90 mm, Depth: 54.5 mm, Height: 52.5 mm
Product Description
The POW-2421 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -30 to 70 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment.
