Stock Status: 1x unit in stock

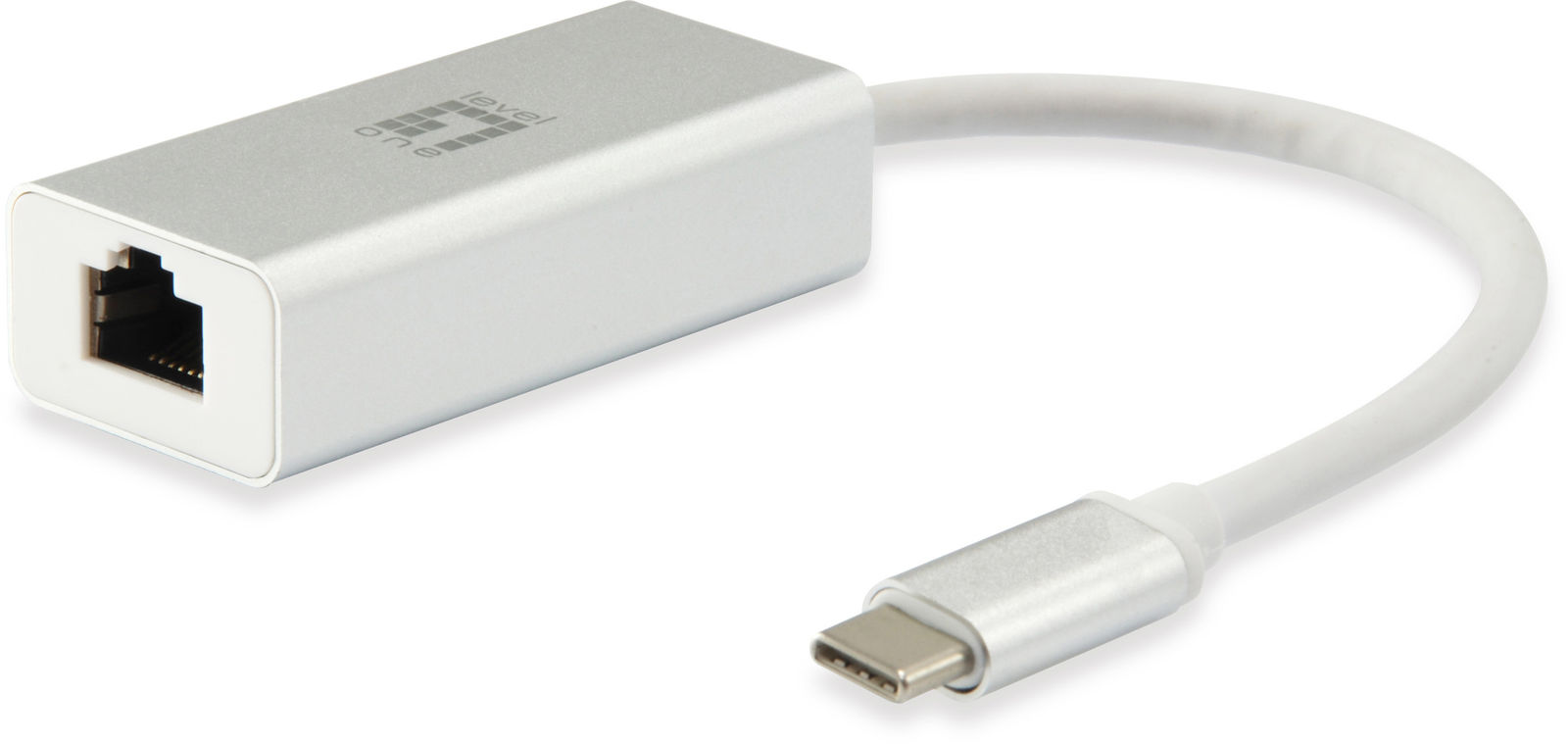

The LevelOne USB-0402 Gigabit USB-C Network Adapter allows you to connect to the internet easily through the built-in USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0402 easily does the job, all through your USB-C port.
The USB-0402 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps.
This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
This makes the USB-0402 the best choice for reliability, efficiency and standard compliance.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Wake-on-LAN ready |
Y |
| Auto MDIX IEEE |
Y |
| Full duplex |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Supported network protocols |
IPv4/IPv6 |
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks |
| Weight & dimensions |
| Width |
23.5 mm |
| Depth |
16.5 mm |
| Height |
245 mm |
| Weight |
24.5 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB Type-C |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Operational conditions |
| Operating temperature (T-T) |
10 - 50 °C |
| Storage temperature (T-T) |
-20 - 45 °C |
| Storage relative humidity (H-H) |
20 - 75% |
| Power |
| Input current |
3 A |
| Output voltage |
5 V |
| Power consumption (typical) |
2 W |
| USB powered |
Y |
| Other features |
| Flow control support |
Y |
| Design |
| Internal |
N |
| Component for |
PC/notebook |
| Product colour |
Silver |
| Country of origin |
China |
| Certification |
CE |
| Packaging data |
| Package width |
85 mm |
| Package depth |
22 mm |
| Package height |
158 mm |
| Package weight |
54.5 g |
| Packaging content |
| Resource CD |
Y |
| Quick installation guide |
Y |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
LevelOne USB-0402 Gigabit USB-C Network Adapter. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Silver
Product Description
The LevelOne USB-0402 Gigabit USB-C Network Adapter allows you to connect to the internet easily through the built-in USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0402 easily does the job, all through your USB-C port.
The USB-0402 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps.
This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
This makes the USB-0402 the best choice for reliability, efficiency and standard compliance.
