Stock Status: 1x unit in stock
Simple Set-up & Customization
The LG webOS smart signage platform supports HTML5 as a web-based platform and offers SDK (Software Development Kit), so SIs can easily build and execute their own apps. Also, it is easy to use with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one menu.
Embedded Content Management
The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signages via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.
Multi Screen Mode
PBP (Picutre-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 2 divided split screen on landscape or portrait display format. This gives great flexibility to users to allocate space for each content source.
Video Streaming
SM5KE series can play real-time streaming content by supporting various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast. It makes users feel easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts in real time.
Real-time Promotion
With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Wireless Access Point
The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.
Quick Web Access via Proxy Server
Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.
Secured Network Communication
HTTPS protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on digital signages, so owners can protect their critical business assets from unwelcome pirates.
Thermal Printer Supported
Users can easily enable the thermal printer solution by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
Real-time Care Service
The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
Specs
| Weight & dimensions |
| Width |
1238 mm |
| Depth |
54 mm |
| Height |
714.9 mm |
| Weight |
17.5 kg |
| Display |
| Display diagonal |
139.7 cm (55") |
| Display technology |
LCD |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
450 cd/m² |
| HD type |
Full HD |
| Touchscreen |
N |
| Native aspect ratio |
16:9 |
| Response time |
12 ms |
| Contrast ratio (typical) |
1100:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
50000 h |
| Packaging data |
| Package width |
1330 mm |
| Package depth |
170 mm |
| Package height |
807 mm |
| Package weight |
21.7 kg |
| Audio |
| Built-in speaker(s) |
Y |
| Power |
| Power consumption (typical) |
115 W |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
135 kWh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| DVI port |
Y |
| USB port |
Y |
| Ethernet LAN |
Y |
| Wi-Fi |
Y |
| HDMI input ports quantity |
3 |
| DVI-D ports quantity |
1 |
| USB ports quantity |
1 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232C |
Y |
| Remote (IR) input |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Other features |
| Quick start guide |
Y |
| Audio input |
Y |
| Audio output |
Y |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Y |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.8 cm |
| Bezel width (side) |
1.19 cm |
| Bezel width (top) |
1.19 cm |
| Anti-glare screen |
Y |
| Performance |
| Purpose |
Retail |
| Picture-in-Picture |
Y |
| Operating hours (hours/days) |
24/7 |
| Computer system |
| Computer system |
Y |
| Internal memory |
8 GB |
| Operating system installed |
Web OS |
| Packaging content |
| Remote control included |
Y |
| Batteries included |
Y |
| Cables included |
AC, HDMI |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
Features

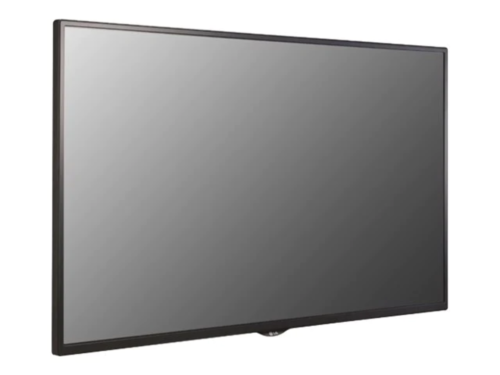

LG 55SM5KE-B. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Web OS. Product colour: Black
Product Description
Simple Set-up & Customization
The LG webOS smart signage platform supports HTML5 as a web-based platform and offers SDK (Software Development Kit), so SIs can easily build and execute their own apps. Also, it is easy to use with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one menu.
Embedded Content Management
The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signages via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.
Multi Screen Mode
PBP (Picutre-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 2 divided split screen on landscape or portrait display format. This gives great flexibility to users to allocate space for each content source.
Video Streaming
SM5KE series can play real-time streaming content by supporting various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast. It makes users feel easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts in real time.
Real-time Promotion
With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Wireless Access Point
The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.
Quick Web Access via Proxy Server
Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.
Secured Network Communication
HTTPS protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on digital signages, so owners can protect their critical business assets from unwelcome pirates.
Thermal Printer Supported
Users can easily enable the thermal printer solution by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
Real-time Care Service
The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
