Display content with ultra-realistic detail in vibrant colors
QMD Series SMART Signage delivers four times the FHD resolution on the same screen area, resulting in the most accurate recreation of details possible. Even small text is super-crisp without blurring due to its high pixel density. Samsung's upscaling technology adjusts lower resolution content to optimally display on the UHD resolution QMD Series screens. Plus, the QMD Series supports DisplayPort® (DP) 1.2 connectivity, which is capable of streaming UHD video at a refresh rate of 60 Hz. This higher refresh rate ensures seamless video playback without choppiness, which is often observed on conventional displays with a lower 30 Hz refresh rate, for a true UHD viewing experience. The QMD Series also provides more vivid images thanks to its high-gloss screens and Samsung’s advanced display technology.
Enhance efficiency by displaying content from four FHD screens on a single UHD display
With the QMD Series you can deliver more information using a smaller number of units by displaying the equivalent of four FHD content screens on a single UHD screen. This feature includes the ability to display content from four separate input devices on the same screen without the need to first merge the content on a separate PC for simplified content management. And no special third-party components are required. Various Picture-in-Picture (PIP) and split-screen scenarios are possible for more dynamic and efficient display usage, such as displaying a videoconference on a large part of the screen along with reference documents from a different device on another part of the screen. Or retailers can display a large product image next to a specifications list right on the same screen. By using a single screen in place of multiple ones, the complexity of installation is eliminated for enhanced efficiency. In addition, QMD Series SMART Signage is equipped with three DPs (1.2*2, 1.1*1), three High-Definition Multimedia Interface® (HDMI) ports, DVI ports and one D-sub port for added flexibility.
Increase usability with flexible configurations and 16/7 operation
The QMD Series has been engineered to meet the demands of traditional commercial environments with 16/7 reliability and flexible features for enhanced viewing. Features include the pivot mode, which enables you to install the displays in a landscape or portrait orientation to suit your environment while still delivering the impactful qualities of digital signage. And the sleek, modern design of the displays fits into virtually any business environment, enhancing the ambiance.
Create a streamlined display area with Samsung’s detachable SBB option
Because UHD is relatively new to the commercial market, few media players currently support UHD streaming. To meet this demand, Samsung plans to introduce an optional UHD-capable set-back box (SBB) in the late third quarter of 2014. The small-sized SBB is designed to attach to the back of the QMD Series displays, simplifying installation and eliminating unnecessary wire clutter and the need for a separate media player housing. This high-performance SBB features an embedded Haswell 4th Generation Intel® Core™ i5 CPU with a 4 GB DDR3 memory and comes with Samsung MagicInfo® software for easy content management.
Specs
Weight & dimensions |
Width |
1903.4 mm |
Depth |
105.1 mm |
Height |
905 mm |
Weight |
55.5 kg |
Display |
Display diagonal |
2.16 m (85") |
Display type |
LED |
Display resolution |
3840 x 2160 pixels |
Display brightness |
500 cd/m² |
HD type |
4K Ultra HD |
Touchscreen |
No |
Native aspect ratio |
16:9 |
Response time |
6 ms |
LED backlighting type |
Direct-LED BLU |
Contrast ratio (typical) |
5000:1 |
Viewing angle, horizontal |
178° |
Viewing angle, vertical |
178° |
Display number of colours |
16.78 million colours |
Pixel pitch |
0.1625 x 0.1625 mm |
Active display area (W x H) |
1053 x 1872 mm |
Colour gamut |
72% |
Display technology |
LED |
Packaging data |
Package width |
2050 mm |
Package depth |
472 mm |
Package height |
1265 mm |
Package weight |
71.4 kg |
Audio |
Built-in speaker(s) |
Yes |
Number of built-in speakers |
2 |
RMS rated power |
30 W |
Power |
Power consumption (typical) |
375 W |
Power consumption (standby) |
0.5 W |
Power consumption (sleep) |
0.5 W |
Power consumption (off) |
0.5 W |
Energy efficiency class |
B |
Annual energy consumption |
409 kWh |
AC input voltage |
100 - 240 V |
AC input frequency |
50 - 60 Hz |
Power consumption (max) |
495 W |
Ports & interfaces |
HDMI ports quantity |
3 |
DVI port |
Yes |
VGA (D-Sub) input ports |
1 |
DisplayPorts quantity |
3 |
USB port |
No |
Ethernet LAN |
No |
HDMI input ports quantity |
3 |
DVI-D ports quantity |
1 |
Audio (L/R) in |
1 |
Audio (L/R) out |
1 |
Operational conditions |
Operating temperature (T-T) |
0 - 40 °C |
Operating relative humidity (H-H) |
10 - 80% |
Other features |
Quick start guide |
Yes |
Power consumption (max) |
495 W |
Peak luminance ratio |
81% |
DisplayPort version |
1.2 |
Bezel width |
1.32 cm |
Plug and Play |
Yes |
Annual energy consumption |
409 kWh |
Energy efficiency class (old) |
B |
Design |
Design |
Digital signage flat panel |
Product colour |
Black |
VESA mounting |
Yes |
Panel mounting interface |
600 x 400 mm |
Bezel width (bottom) |
1.93 cm |
Product design |
Digital signage flat panel |
Performance |
Operating hours (hours/days) |
16/7 |
Technical details |
Sustainability certificates |
ENERGY STAR |
Computer system |
Computer system |
No |
Certificates |
Energy Star certified |
Y |
Certification |
Class A, 60950-1 |
Packaging content |
Handheld remote control |
Y |
Batteries included |
Yes |
Cables included |
AC, DisplayPort |
Warranty card |
Yes |
Remote control included |
Yes |
Features

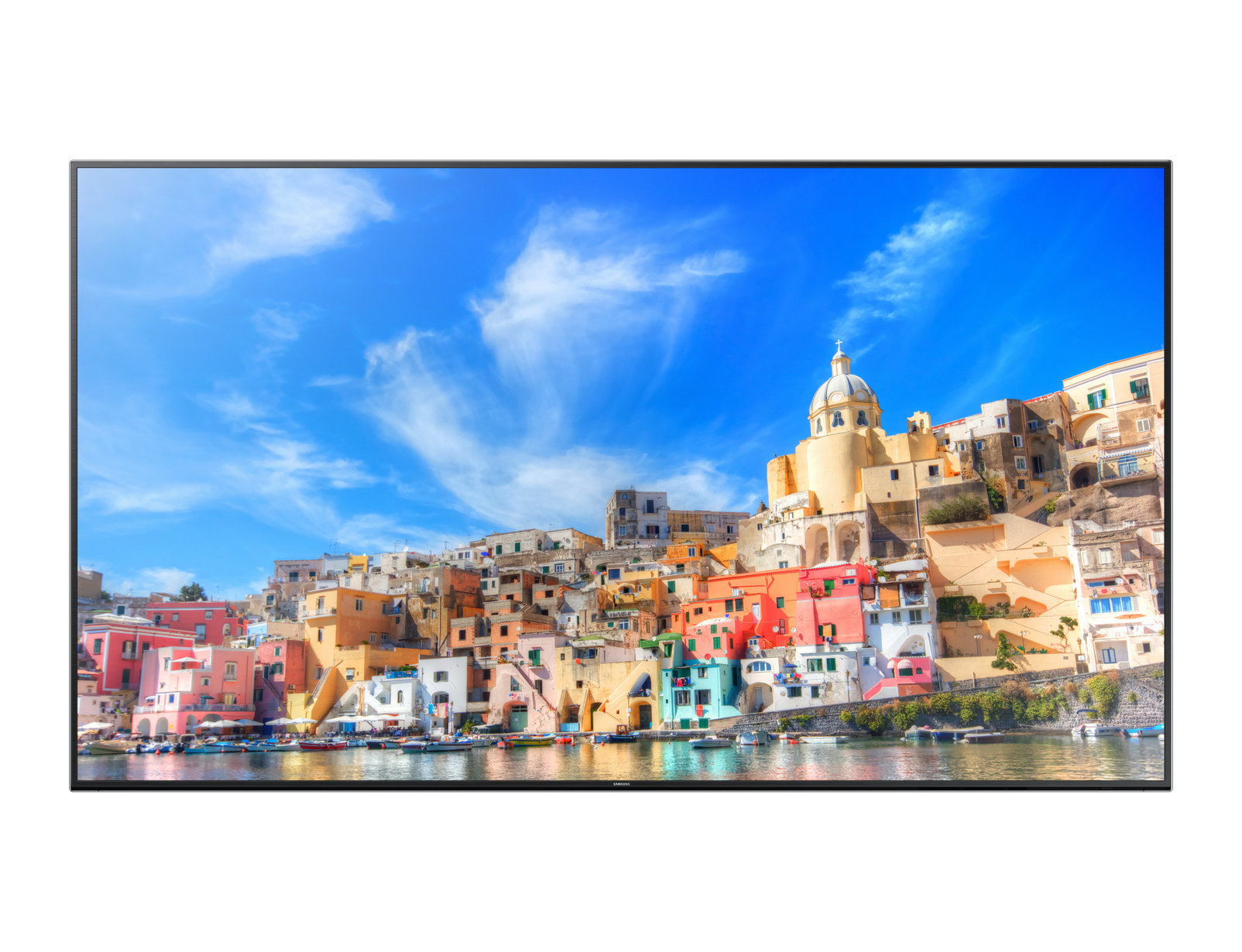

Samsung QM85D. Product design: Digital signage flat panel. Display diagonal: 2.16 m (85"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 16/7. Product colour: Black
Product Description
Display content with ultra-realistic detail in vibrant colors
QMD Series SMART Signage delivers four times the FHD resolution on the same screen area, resulting in the most accurate recreation of details possible. Even small text is super-crisp without blurring due to its high pixel density. Samsung's upscaling technology adjusts lower resolution content to optimally display on the UHD resolution QMD Series screens. Plus, the QMD Series supports DisplayPort® (DP) 1.2 connectivity, which is capable of streaming UHD video at a refresh rate of 60 Hz. This higher refresh rate ensures seamless video playback without choppiness, which is often observed on conventional displays with a lower 30 Hz refresh rate, for a true UHD viewing experience. The QMD Series also provides more vivid images thanks to its high-gloss screens and Samsung’s advanced display technology.
Enhance efficiency by displaying content from four FHD screens on a single UHD display
With the QMD Series you can deliver more information using a smaller number of units by displaying the equivalent of four FHD content screens on a single UHD screen. This feature includes the ability to display content from four separate input devices on the same screen without the need to first merge the content on a separate PC for simplified content management. And no special third-party components are required. Various Picture-in-Picture (PIP) and split-screen scenarios are possible for more dynamic and efficient display usage, such as displaying a videoconference on a large part of the screen along with reference documents from a different device on another part of the screen. Or retailers can display a large product image next to a specifications list right on the same screen. By using a single screen in place of multiple ones, the complexity of installation is eliminated for enhanced efficiency. In addition, QMD Series SMART Signage is equipped with three DPs (1.2*2, 1.1*1), three High-Definition Multimedia Interface® (HDMI) ports, DVI ports and one D-sub port for added flexibility.
Increase usability with flexible configurations and 16/7 operation
The QMD Series has been engineered to meet the demands of traditional commercial environments with 16/7 reliability and flexible features for enhanced viewing. Features include the pivot mode, which enables you to install the displays in a landscape or portrait orientation to suit your environment while still delivering the impactful qualities of digital signage. And the sleek, modern design of the displays fits into virtually any business environment, enhancing the ambiance.
Create a streamlined display area with Samsung’s detachable SBB option
Because UHD is relatively new to the commercial market, few media players currently support UHD streaming. To meet this demand, Samsung plans to introduce an optional UHD-capable set-back box (SBB) in the late third quarter of 2014. The small-sized SBB is designed to attach to the back of the QMD Series displays, simplifying installation and eliminating unnecessary wire clutter and the need for a separate media player housing. This high-performance SBB features an embedded Haswell 4th Generation Intel® Core™ i5 CPU with a 4 GB DDR3 memory and comes with Samsung MagicInfo® software for easy content management.
