Stock Status: 1x unit in stock

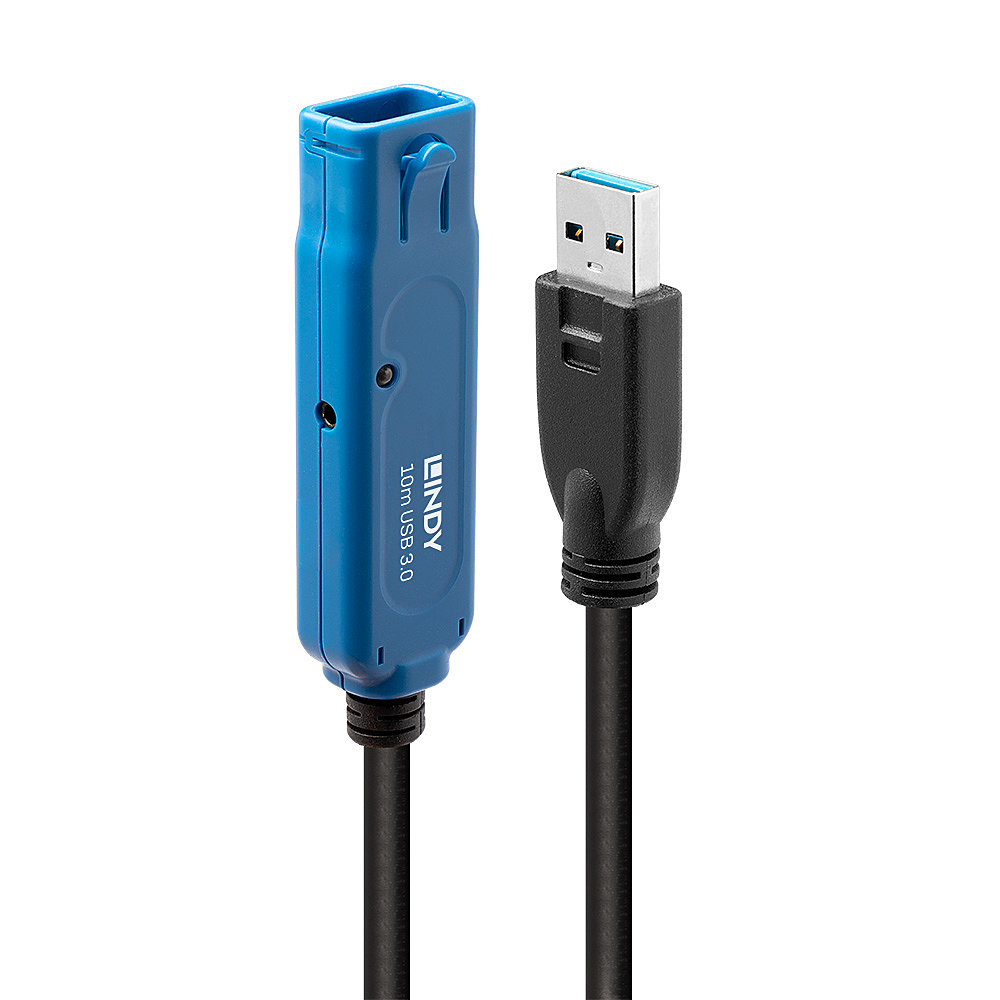

High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of about 40m (depending on the cable configurations used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connects to the device’s existing USB cable (5m maximum)
2 year warranty
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.
This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).
Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
240 mm |
| Package depth |
70 mm |
| Package height |
200 mm |
| Package weight |
900 g |
| Package type |
Box |
| Features |
| Cable length |
10 m |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
24/24/20 |
| Connector material |
Nickel |
| Contact material |
Brass |
| Connector contacts plating |
Gold |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Conductor material |
Tinned copper |
| Connector shielding |
Y |
| Connector shield material |
Aluminium |
| Connector housing material |
Plastic |
| Maximum data transfer rate |
5000 Mbit/s |
| Cable type |
Round cable |
| Transmission medium |
Twisted pair |
| Nominal attenuation |
0.064MHz - 0.08dB
0.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB |
| Certification |
CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Packaging content |
| Manual |
Y |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Weight & dimensions |
| Cable diameter |
7 mm |
| Bend radius (min) |
3.6 cm |
| Connector 1 dimensions (WxDxH) |
15 x 49 x 8 mm |
| Connector 2 dimensions (WxDxH) |
20 x 80 x 13 mm |
| Weight |
750 g |
| Power |
| Power note |
2.5/0.7mm DC |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
Features
Lindy 10m USB 3.0 Active Extension Cable Pro. Cable length: 10 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
Product Description
High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of about 40m (depending on the cable configurations used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connects to the device’s existing USB cable (5m maximum)
2 year warranty
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.
This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).
Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
