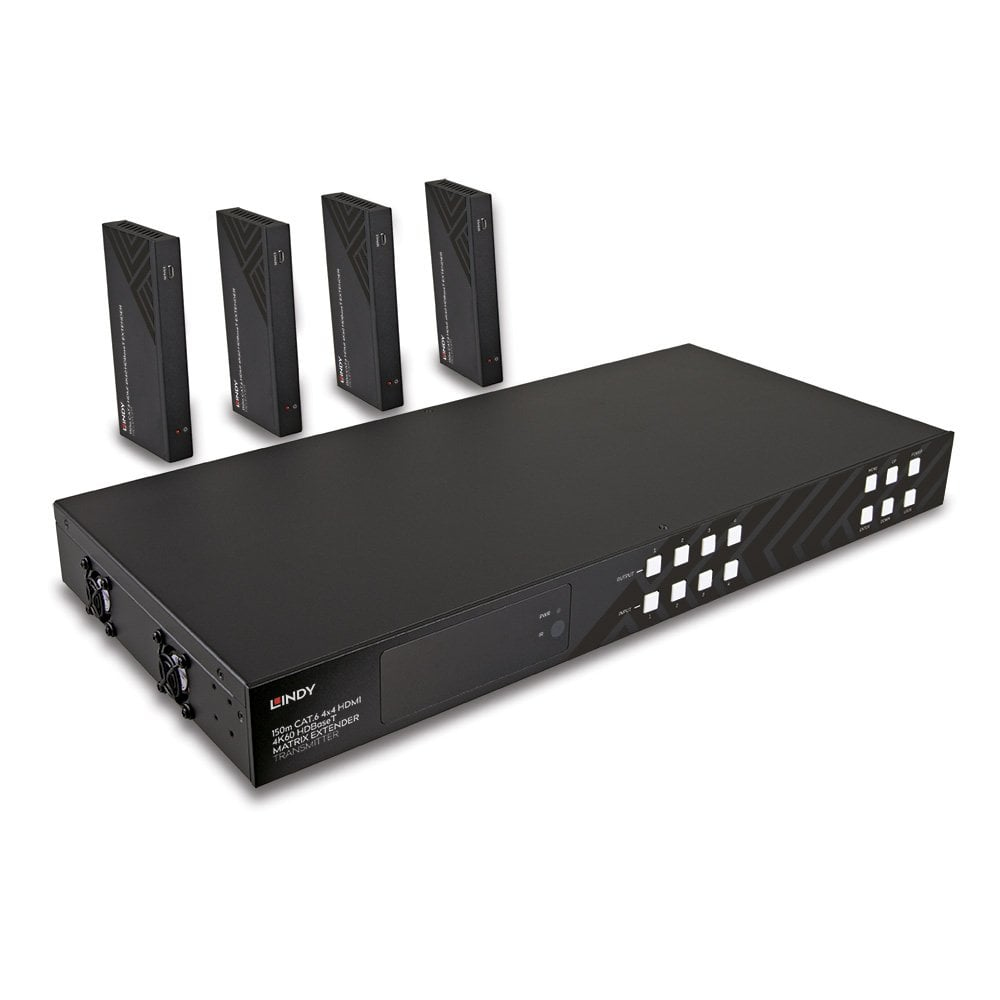

The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
Specs
| Technical details |
| Warranty period |
2 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Sustainability compliance |
Yes |
| Ports & interfaces |
| Connectivity technology |
Wired |
| RJ-45 output ports |
4 |
| HDBaseT port |
Yes |
| HDMI in |
4 |
| Number of HDMI outputs |
5 |
| HDMI version |
2.0 |
| RS-232 input ports |
2 |
| Digital audio coaxial out |
4 |
| Audio (L/R) out |
4 |
| 3.5 mm (1/8-inch) in |
Yes |
| 3.5 mm (1/8-inch) out |
Yes |
| Audio RCA outputs |
4 |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
200 mm |
| Height |
45 mm |
| Weight |
5.31 kg |
| Receiver dimensions (WxDxH) |
140 x 65 x 18 mm |
| Packaging data |
| Package width |
510 mm |
| Package depth |
401 mm |
| Package height |
98 mm |
| Package weight |
6.33 kg |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Power |
| Power source type |
AC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power requirements |
60 W |
| Packaging content |
| Manual |
Yes |
| Packaging content |
4x4 HDBaseT Extender Matrix - Transmitter
4 x HDBaseT Receivers
5 x IR Emitter Cable, 1.5m
5 x IR Receiver Cable, 1.5m
10 x Mounting Ears & Screws
4 x 3-Pin Terminal Block
4 x 5-Pin Terminal Block
RS-232 Male to Female cable, 1.5m
4 x mains cables (EU, UK |
| Features |
| Type |
AV transmitter & receiver |
| Maximum resolution |
3840 x 2160 pixels |
| Cable types supported |
Cat6 |
| Maximum transfer distance |
150 m |
| High Dynamic Range (HDR) supported |
Yes |
| EDID management |
Yes |
| HDCP pass-through |
Yes |
| Infrared (IR) frequency range |
20 - 60 kHz |
| Supported video modes |
1080p |
| Bandwidth |
18 Gbit/s |
| Audio formats supported |
LPCM |
| On/off switch |
Yes |
| HDCP |
Yes |
| Material |
Metal |
| Signal-to-Noise Ratio (SNR) |
90 dB |
| HDCP version |
2.2 |
| Product colour |
Black |
| Certification |
California Proposition 65 |
Features
Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 440 mm, Depth: 200 mm, Height: 45 mm. Package width: 510 mm, Package depth: 401 mm, Package height: 98 mm
Product Description
The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
