Stock Status: 1x unit in stock

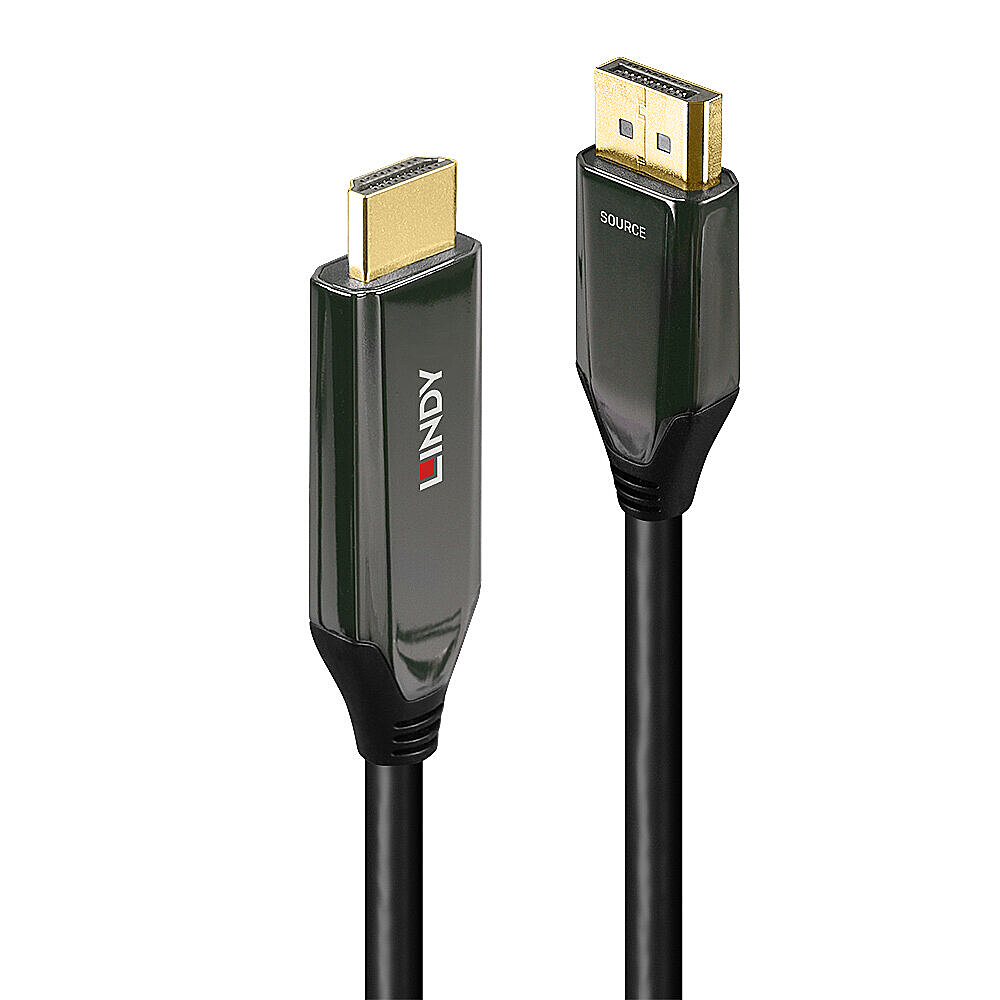

Lindy's Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC's, while avoiding the need for additional adapters.
With support for resolutions up to7680x4320@60Hz or4096x2160@120Hzand with additional support for High Dynamic Range, 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.
Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.
Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.
Please note: Some of Nvidia's latest drivers do not work correctly at 8k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 8k@60Hz 4:2:2
Specs
| Features |
| Cable length |
1 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDMI version |
2.1 |
| DisplayPort version |
1.4 |
| Data transfer rate |
48 Gbit/s |
| Maximum refresh rate |
60 Hz |
| Bend radius (min) |
3.3 cm |
| Chipset |
VM7100 |
| Cable type |
Round cable |
| AWG wire size |
32 |
| Colour depth |
10 bit |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 40 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
| Cable diameter |
5.5 mm |
| Connector 1 dimensions (WxDxH) |
50 x 20 x 8 mm |
| Connector 2 dimensions (WxDxH) |
50 x 20 x 8 mm |
| Packaging content |
| Manual |
Yes |
| Certification |
| UN number |
6 |
| Certification |
CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65 |
Features
Lindy 1m Active DisplayPort 1.4 to HDMI 8K60 Cable. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: HDMI. Certification: CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65. Cable diameter: 5.5 mm, Connector 1 dimensions (WxDxH): 50 x 20 x 8 mm, Connector 2 dimensions (WxDxH): 50 x 20 x 8 mm
Product Description
Lindy's Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC's, while avoiding the need for additional adapters.
With support for resolutions up to7680x4320@60Hz or4096x2160@120Hzand with additional support for High Dynamic Range, 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.
Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.
Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.
Please note: Some of Nvidia's latest drivers do not work correctly at 8k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 8k@60Hz 4:2:2
