Stock Status: 1x unit in stock

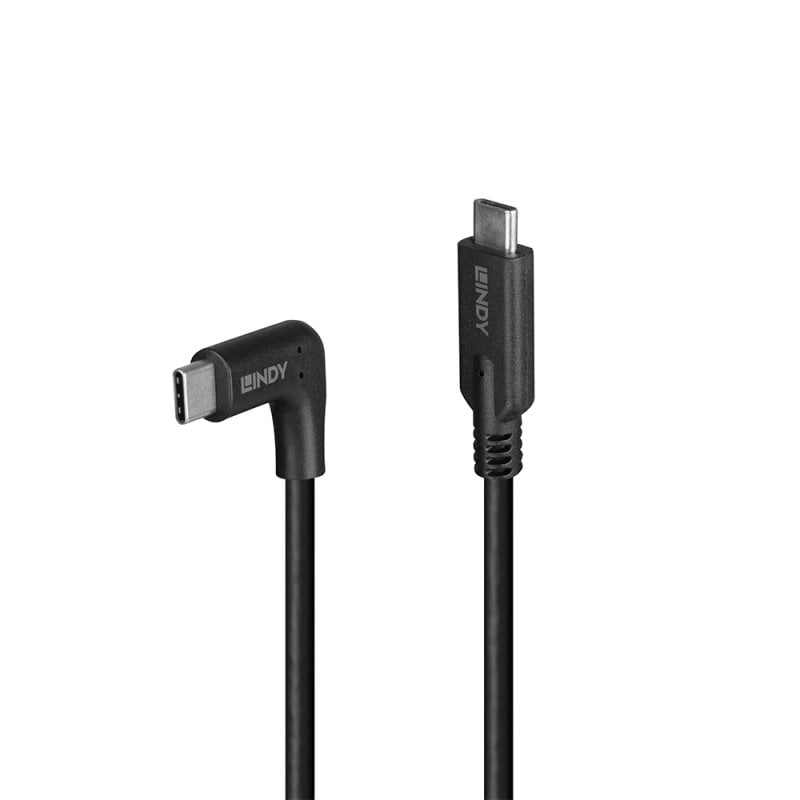

LINDY USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
Specs
| Packaging data |
| Package type |
Polybag |
| Features |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Angled |
| AWG wire size |
22/28 |
| Connector material |
Gold |
| Connector contacts plating |
Nickel |
| Cable jacket material |
Nylon/Polyvinyl Chloride (PVC) |
| Conductor material |
Copper |
| Connector shielding |
Yes |
| Connector shield material |
Aluminium |
| Maximum data transfer rate |
10 Gbit/s |
| Cable type |
Round cable |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
2.0 |
| USB Power Delivery up to |
60 W |
| Nominal attenuation |
0.5Mhz- 400Mhz < 5.8db |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Warranty period |
10 year(s) |
| Weight & dimensions |
| Cable length |
1.5 m |
| Cable diameter |
5 mm |
| Bend radius (min) |
5 cm |
| Connector 1 dimensions (WxDxH) |
6.4 x 38 x 12.3 mm |
| Connector 2 dimensions (WxDxH) |
11.1 x 25.8 x 24.2 mm |
| Certification |
| Compliance certificates |
REACH, RoHS |
| Certification |
RoHS, REACH, California Proposition 65 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
0 - 70 °C |
Features
Lindy 1.5m USB 3.2 Type C Cable, 90° Right Angle, 10Gbps. Cable length: 1.5 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Nickel, Product colour: Black
Product Description
LINDY USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
