Stock Status: 1x unit in stock

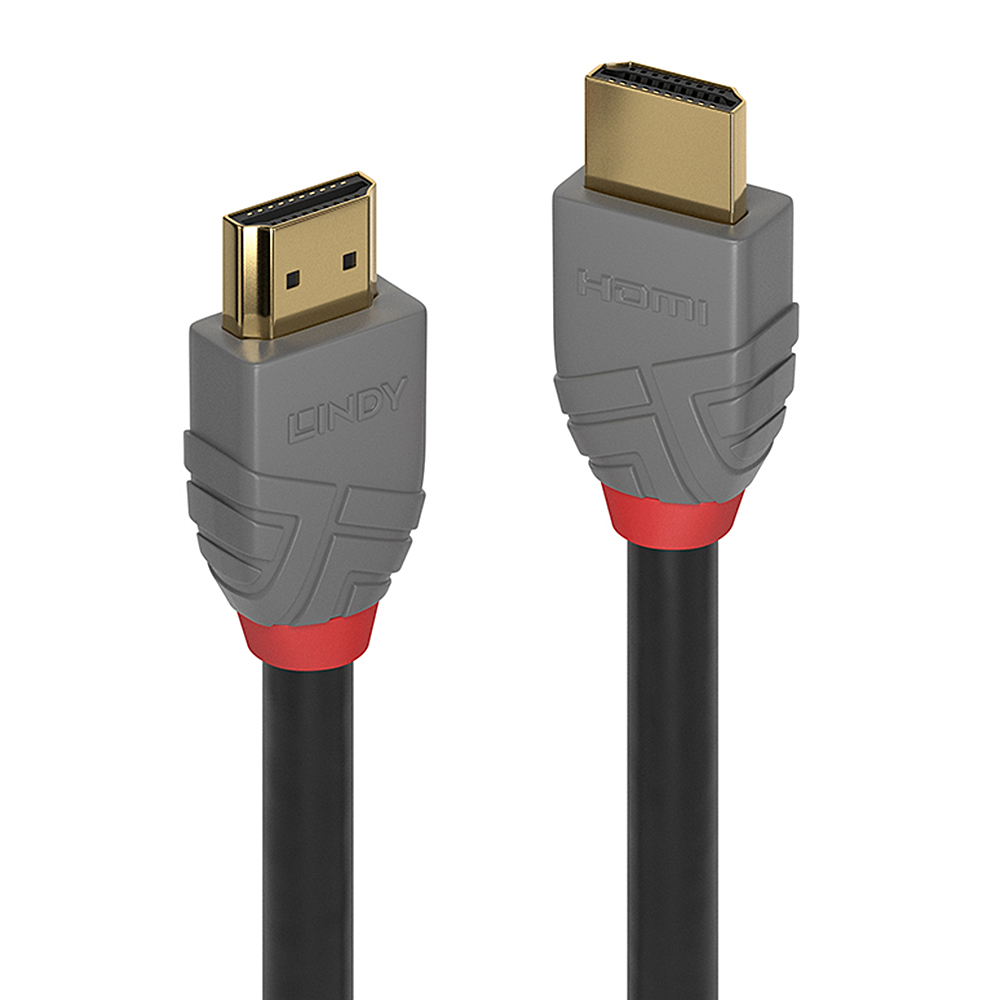

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
Specs
| Features |
| Cable length |
1 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black, Grey |
| Connector contacts plating |
Gold |
| Quantity per pack |
1 pc(s) |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDMI version |
2.0 |
| Supported graphics resolutions |
4096 x 2160 |
| Supported video modes |
2160p |
| HDMI Ethernet channel |
Yes |
| Data transfer rate |
18 Gbit/s |
| Maximum resolution |
4096 x 2160 pixels |
| AWG wire size |
30 |
| Contact material |
Phosphor copper |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Connector material |
Gold |
| Cable material |
Copper |
| Cable type |
Round cable |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Shield material |
Copper |
| Bending radius (min) |
4.8 cm |
| Colour depth |
8 bit |
| Plug and Play |
Yes |
| Colour sampling |
4:4:4 |
| Nominal attenuation |
300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Certification |
RoHS, REACH, UL, ATC |
| Weight & dimensions |
| Cable diameter |
6 mm |
| Connector 1 dimensions (WxDxH) |
20 x 34.2 x 10.9 mm |
| Connector 2 dimensions (WxDxH) |
20 x 34.2 x 10.9 mm |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 80 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
Features
Lindy 1m High Speed HDMI Cable, Anthra Line. Cable length: 1 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, Maximum resolution: 4096 x 2160 pixels, Data transfer rate: 18 Gbit/s, Product colour: Black, Grey
Product Description
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
