Stock Status: 1x unit in stock
IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.

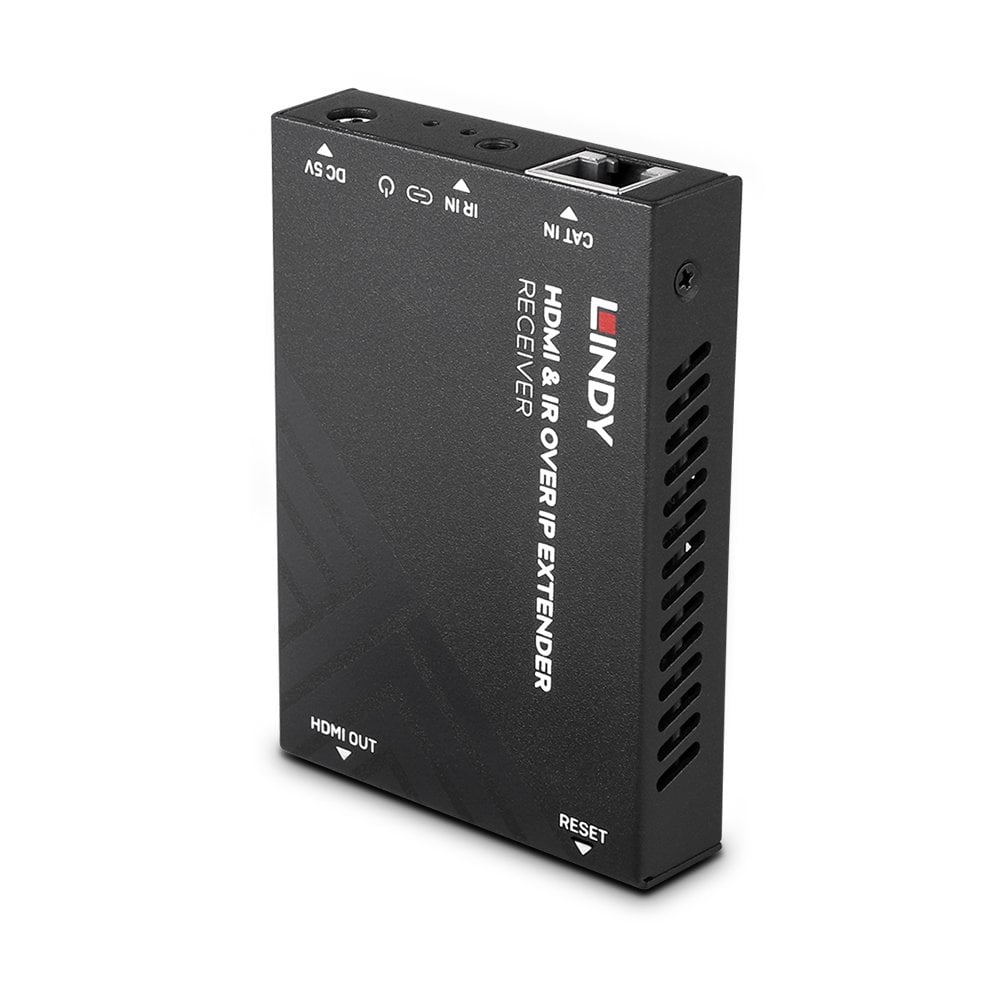

The Lindy HDMI and IR over IP receiver is a supplementary solution for extending HDMI signals across greater distances via a local network setup and creating scalable IP installations by using multiple receivers when combined with 38398 and network equipment. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding receivers provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.
Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.
Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.
Specs
| Technical details |
| Compliance certificates |
Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| Sustainability compliance |
Yes |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
1.3 |
| Remote (IR) input |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
88 mm |
| Depth |
16.5 mm |
| Height |
61.2 mm |
| Weight |
236 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
146 mm |
| Package depth |
65 mm |
| Package height |
105 mm |
| Package weight |
357 g |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
20 - 90% |
| Power |
| Power source type |
DC |
| Operating voltage |
5 V |
| Output current |
1 A |
| Packaging content |
| AC adapter included |
Yes |
| Cables included |
IR |
| Included power plug types |
AU, EU, UK, US |
| Manual |
Yes |
| Features |
| Type |
AV receiver |
| Maximum resolution |
1920 x 1080 pixels |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
150 m |
| Chipset |
SSD203D |
| Maximum refresh rate |
60 Hz |
| Audio output channels |
2.0 channels |
| Supported network protocols |
IP |
| Infrared (IR) frequency range |
20 - 60 kHz |
| Bandwidth |
6.75 Gbit/s |
| Video compression formats |
H.265 |
| HDCP |
Yes |
| HDCP version |
1.4 |
| Product colour |
Black |
Features
Lindy HDMI and IR over IP Extender - Receiver. Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Power source type: DC, Operating voltage: 5 V, Output current: 1 A. Width: 88 mm, Depth: 16.5 mm, Height: 61.2 mm. Quantity per pack: 1 pc(s), Package width: 146 mm, Package depth: 65 mm
Product Description
IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.
The Lindy HDMI and IR over IP receiver is a supplementary solution for extending HDMI signals across greater distances via a local network setup and creating scalable IP installations by using multiple receivers when combined with 38398 and network equipment. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding receivers provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.
Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.
Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.
