Stock Status: 1x unit in stock

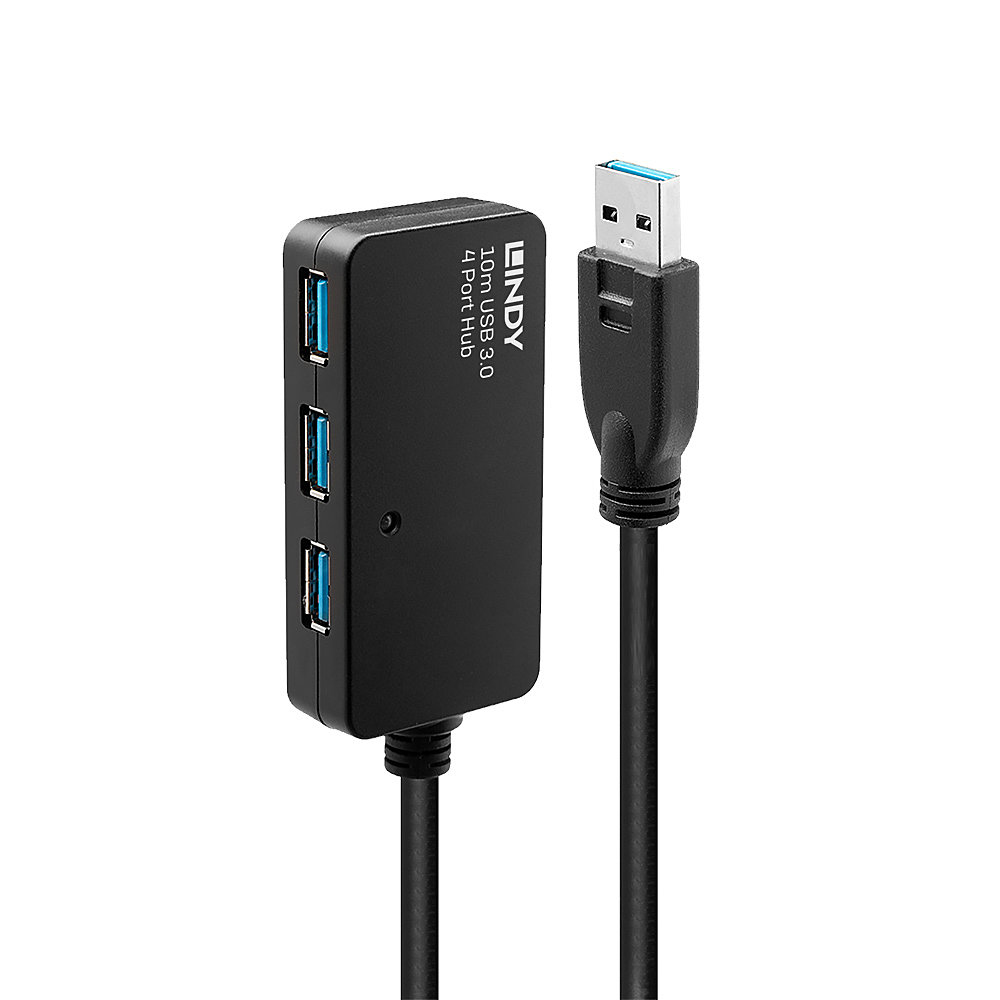

The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °F |
| Power |
| Power note |
3.5/1.35mm DC |
| Weight & dimensions |
| Width |
80 mm |
| Depth |
38 mm |
| Height |
15 mm |
| Weight |
790 g |
| Connector 1 dimensions (WxDxH) |
15 x 42 x 8 mm |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| DC-in jack |
Yes |
| Packaging content |
| Manual |
Yes |
| Design |
| Cable shielding |
Aluminum mylar foil |
| Logistics data |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
240 mm |
| Package depth |
200 mm |
| Package height |
70 mm |
| Package weight |
900 g |
| Package type |
Box |
| Features |
| Data transfer rate |
5000 Mbit/s |
| Product colour |
Black |
| Housing material |
Plastic |
| LED indicators |
Yes |
| Cable type |
Round cable |
| Plating material |
Nickel |
| AWG wire size |
24/24/20 |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Cable length |
10 m |
| Cable diameter |
7 mm |
| Conductor material |
Tinned copper |
| Contact material |
Brass |
| Connector contacts plating |
Gold |
| Plug and Play |
Yes |
| Bend radius (min) |
3.6 cm |
| Transmission medium |
Twisted pair |
| Nominal attenuation |
0.064MHz - 0.08dB
0.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB |
| Certification |
CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Features
Lindy 10m USB 3.0 Active Extension Pro Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power note: 3.5/1.35mm DC. Width: 80 mm, Depth: 38 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 240 mm, Package depth: 200 mm
Product Description
The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
