Stock Status: 1x unit in stock

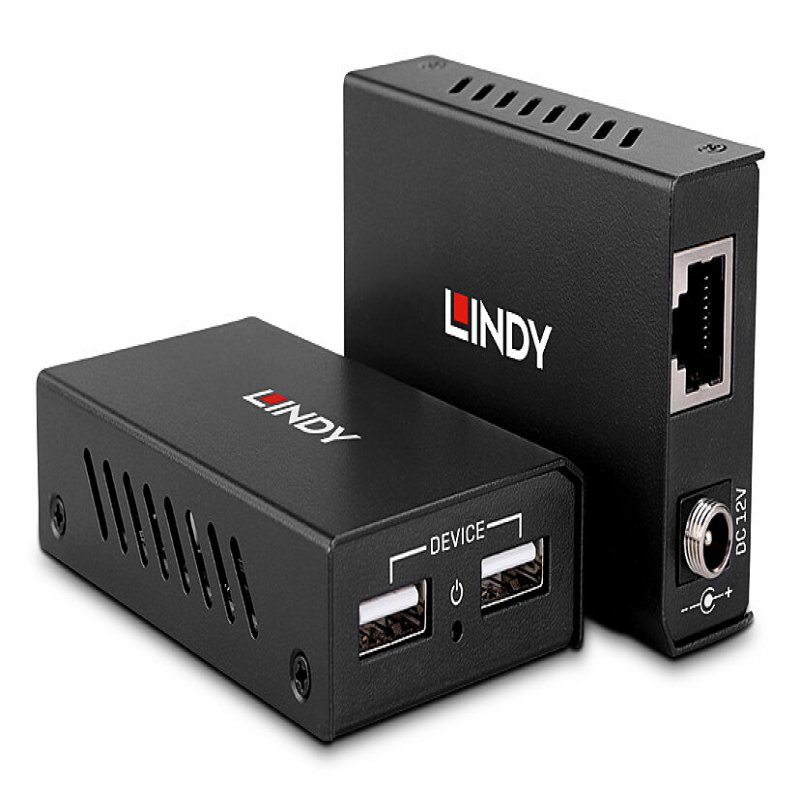

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specs
| Ports & interfaces |
| Connectivity technology |
Wired |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| USB ports quantity |
3 |
| USB version |
2.0 |
| USB connector type |
USB Type-B |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
82 mm |
| Depth |
49 mm |
| Height |
20 mm |
| Weight |
200 g |
| Packaging data |
| Quantity per pack |
2 pc(s) |
| Package width |
200 mm |
| Package depth |
115 mm |
| Package height |
75 mm |
| Package weight |
600 g |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Packaging content |
| Cables included |
USB Type-A to USB Type-B |
| Manual |
Yes |
| Mounting brackets included |
Yes |
| Packaging content |
Transmitter unit
Receiver unit
0.9m USB 2.0 A Male to B Male cable
Multi-Country Power Supply (EU, UK, US & AUS)
Mounting Brackets
Lindy Manual |
| Features |
| Type |
AV transmitter & receiver |
| Maximum transfer distance |
100 m |
| Chipset |
VA6000 |
| Bandwidth |
0.48 Gbit/s |
| Material |
Metal |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS & REACH, CP65 |
Features
Lindy 100m 2 Port USB 2.0 Cat. 6 Extender. Type: AV transmitter & receiver, Maximum transfer distance: 100 m, Chipset: VA6000. Connectivity technology: Wired, USB connector type: USB Type-B. Width: 82 mm, Depth: 49 mm, Height: 20 mm. Quantity per pack: 2 pc(s), Package width: 200 mm, Package depth: 115 mm. Cables included: USB Type-A to USB Type-B, Packaging content: Transmitter unit Receiver unit 0.9m USB 2.0 A Male to B Male cable Multi-Country Power Supply (EU,...
Product Description
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
