Stock Status: 1x unit in stock

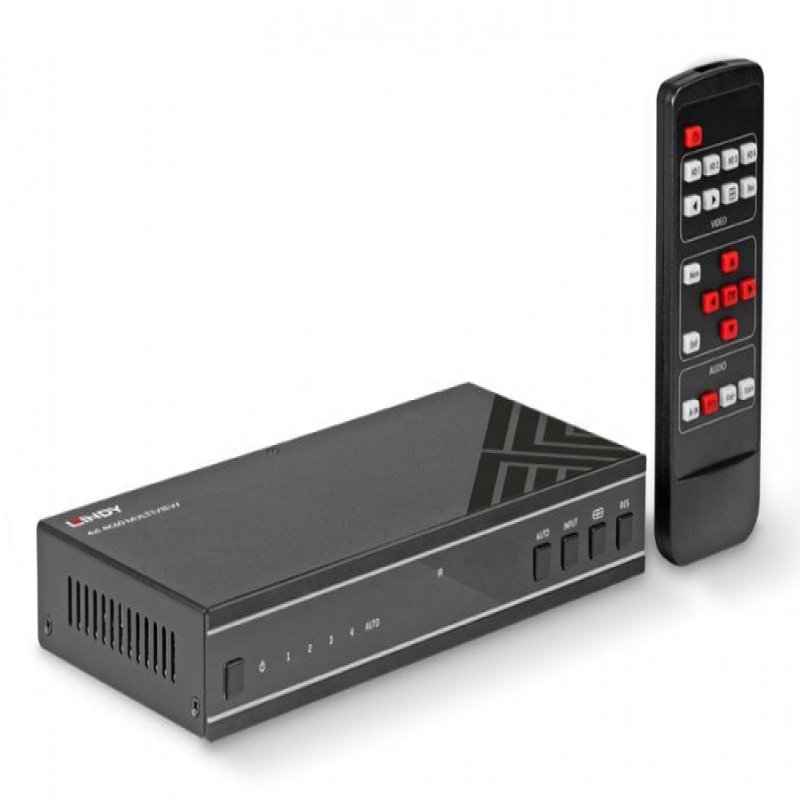

This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
Specs
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
HDMI |
| Screws included |
Yes |
| Packaging content |
1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher
1 x IR Remote Control
1 x 3pin-3.81mm Phoenix connector (male)
1 x 38KHz IR Wideband Receiver cable (1.5 Meters)
2 x Mounting Ears
4 x Machine Screws (KM3*4)
4 x Rubber Feet
1 x 12v/2.5A Locking Pow |
| Technical details |
| Warranty period |
2 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Ports & interfaces |
| Video port type |
HDMI |
| HDMI ports quantity |
5 |
| HDMI in |
4 |
| Number of HDMI outputs |
1 |
| Audio (L/R) out |
1 |
| Weight & dimensions |
| Width |
219 mm |
| Depth |
111 mm |
| Height |
30 mm |
| Weight |
610 g |
| Power |
| AC input voltage |
12 V |
| AC adapter input voltage |
2.5 V |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-4 - 140 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
20 - 90% |
| Packaging data |
| Package width |
280 mm |
| Package depth |
179 mm |
| Package height |
78 mm |
| Package weight |
1.08 kg |
| Features |
| Material |
Metal |
| Product colour |
Black |
| Plug and Play |
Yes |
| HDCP |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
3840 x 2160 |
| Bandwidth |
18 Gbit/s |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP version |
2.2 |
Features
Lindy 4x1 4K60 HDMI Seamless Multiview Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 12 V, AC adapter input voltage: 2.5 V. Width: 219 mm, Depth: 111 mm, Height: 30 mm. Package width: 280 mm, Package depth: 179 mm, Package height: 78 mm
Product Description
This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
