Stock Status: 1x unit in stock

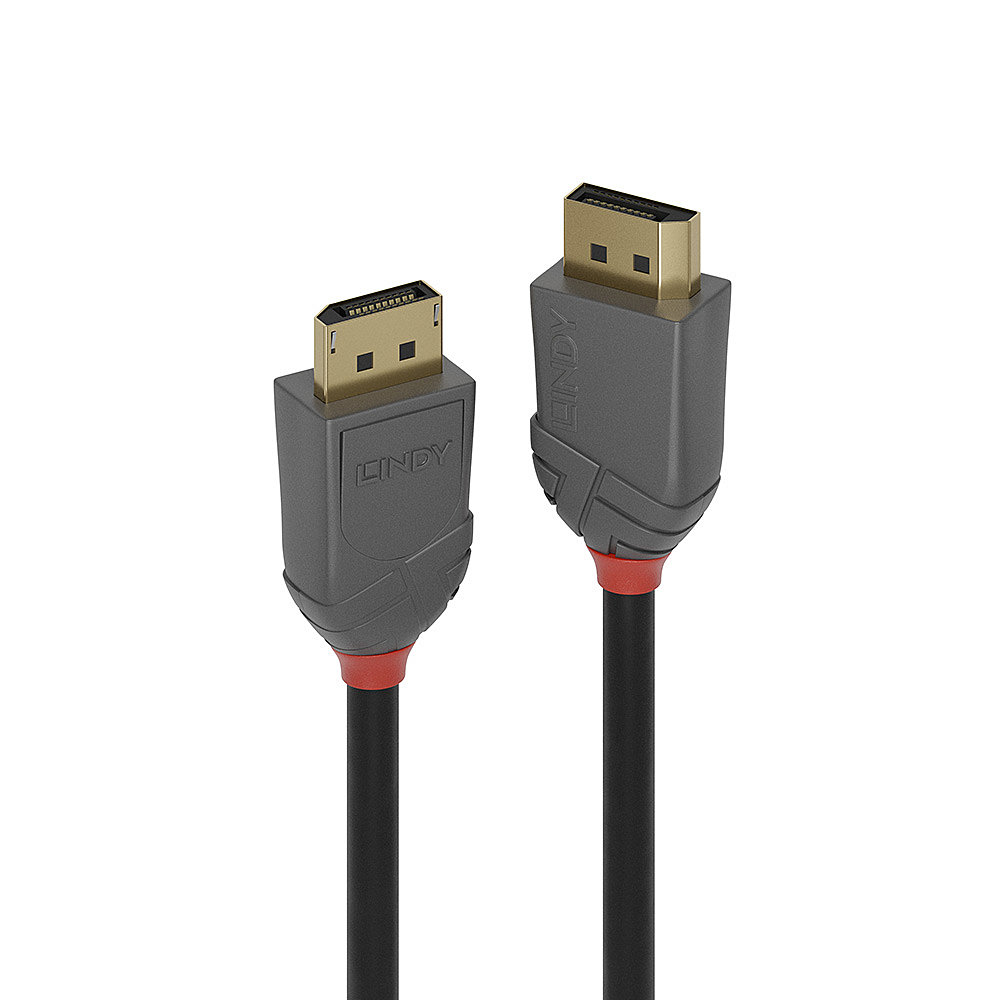

Professional choice DisplayPort 1.2 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m and 10m.
Specs
| Features |
| Cable length |
5 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black, Grey |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| DisplayPort version |
1.2 |
| Supported graphics resolutions |
4096 x 2160 |
| Supported video modes |
2160p |
| Maximum refresh rate |
120 Hz |
| Cable material |
Tinned copper |
| Cable shielding |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| AWG wire size |
28 |
| Data transfer rate |
21.6 Gbit/s |
| Contact material |
Phosphor bronze |
| Connector material |
Gold |
| Plug and Play |
Y |
| Bend radius (min) |
5.84 cm |
| Colour sampling |
4:2:2 |
| Cable type |
Round cable |
| Nominal attenuation |
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Certification |
RoHS, REACH, UL |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 80 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Packaging data |
| Cable diameter |
7.3 mm |
| Connector 1 dimensions (WxDxH) |
21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) |
21 x 38.9 x 13.6 mm |
| Quantity per pack |
1 pc(s) |
| Package type |
Polybag |
Features
Lindy 5m DisplayPort 1.2 Cable, Anthra Line. Cable length: 5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Product Description
Professional choice DisplayPort 1.2 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m and 10m.
