Stock Status: 1x unit in stock

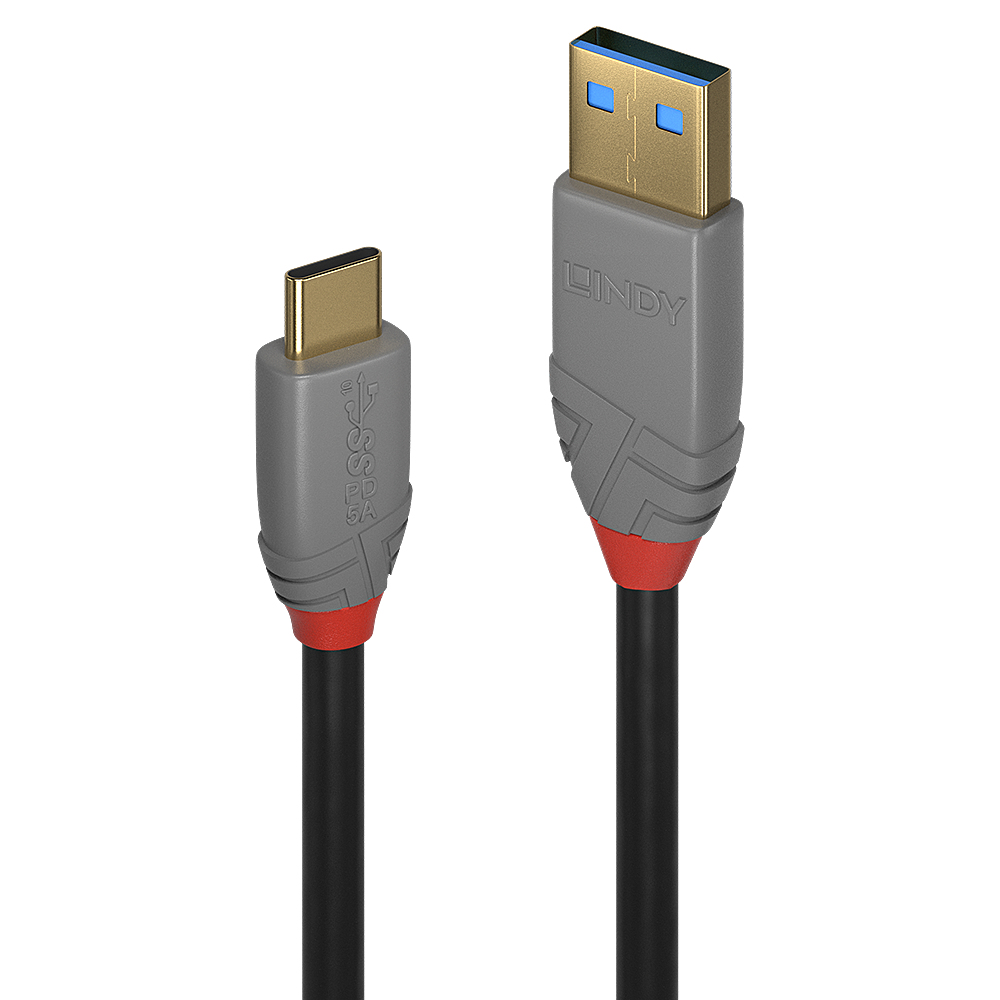

The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Specs
| Packaging data |
| Package type |
Polybag |
| Features |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB A |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black, Grey |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
24/30/32 |
| Connector material |
Gold |
| Contact material |
Phosphor bronze |
| Connector contacts plating |
Gold |
| Magnetically shielded |
Yes |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Conductor material |
Tinned copper |
| Connector shielding |
Yes |
| Connector shield material |
Copper |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Maximum data transfer rate |
10 Gbit/s |
| Cable type |
Round cable |
| Nominal attenuation |
0.5Mhz €“ 15Ghz 40db |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Weight & dimensions |
| Cable length |
1.5 m |
| Cable diameter |
4.5 mm |
| Bend radius (min) |
4.5 cm |
| Connector 1 dimensions (WxDxH) |
15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) |
12.7 x 30.8 x 7.3 mm |
| Certification |
| Certification |
RoHS, REACH, UL |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 80 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
Features
Lindy 1.5m USB 3.2 Type A to C Cable, 10Gbps, 5A, PD, Anthra Line. Cable length: 1.5 m. Connector 1: USB C, Connector 2: USB A, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Gold, Product colour: Black, Grey, Magnetically shielded
Product Description
The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
