Stock Status: 1x unit in stock

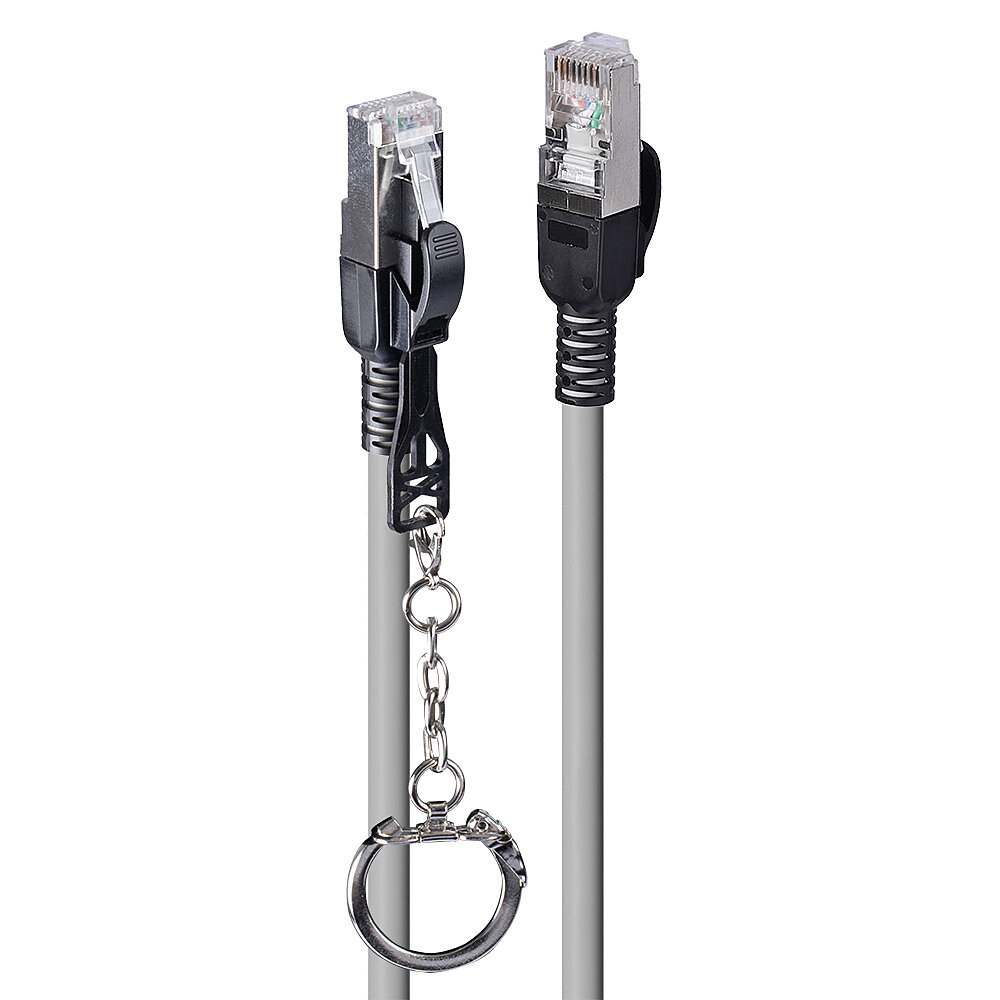

The Lindy Cat.6A Locking Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key.
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m
Specs
| Weight & dimensions |
| Connector 1 dimensions (WxDxH) |
11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) |
11.6 x 21.5 x 8.5 mm |
| Packaging data |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Features |
| Cable length |
2 m |
| Cable standard |
Cat6a |
| Cable shielding |
S/FTP (S-STP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Product colour |
Grey |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| Connector shielding |
Yes |
| Connector shield material |
Aluminium |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Conductor material |
Copper |
| AWG wire size |
26 |
| Frequency |
500 MHz |
| Bend radius (min) |
7.2 cm |
| Nominal attenuation |
49.3dB/100m @ 500MHz |
| Certification |
| Certification |
RoHS, REACH, UL |
Features
Lindy 2m Cat.6A S/FTP Locking Network Cable, Grey. Cable length: 2 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel, Product colour: Grey
Product Description
The Lindy Cat.6A Locking Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key.
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m
