Stock Status: 1x unit in stock

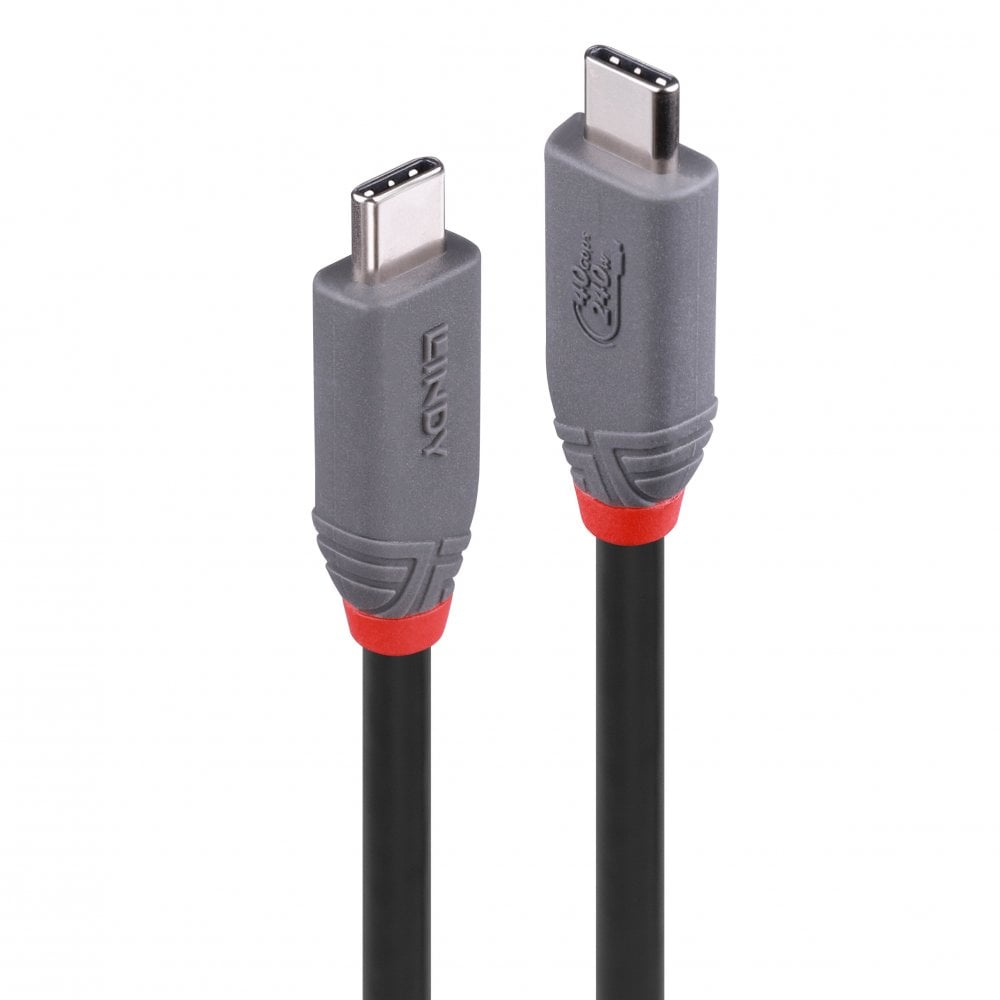

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Specs
| Features |
| USB version |
USB4 Gen 3x2 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
23/30/34 |
| Connector material |
Nickel |
| Connector contacts plating |
Gold |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| Conductor material |
Copper |
| Connector shielding |
Yes |
| Connector shield material |
Copper |
| Maximum data transfer rate |
40 Gbit/s |
| Cable type |
Round cable |
| Plug and Play |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
240 W |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Cable length |
2 m |
| Cable diameter |
4.8 mm |
| Bend radius (min) |
2.88 cm |
| Connector 1 dimensions (WxDxH) |
30 x 12.4 x 6.5 mm |
| Connector 2 dimensions (WxDxH) |
30 x 12.4 x 6.5 mm |
| Certification |
| UN number |
` |
| Compliance certificates |
REACH, RoHS |
| Certification |
RoHS, REACH, California Proposition 65 & UL |
| Sustainability |
| Sustainability certificates |
UL ECOLOGO |
| Sustainability compliance |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 40 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
Features
Lindy 2m USB 4 240W Type C Cable, Anthra Line. Cable length: 2 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 3x2, Maximum data transfer rate: 40 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Product Description
The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
