Stock Status: 1x unit in stock
USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.

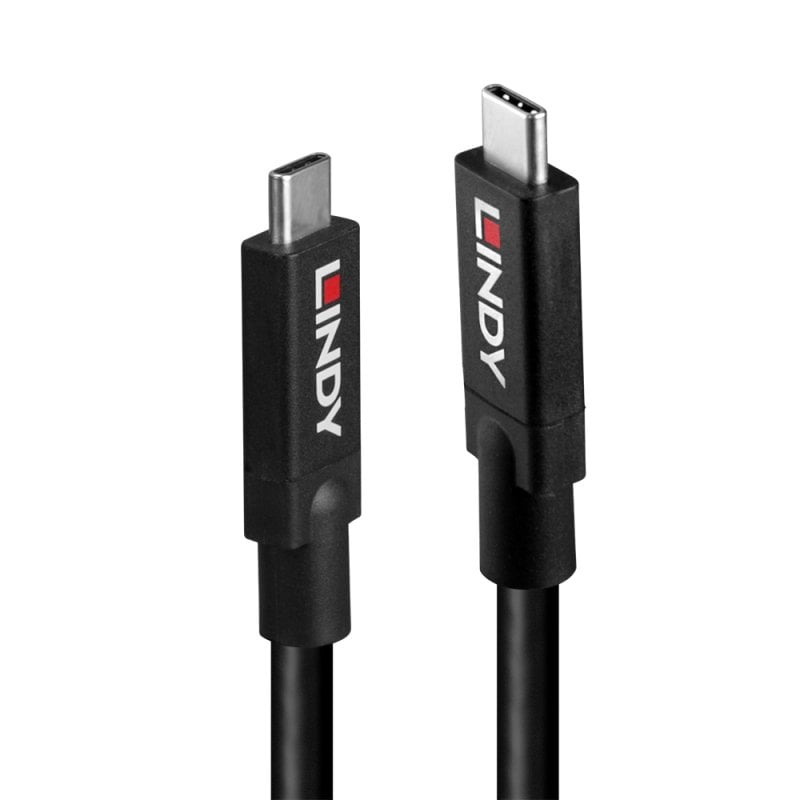

The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 8m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as DisplayPort 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 100W (20V / 5A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Specs
| Packaging data |
| Package type |
Polybag |
| Package width |
236 mm |
| Package depth |
255 mm |
| Package weight |
516 g |
| Features |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| Cable jacket material |
Polypropylene, Thermoplastic elastomer (TPE) |
| Conductor material |
Tinned copper |
| Maximum data transfer rate |
10 Gbit/s |
| Cable type |
Round cable |
| USB Power Delivery up to |
100 W |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
| Cable length |
8 m |
| Cable diameter |
6 mm |
| Width |
41 mm |
| Depth |
12.4 mm |
| Height |
8.8 mm |
| Weight |
500 g |
| Certification |
| Certification |
CE, FCC, RoHS & REACH, CP65 |
Features
Lindy 8m USB 3.2 Gen 2 C/C Active Cable. Cable length: 8 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Nickel, Product colour: Black
Product Description
USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.
The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 8m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as DisplayPort 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 100W (20V / 5A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
