Stock Status: 1x unit in stock

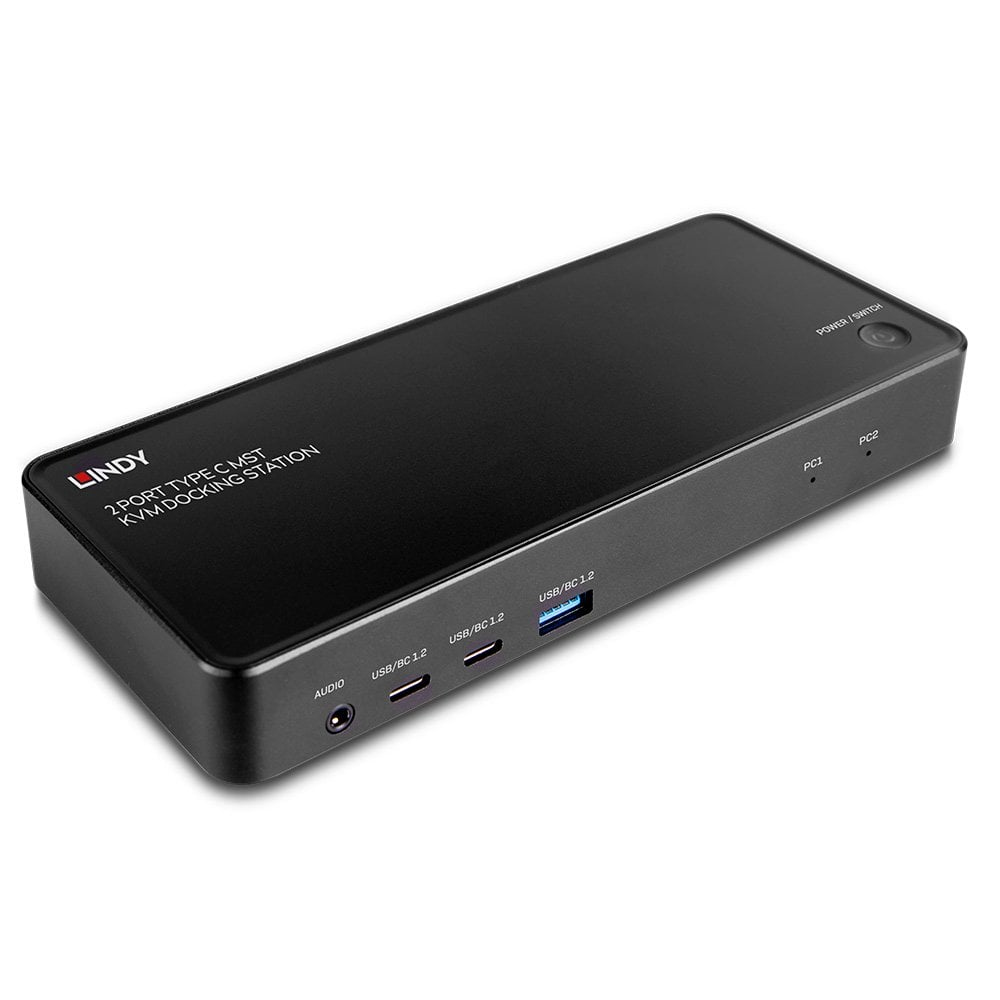

The Lindy 2 Port Type C MST KVM Docking Station is a compact and versatile solution for connecting laptops to a range of interfaces including two displays. Featuring all critical interfaces required for a modern workstation, this device combines the comfort of a Desktop Docking Station with a Type C KVM Switch; it provides two USB 3.2 Type C inputs to connect sources such as laptops, tablets or smartphones in order to share the same workstation and peripherals connected. Switching is easily possible by pushing the button on the top of the unit.
The Docking Station enables the connection of two displays via HDMI and DisplayPort outputs at resolutions of 3840x2160@60Hz using DisplayPort Alternate Mode through the USB Type C ports. It supports also MST function to manage the simultaneous connection of both monitors, one with 4K30 and one with 1920x1080@60Hz maximum resolutions.
The USB Type C and Type A ports on the front panel provide up to 5Gbps of data transfer and BC 1.2 for fast charging perfect for connecting peripherals such as a hard drive, webcam and for charging a mobile device. Both USB Type C inputs support USB Power Delivery 3.0, PC1 port up to 100W (connecting an additional Type C PD power supply to PD port) while PC2 port up to 65W (just connecting the included power supply).
It provides also a Gigabit Ethernet and a 3.5mm port to connect a Network and an Audio stereo input/output device such as headphones, speakers or microphone.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Video port type |
HDMI |
| Console ports |
3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A, USB C |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| USB 2.0 Type-C ports quantity |
2 |
| Console USB ports quantity |
6 |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Weight & dimensions |
| Width |
185 mm |
| Depth |
79 mm |
| Height |
28 mm |
| Weight |
926 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
0 - 85% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Input voltage |
24 V |
| Output current |
5.6 A |
| Packaging content |
| Manual |
Yes |
| Design |
| Product colour |
Black |
| Housing material |
Aluminium, Plastic |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Data transfer rate (max) |
5 Gbit/s |
| HDCP |
Yes |
| Packaging data |
| Package width |
250 mm |
| Package depth |
203 mm |
| Package height |
50 mm |
| Package weight |
1.08 kg |
| Package type |
Box |
| Sustainability |
| Compliance certificates |
REACH, RoHS |
Features
Lindy 2 Port Type C MST KVM Docking Station. Video port type: HDMI, Console ports: 3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A, USB C. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Aluminium, Plastic. Input voltage: 24 V, Output current: 5.6 A. Compliance certificates: REACH, RoHS
Product Description
The Lindy 2 Port Type C MST KVM Docking Station is a compact and versatile solution for connecting laptops to a range of interfaces including two displays. Featuring all critical interfaces required for a modern workstation, this device combines the comfort of a Desktop Docking Station with a Type C KVM Switch; it provides two USB 3.2 Type C inputs to connect sources such as laptops, tablets or smartphones in order to share the same workstation and peripherals connected. Switching is easily possible by pushing the button on the top of the unit.
The Docking Station enables the connection of two displays via HDMI and DisplayPort outputs at resolutions of 3840x2160@60Hz using DisplayPort Alternate Mode through the USB Type C ports. It supports also MST function to manage the simultaneous connection of both monitors, one with 4K30 and one with 1920x1080@60Hz maximum resolutions.
The USB Type C and Type A ports on the front panel provide up to 5Gbps of data transfer and BC 1.2 for fast charging perfect for connecting peripherals such as a hard drive, webcam and for charging a mobile device. Both USB Type C inputs support USB Power Delivery 3.0, PC1 port up to 100W (connecting an additional Type C PD power supply to PD port) while PC2 port up to 65W (just connecting the included power supply).
It provides also a Gigabit Ethernet and a 3.5mm port to connect a Network and an Audio stereo input/output device such as headphones, speakers or microphone.
