Stock Status: 1x unit in stock

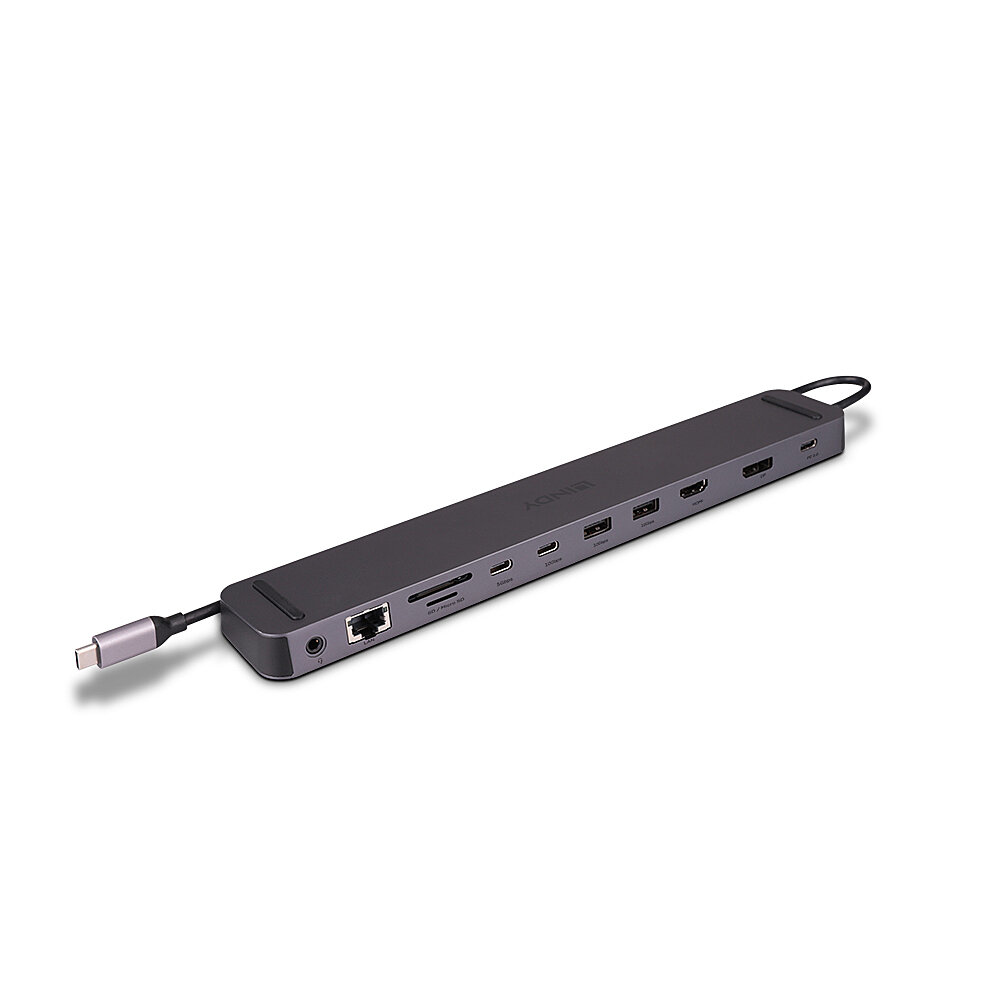

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.
This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.
The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**
This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.
*Please note that macOS does not support MST.
** Please note that the Docking Station requires 15W for its own operation.
Specs
| Weight & dimensions |
| Width |
270 mm |
| Depth |
45 mm |
| Height |
16 mm |
| Weight |
224 g |
| Ports & interfaces |
| Connectivity technology |
Docking |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4a |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power source type |
USB |
| Power connector |
USB Type-C |
| Power supply |
15 W |
| USB cable length |
0.36 m |
| Packaging content |
| Manual |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Performance |
| Product colour |
Anthracite |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Data transfer rate |
10 Gbit/s |
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
2 |
| Maximum refresh rate |
120 Hz |
| Plug and Play |
Yes |
| Housing material |
Aluminium |
| Certification |
CE, FCC, REACH & RoHS, CP65 |
| Technical details |
| Warranty period |
2 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
365 mm |
| Package depth |
93 mm |
| Package height |
35 mm |
| Package weight |
330 g |
| Sustainability |
| Sustainability compliance |
Yes |
Features
Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) and 100W Pass-Through Charging. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Power connector: USB Type-C, Power supply: 15 W. Width: 270 mm, Depth: 45 mm, Height: 16 mm
Product Description
The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.
This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.
The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**
This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.
*Please note that macOS does not support MST.
** Please note that the Docking Station requires 15W for its own operation.
