Stock Status: 1x unit in stock

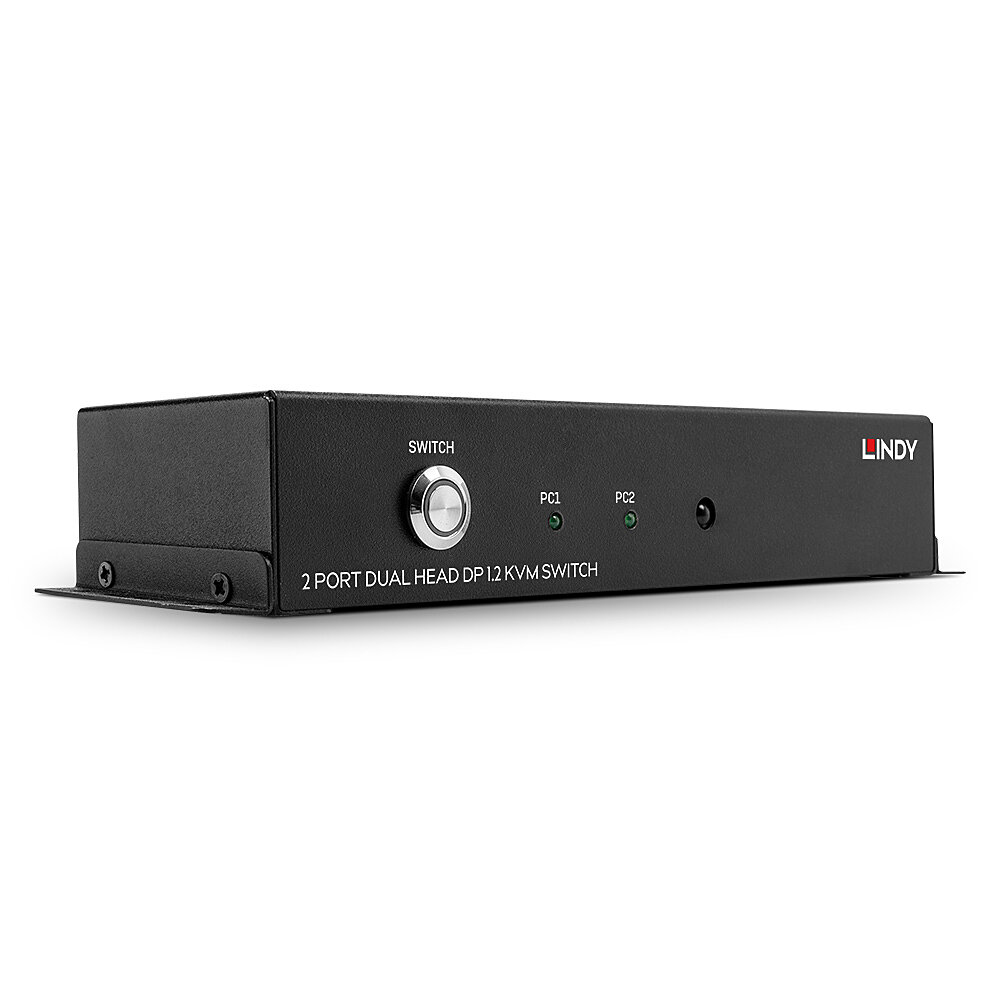

The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals and storage devices between host PC's seamlessly.
Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.
Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.
Installation within new and existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.
Please Note: connection cables are not included
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
DisplayPort, USB A |
| DisplayPorts quantity |
4 |
| DisplayPort version |
1.2 |
| USB 2.0 Type-B ports quantity |
2 |
| Console USB ports quantity |
4 |
| Weight & dimensions |
| Width |
184 mm |
| Depth |
35 mm |
| Height |
60 mm |
| Weight |
674 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Packaging content |
| Cables included |
DC |
| Manual |
Yes |
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Packaging data |
| Package width |
235 mm |
| Package depth |
63 mm |
| Package height |
198 mm |
| Package weight |
860 g |
| Package type |
Box |
| Sustainability |
| Compliance certificates |
REACH, RoHS |
Features
Lindy 2 Port Dual Head DisplayPort 1.2 KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V. Compliance certificates: REACH, RoHS
Product Description
The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals and storage devices between host PC's seamlessly.
Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.
Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.
Installation within new and existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.
Please Note: connection cables are not included
