Stock Status: 1x unit in stock
Extract stereo or multi-channel audio from a HDMI signal
Support resolutions up 4096x2160@30Hz 4:4:4 8bit
Supports various audio formats including LPCM, Dolby Digital 2/5.1 and DTS-HD
CEC Pass-through
2 year warranty

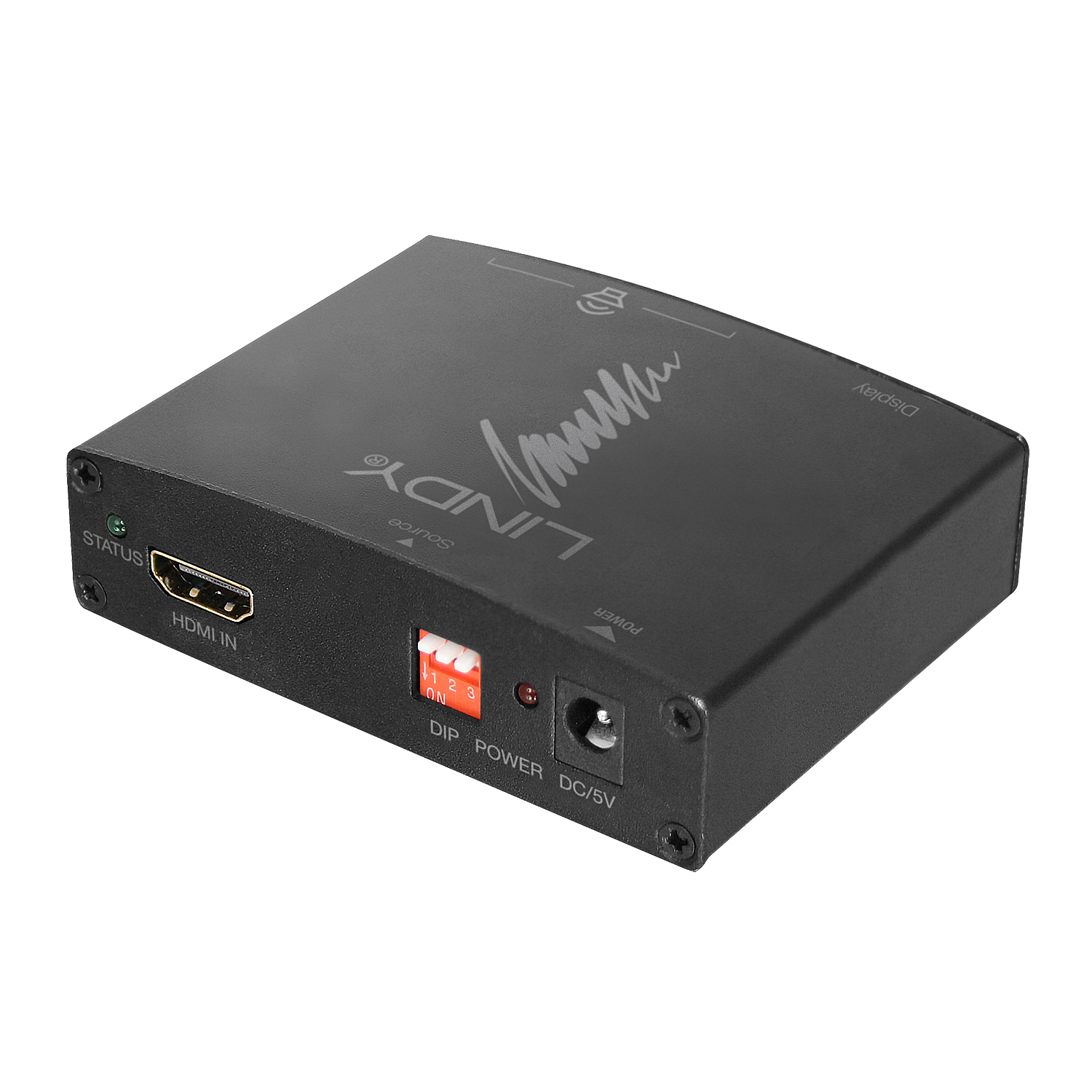

The Lindy HDMI Audio Extractor is an effective solution for extracting audio from a HDMI source to both digital and analogue audio devices, while sending the video signal to a 4K display or projector.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to both digital formats via Optical and HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require seperate speakers.
Featuring a neat switch to fully control which source audio EDID is used and the ability to be powered via USB from the source or display device, the extractor provides simple use and installation, great for both AV installations in the home or in commercial settings. With a minimalist and stylish design, it can also be hidden out of sight to compliment the popular trend of discreet AV installations.
Specs
| Weight & dimensions |
| Width |
65 mm |
| Depth |
88 mm |
| Height |
24 mm |
| Weight |
118 g |
| Inputs |
| HDMI in |
1 |
| DC-in jack |
Y |
| Power |
| Power consumption (typical) |
5 W |
| Power note |
5.5/2.1mm DC |
| Outputs |
| Audio (L/R) out |
1 |
| Digital audio coaxial out |
1 |
| Digital audio optical out |
1 |
| S/PDIF out port |
Y |
| Number of HDMI outputs |
1 |
| Technical details |
| Maximum data transfer rate |
10200 Mbit/s |
| HDCP |
Y |
| HDCP version |
1.4 |
| Chipset |
EP91A2E |
| HDMI version |
1.4 |
| HDMI pass-through |
Y |
| CEC pass-through |
Y |
| Input impedance |
100 Ω |
| Output impedance |
100 Ω |
| Supported sample rates |
192 kHz |
| Supported chroma subsampling |
4:4:4 |
| Audio codecs |
Dolby Digital 2/5.1, DTS-HD |
| Accuracy |
0.1 dB |
| Product colour |
Black |
| Maximum resolution |
4096 x 2160 pixels |
| Audio recording formats |
LPCM |
| Housing material |
Metal |
| Sustainability certificates |
REACH, RoHS |
| Certification |
CE, UKCA, FCC, RoHS, REACH |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Quantity |
1 |
| Cables included |
DC to USB Type-A |
| Manual |
Y |
| Package width |
202 mm |
| Package depth |
144 mm |
| Package height |
55 mm |
| Package weight |
250 g |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
-15 - 55 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
Features
Lindy HDMI 4K Audio Extractor with bypass. Power consumption (typical): 5 W, Power note: 5.5/2.1mm DC. Width: 65 mm, Depth: 88 mm, Height: 24 mm. Cables included: DC to USB Type-A, Package width: 202 mm, Package depth: 144 mm
