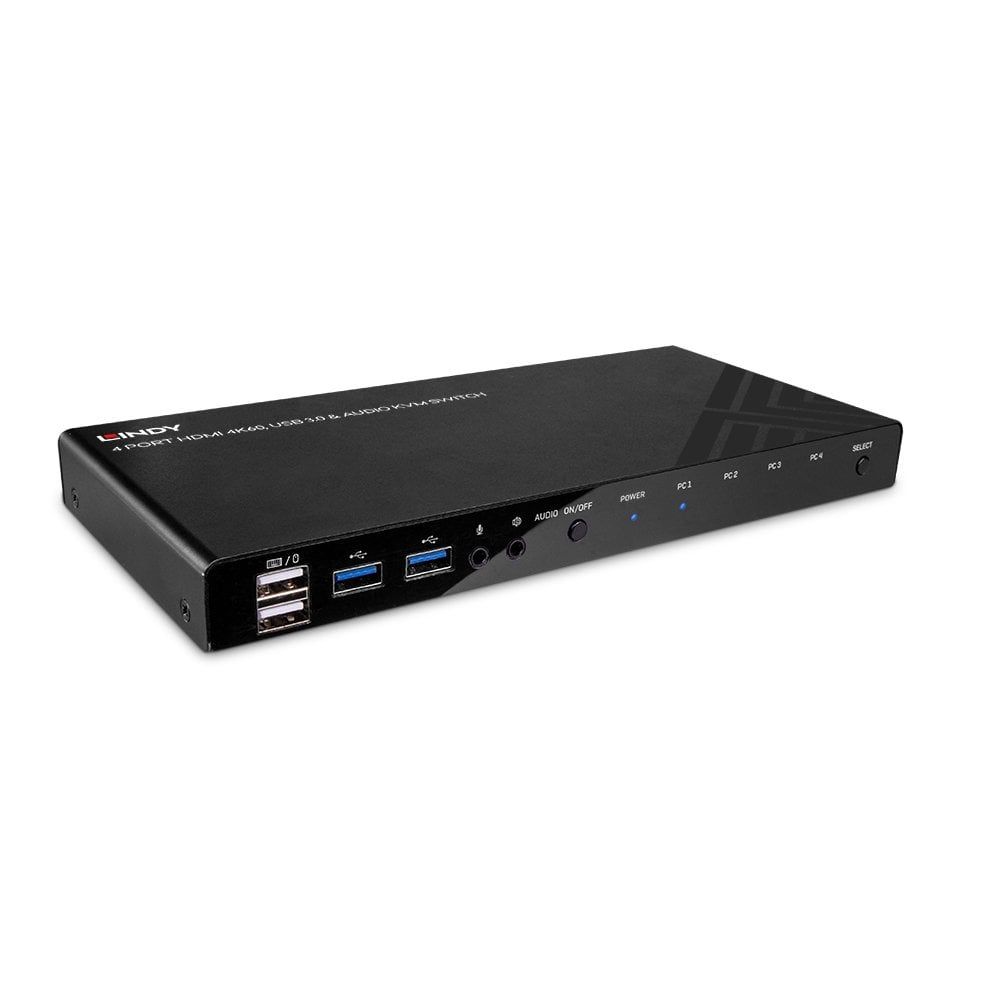

The Lindy 4 Port HDMI 4K60, USB 3.0 and Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup.
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while two additional USB devices such as printer, scanner or hard drive can be connected to the USB 3.0 ports on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| HDMI ports quantity |
5 |
| HDMI version |
2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Console USB ports quantity |
4 |
| Console HDMI ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
231 mm |
| Depth |
108 mm |
| Height |
23 mm |
| Weight |
710 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
5 - 80% |
| Storage relative humidity (H-H) |
5 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Input current |
3 A |
| Display |
| Built-in display |
No |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
60 Hz |
| HDCP |
Yes |
| Audio channels |
2.0 |
| HDCP version |
2.2 |
| Packaging data |
| Package width |
292 mm |
| Package depth |
248 mm |
| Package height |
55 mm |
| Package weight |
980 g |
| Package type |
Box |
| Sustainability |
| Compliance certificates |
Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| Sustainability compliance |
Yes |
Features
Lindy 4 Port HDMI 4K60, USB 3.0 and Audio KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V, Input current: 3 A. Compliance certificates: Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Product Description
The Lindy 4 Port HDMI 4K60, USB 3.0 and Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup.
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while two additional USB devices such as printer, scanner or hard drive can be connected to the USB 3.0 ports on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.
