Stock Status: 1x unit in stock

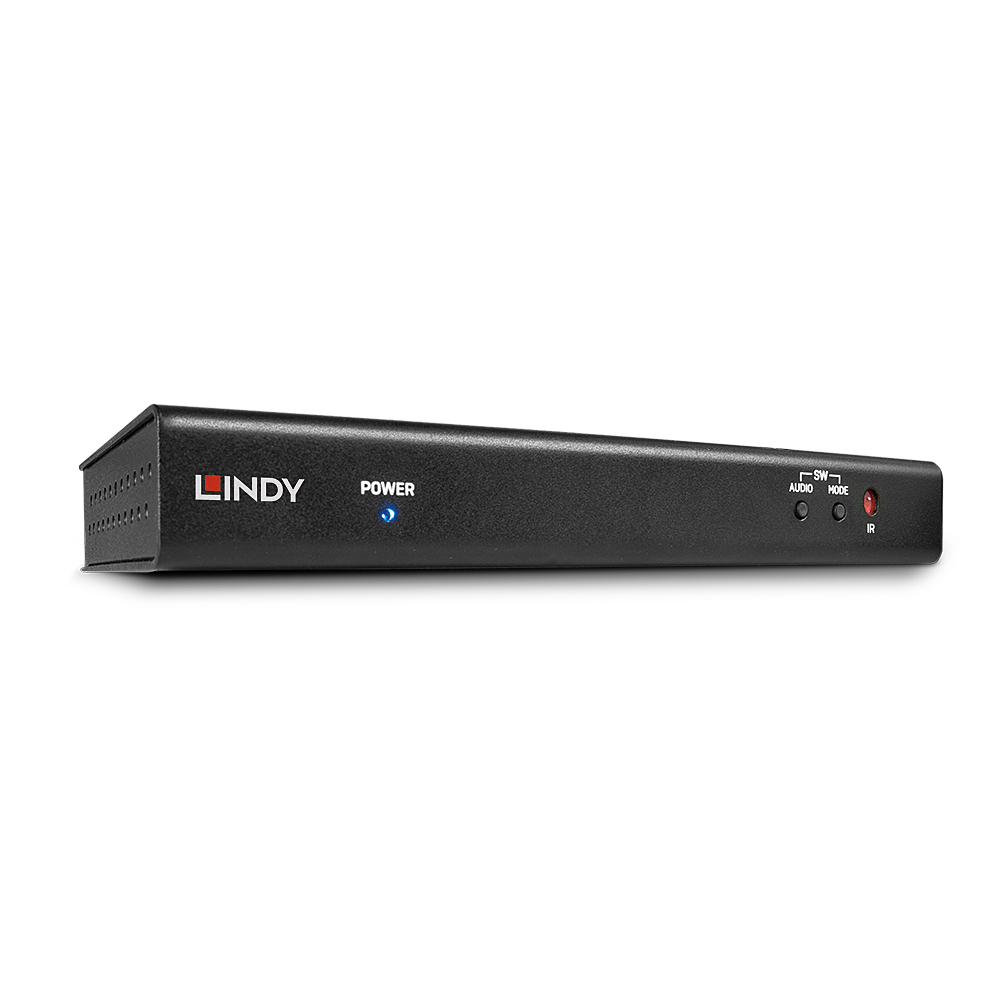

This HDMI 4x1 Multi-View Switch is a high performance video switch which allows signals from four different Full HD sources to be integrated for simultaneous display on a single monitor. Featuring four different viewing modes (Quad-View, Full Screen, Picture and Picture and Dual Video) the Multi-view switch allows for the monitoring of multiple video sources in different viewing configurations to meet the requirements of standard installations. To ensure optimal performance in mission critical environments the Switch provides seamless switching, ensuring that there is no frame loss whilst switching between the connected source devices or between different picture modes.
Full HD 1080p resolutions are supported on both the input and output for simple integration within typical business environments, whilst the output can be down-scaled to 720p for operation with legacy displays.
Switching between audio and video channels can be completed independently using either the supplied remote control or using the front panel buttons. This independent switching allows a single audio source to be used continuously whilst switching between the connected source devices or conversely a single video source to be monitored whilst the audio source is switched.
This flexible, cost effective switch has been designed to be used in a number of different applications, such as:
Digital Presentation CCTV Surveillance and Control Conference and Meeting Room
Please note: HDCP is always enabled on the output connection
Specs
| Packaging content |
| Remote control included |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Ports & interfaces |
| Video port type |
HDMI |
| HDMI ports quantity |
5 |
| HDMI version |
1.3a |
| Video in |
4 |
| Video out |
1 |
| Power |
| AC adapter output voltage |
12 V |
| AC adapter output current |
2 A |
| Power consumption (typical) |
6 W |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
40 - 60% |
| Features |
| HDCP |
Yes |
| Maximum operating distance |
15 m |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes |
720p, 1080p |
| LED indicators |
Yes |
| Maximum resolution |
1920 x 1080 pixels |
| Remote control type |
IR |
| HD type |
Full HD |
| Colour depth |
8 bit |
| Audio formats supported |
PCM |
Features
Lindy HDMI 4 Port Multi-View Switch. Video port type: HDMI, HDMI version: 1.3a. Maximum operating distance: 15 m, Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), Supported video modes: 720p, 1080p. AC adapter output voltage: 12 V, AC adapter output current: 2 A, Power consumption (typical): 6 W
Product Description
This HDMI 4x1 Multi-View Switch is a high performance video switch which allows signals from four different Full HD sources to be integrated for simultaneous display on a single monitor. Featuring four different viewing modes (Quad-View, Full Screen, Picture and Picture and Dual Video) the Multi-view switch allows for the monitoring of multiple video sources in different viewing configurations to meet the requirements of standard installations. To ensure optimal performance in mission critical environments the Switch provides seamless switching, ensuring that there is no frame loss whilst switching between the connected source devices or between different picture modes.
Full HD 1080p resolutions are supported on both the input and output for simple integration within typical business environments, whilst the output can be down-scaled to 720p for operation with legacy displays.
Switching between audio and video channels can be completed independently using either the supplied remote control or using the front panel buttons. This independent switching allows a single audio source to be used continuously whilst switching between the connected source devices or conversely a single video source to be monitored whilst the audio source is switched.
This flexible, cost effective switch has been designed to be used in a number of different applications, such as:
Digital Presentation CCTV Surveillance and Control Conference and Meeting Room
Please note: HDCP is always enabled on the output connection
