Stock Status: 1x unit in stock

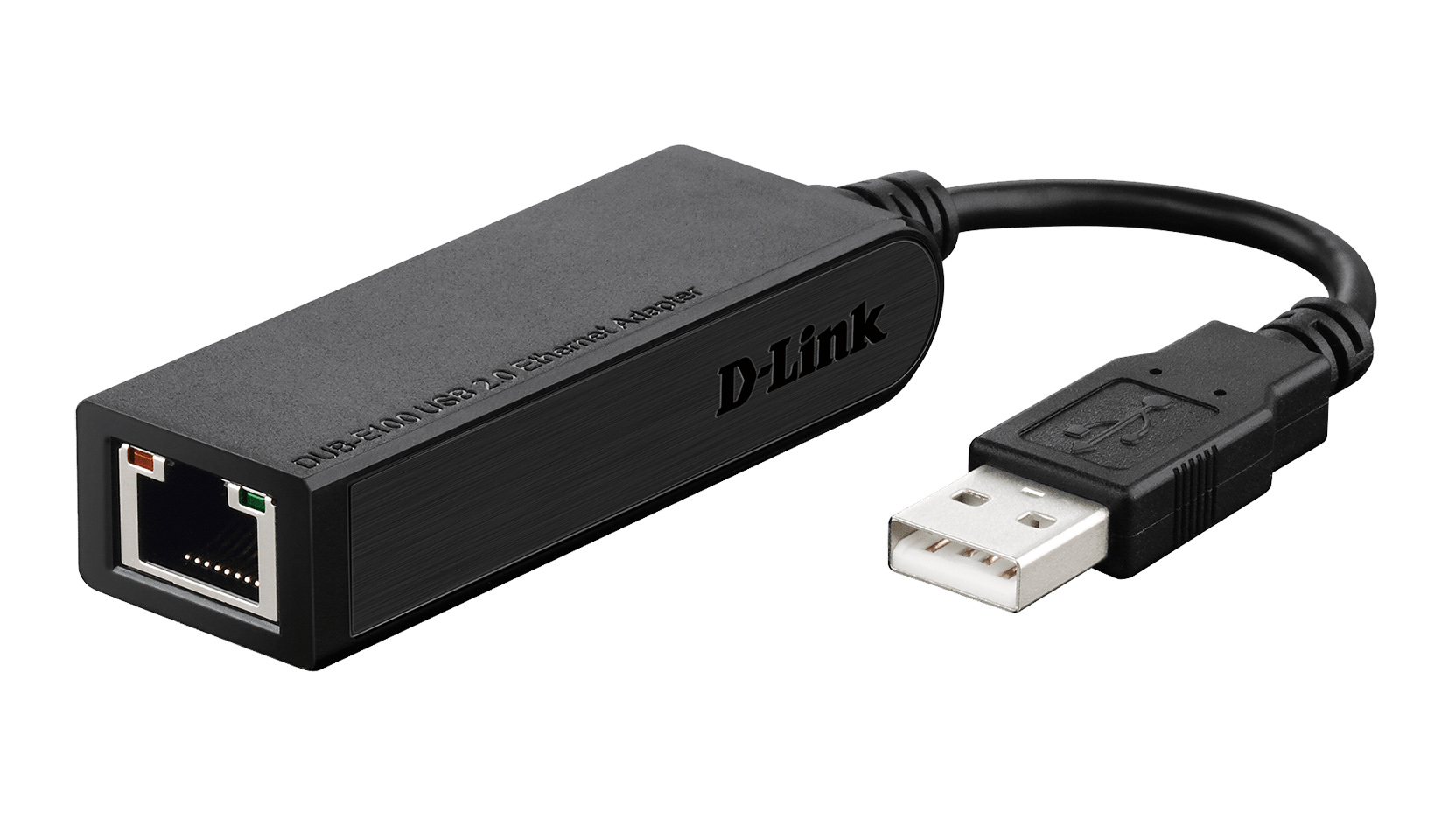

The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.
As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB's out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ's. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.
The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.
Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB's energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.
Specs
| Networking |
| Maximum data transfer rate |
100 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Cabling technology |
10/100BaseT(X) |
| Full duplex |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 2000, Windows 2000 Professional, Windows 98, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions |
| Width |
21.3 mm |
| Depth |
73 mm |
| Height |
20 mm |
| Weight |
22 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Power |
| Input current |
0.5 A |
| Power consumption (typical) |
2.5 W |
| Power consumption |
150 mA |
| Other features |
| Compliance industry standards |
OHCI, EHCI |
| Supported data transfer rates |
10/100 |
| Ports quantity |
1 |
| Design |
| Internal |
No |
| Product colour |
Black |
| LED indicators |
Link, Power |
| Certification |
FCC Class B, CE Class B |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Shipping (inner) case net weight |
1.88 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
34.5 cm |
| Shipping (inner) case width |
32 cm |
| Products per shipping (inner) case |
40 pc(s) |
| Pallet gross weight (air) |
378 kg |
| Master (outer) cases per pallet (air) |
45 pc(s) |
| Products per pallet (air) |
1800 pc(s) |
| Pallet height (air) |
186 cm |
| Pallet gross weight (sea) |
378 kg |
| Master (outer) cases per pallet (sea) |
45 pc(s) |
| Products per pallet (sea) |
1800 pc(s) |
| Pallet height (sea) |
186 cm |
| Shipping (inner) case gross weight |
8.4 kg |
| Pallet gross width |
110 cm |
| Pallet gross length |
120 cm |
| Packaging data |
| Package width |
138 mm |
| Package depth |
138 mm |
| Package height |
30 mm |
| Package weight |
116 g |
Features
D-Link DUB-E100. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s. Product colour: Black
Product Description
The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.
As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB's out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ's. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.
The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.
Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB's energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.
