Stock Status: 1x unit in stock

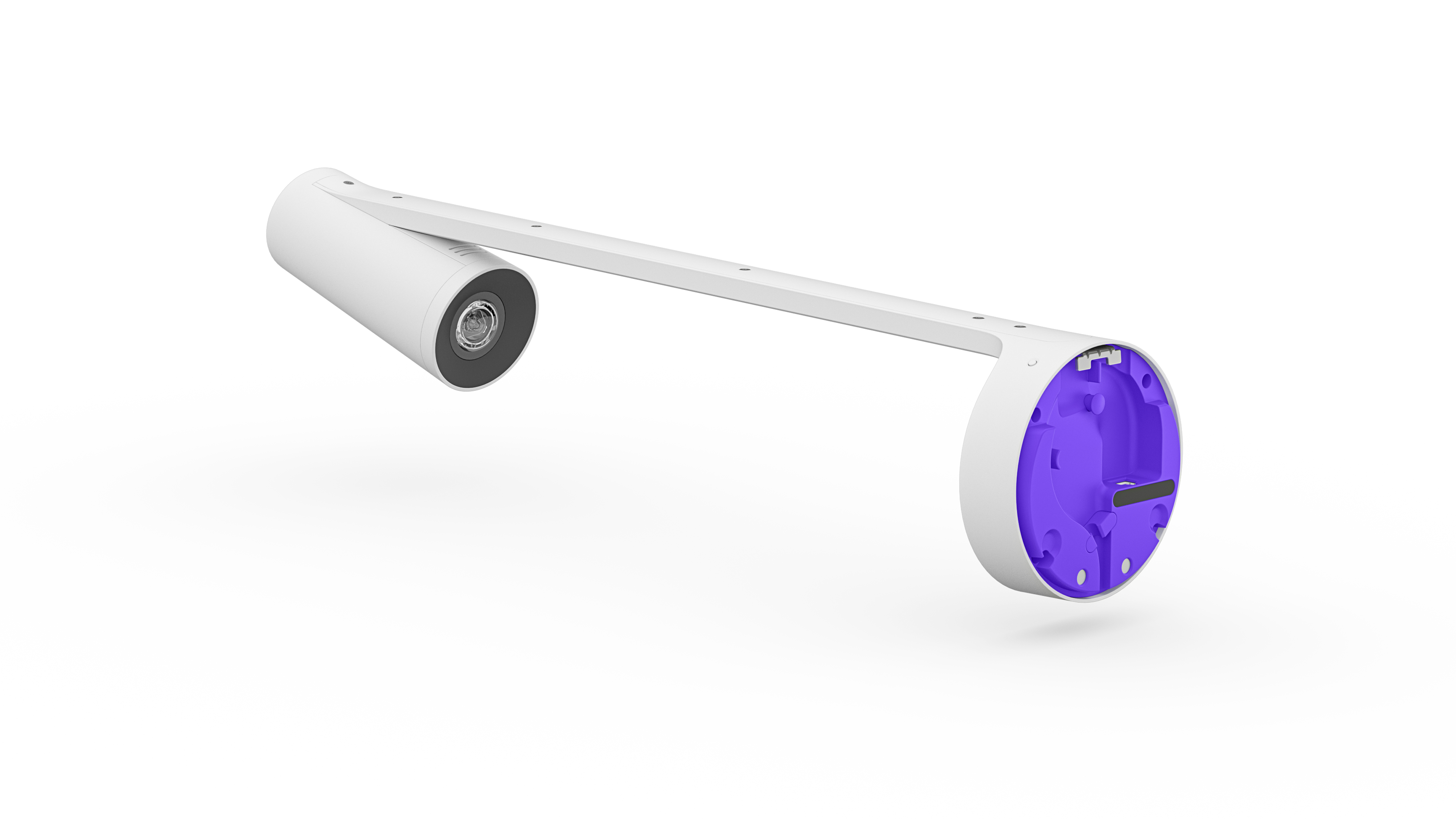

Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Microsoft Teams Rooms, Zoom Rooms, and other leading video conferencing services. With built-in AI and a custom lens, Scribe broadcasts whiteboard content into video meetings with outstanding clarity. Now, even remote participants can have the best seat at the table.
Scribe works with any dry erase marker and all whiteboard surfaces, capturing an area up to 2m W (6’) by 1.2m H (4’). Sharing into video meetings is quick and easy, whether using Scribe’s wireless share button or your meeting room touch controller, like Logitech Tap.
With a clean wall-mounted design and thoughtful cable management, Scribe installs elegantly and out of the way of meeting collaboration. Together with the whiteboard content camera, Scribe includes a share button, mounting components, power supply, and category cables for deployment at scale.
Specs
| Weight & dimensions |
| Power splitter dimensions (W x D x H) |
60.2 x 36.3 x 91 mm |
| Remote control dimensions (W x H x D) |
71.8 x 71.8 x 12.7 mm |
| Remote control weight |
108 g |
| Width |
119 mm |
| Depth |
573 mm |
| Height |
149 mm |
| Weight |
1.1 kg |
| Packaging data |
| Package width |
152.2 mm |
| Package depth |
623.6 mm |
| Package height |
146.2 mm |
| Package weight |
2.9 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Power |
| Power source type |
AC |
| AC input voltage |
100 - 240 V |
| Remote control battery type |
CR2032 |
| Battery technology |
Lithium |
| Battery capacity |
220 mAh |
| Number of batteries supported |
2 |
| Video |
| Maximum video resolution |
1920 x 1080 pixels |
| Maximum frame rate |
15 fps |
| HD type |
Full HD |
| Supported video modes |
1080p |
| Design |
| Product colour |
White |
| Packaging content |
| Power supply included |
Yes |
| Remote control included |
Yes |
| Remote control batteries included |
Yes |
| Cables included |
LAN (RJ-45) |
| Power cable length |
5 m |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Packaging content |
Camera
Share Button
Dongle Transceiver
100-240v Power Supply with International Adaptor Set
5.0 m Cat5e Cables x 2
Cable Clips x 2
Camera Installation Kit
Documentation |
| System requirements |
| Minimum system requirements |
Maximum Whiteboard Dimensions:
Height: 1.2 m
Width: 2 m |
| Performance |
| Bluetooth |
Yes |
| Remote control function |
Yes |
| Remote control type |
Bluetooth |
| Network |
| Supported protocols |
AES-128 |
| Logistics data |
| Master (outer) case gross weight |
6.38 kg |
| Master (outer) case length |
634 mm |
| Master (outer) case width |
300 mm |
| Master (outer) case height |
173 mm |
| Harmonized System (HS) code |
85258900 |
| Battery |
| Battery capacity |
0.675 Wh |
Features
Logitech Scribe. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 1080p, Maximum frame rate: 15 fps. Bluetooth. Product colour: White
Product Description
Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Microsoft Teams Rooms, Zoom Rooms, and other leading video conferencing services. With built-in AI and a custom lens, Scribe broadcasts whiteboard content into video meetings with outstanding clarity. Now, even remote participants can have the best seat at the table.
Scribe works with any dry erase marker and all whiteboard surfaces, capturing an area up to 2m W (6’) by 1.2m H (4’). Sharing into video meetings is quick and easy, whether using Scribe’s wireless share button or your meeting room touch controller, like Logitech Tap.
With a clean wall-mounted design and thoughtful cable management, Scribe installs elegantly and out of the way of meeting collaboration. Together with the whiteboard content camera, Scribe includes a share button, mounting components, power supply, and category cables for deployment at scale.
