Stock Status: 1x unit in stock

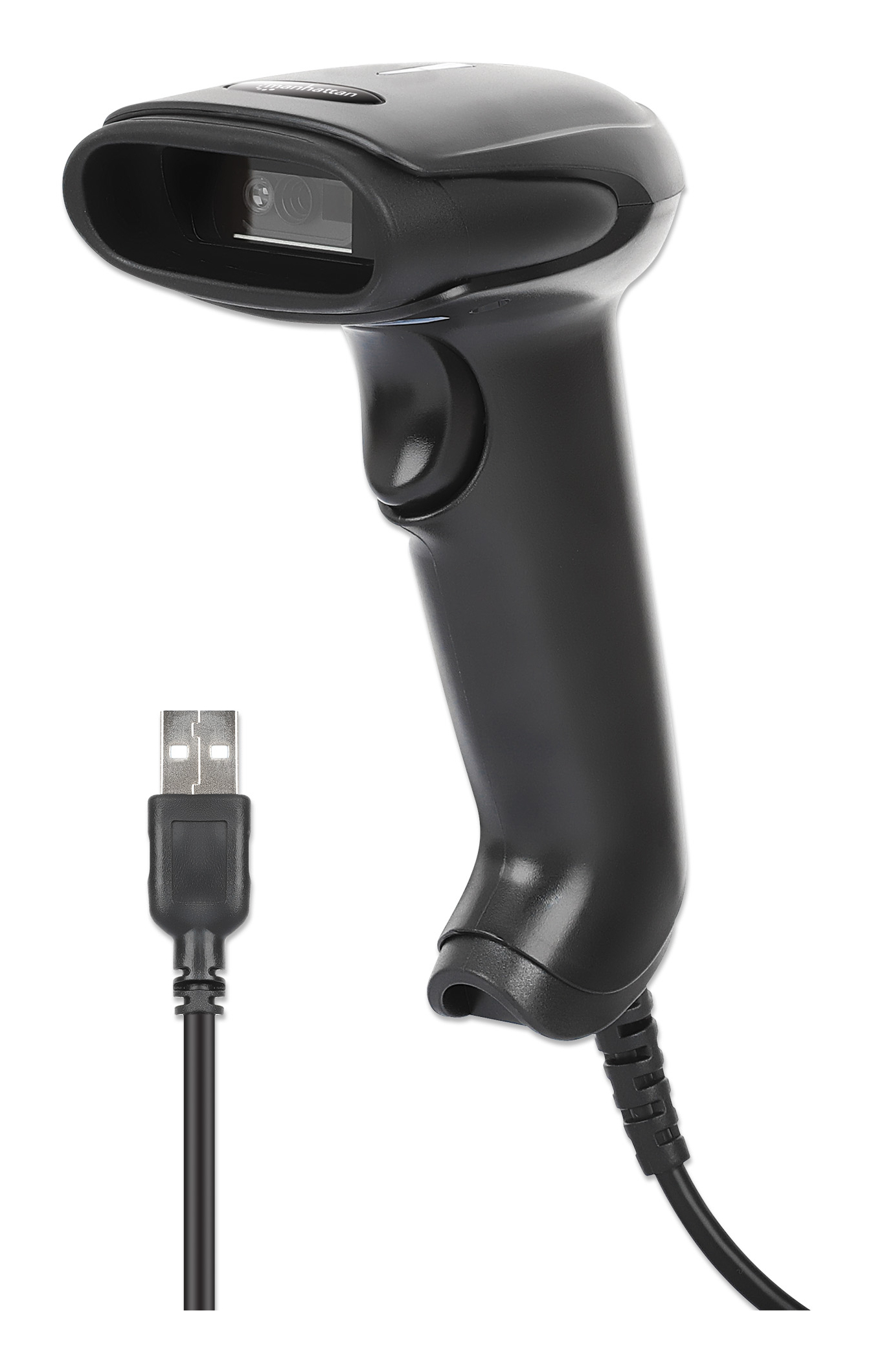

Affordable 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Warehousing, and Hospitality
The Manhattan 2D LED Barcode Scanner is your entry-level solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.
Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 320 mm (12.6 in.), it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.
Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.
Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.
Plug-and-Play Installation for Effortless Setup
Experience hassle-free installation with easy plug-and-play functionality. No drivers or additional software required, simply connect the USB-A plug and start scanning. Compatible with Windows®, macOS®, Chrome OS™, and Linux®, it seamlessly integrates with your existing systems. Its wired USB connectivity ensures reliable performance without the hassle of changing batteries.
Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.
Specs
| Weight & dimensions |
| Weight |
110 g |
| Width |
70 mm |
| Depth |
150 mm |
| Height |
95 mm |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Drop resistance |
1.2 m |
| Power |
| Power source type |
USB |
| Input voltage |
5 V |
| Power consumption |
130 mA |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Standard interfaces |
USB |
| Cable length |
1.4 m |
| Scanning |
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 Databar Limited, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Interleaved 2 of 5, JAN-13, JAN-8, MSI, Matrix 2 of 5, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| 1D resolution (min) |
0.1 mm |
| 2D resolution (min) |
0.17 mm |
| Working distance |
32 cm |
| Horizontal field of view |
36° |
| Vertical field of view |
28° |
| Read rate (max) |
100 reads/s |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Performance |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Print contrast |
25% |
| Mean time between failures (MTBF) |
50000 h |
| Logistics data |
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case gross weight |
10.2 kg |
| Master (outer) case length |
565 mm |
| Master (outer) case width |
360 mm |
| Master (outer) case height |
400 mm |
| Technical details |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC) |
| Packaging data |
| Package width |
195 mm |
| Package depth |
80 mm |
| Package height |
105 mm |
| Package weight |
260 g |
Features
Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.4 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Print contrast: 25%. Power source type: USB, Input voltage: 5 V, Power consumption: 130 mA. Weight: 110 g, Width: 70 mm, Depth: 150 mm
Product Description
Affordable 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Warehousing, and Hospitality
The Manhattan 2D LED Barcode Scanner is your entry-level solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.
Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 320 mm (12.6 in.), it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.
Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.
Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.
Plug-and-Play Installation for Effortless Setup
Experience hassle-free installation with easy plug-and-play functionality. No drivers or additional software required, simply connect the USB-A plug and start scanning. Compatible with Windows®, macOS®, Chrome OS™, and Linux®, it seamlessly integrates with your existing systems. Its wired USB connectivity ensures reliable performance without the hassle of changing batteries.
Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.
