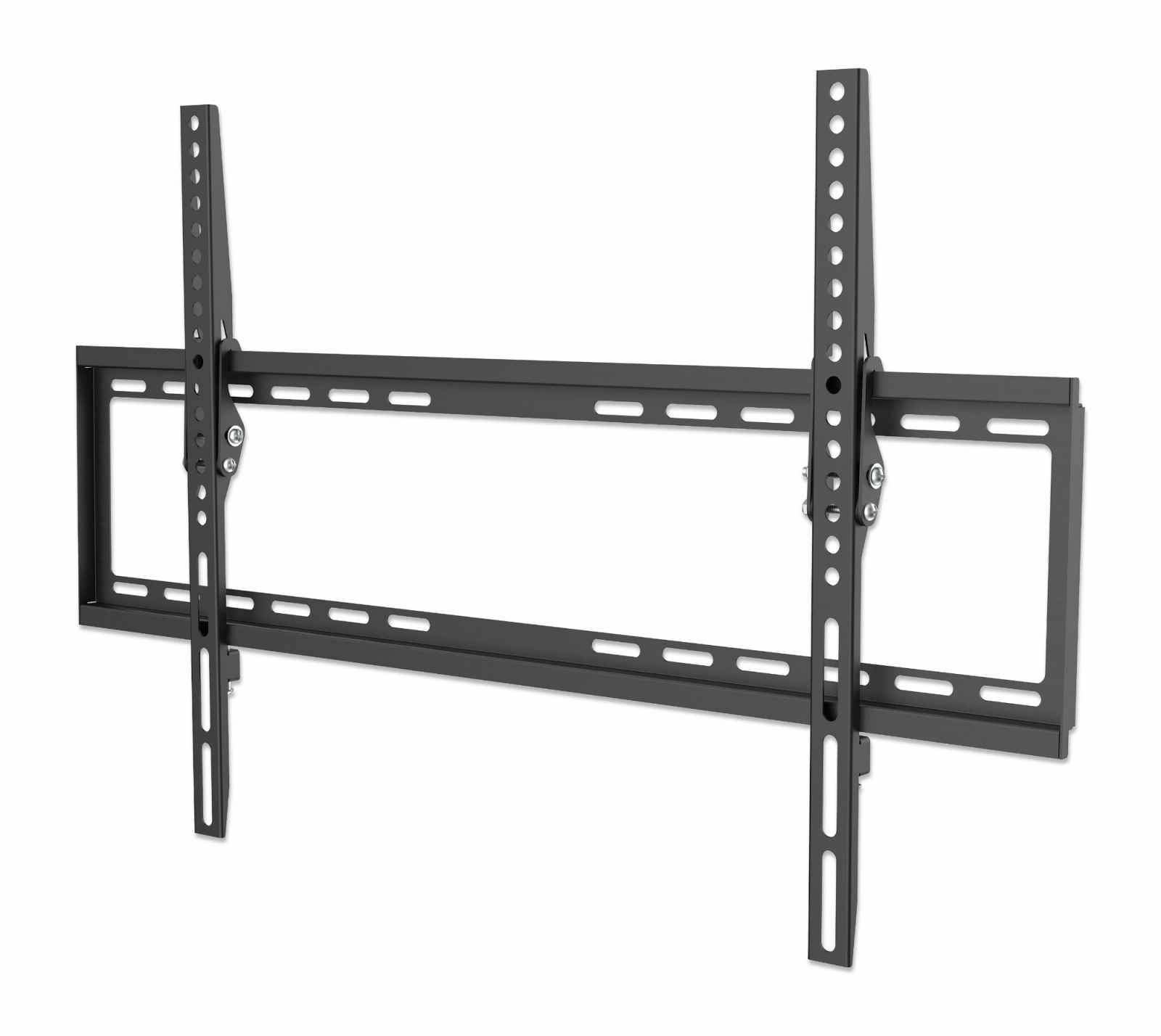

The Low-Profile TV Wall Mount - a mount for flush-as-possible TV installations
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. This mount extends only 21 mm (0.83 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat LCD, LED or plasma TVs up to 70"" and weighing up to 35 kg (77 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in brackets let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specs
| Weight & dimensions |
| Width |
665 mm |
| Height |
422 mm |
| Weight |
1.19 kg |
| Ergonomics |
| Tilt adjustment |
Yes |
| Tilt angle range |
0 - 8° |
| Other features |
| Depth (max) |
2.1 cm |
| Compliance certificates |
RoHS |
| Mounting |
| Number of displays supported |
1 |
| Maximum screen size |
177.8 cm (70") |
| Mounting type |
Wall |
| Maximum weight capacity |
35 kg |
| Minimum screen size |
94 cm (37") |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
| Packaging content |
| Mounting kit |
Yes |
| Manual |
Yes |
Features
Manhattan Wall Mount for TV & Monitors (Tiltable), For screens 37" to 65", VESA compatability: all between 200x200mm and 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 35kg, Black, Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 8°. Product colour: Black
Product Description
The Low-Profile TV Wall Mount - a mount for flush-as-possible TV installations
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. This mount extends only 21 mm (0.83 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat LCD, LED or plasma TVs up to 70"" and weighing up to 35 kg (77 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in brackets let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
