Stock Status: 1x unit in stock

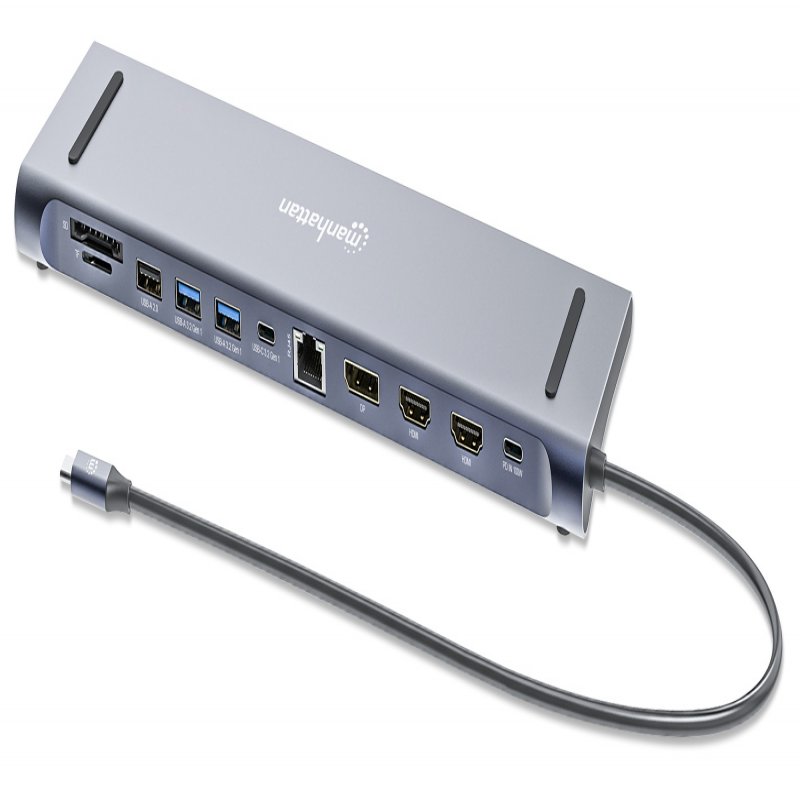

Multiport Adapter / Docking Station for Laptop and MacBook® - use three 4K monitors at once with 12 connections to your device
Elevate your device's connectivity with the Manhattan 12-in-1 Multiport Adapter. This versatile docking station fills the gaps in your laptop or MacBook®, offering essential connections such as HDMI, DisplayPort, Power Delivery, Ethernet, card reader, audio and USB ports.
Triple display connectivity in 4K without down-scaling
The two HDMI ports and the DP port let you multitask on more monitors at once. While other triple monitor docking stations often need to reduce the resolution of the third monitor to 1080p, this one will let you display in gigantic 4K across all three.
Versatile Connectivity for Your Peripherals and Wired Network
You're also able to meet most connectivity needs with three USB-A ports that connect and charge compatible devices fast, as well as a SuperSpeed USB-C data-transfer port to connect high-bandwidth devices. Address the absence of wired network connectivity in most contemporary Ultrabooks™ and MacBooks® by utilizing the Gigabit RJ45 port for reliable 10/100/1000 Mbps speeds. Thanks to two slots for SD/microSD cards, you don't need an external card reader anymore.
Powerful Charging with up to 100 W
Charge your notebook with up to 100 W through the featured USB-C PD port. Simultaneously charge other mobile devices like tablets or smartphones through the USB-A connections. The Power Delivery feature intelligently determines the power requirements of compatible devices, ensuring safe charging, faster than standard chargers.
Seamless Phone-to-Screen Experience
Connect any Android 9 and later smartphone supporting video output over USB-C DP Alt Mode. Enjoy your apps and media on a larger scale by watching videos or presenting slides directly from your phone to your monitor.
A Portable Companion for Your Travels
Encased in sturdy aluminum, this multiport adapter is designed to be your ideal travel companion. Compact enough to easily fit alongside your primary device in your computer bag or backpack, it ensures that connectivity is never compromised on the go.
Specs
| Weight & dimensions |
| Width |
80 mm |
| Depth |
284 mm |
| Height |
17 mm |
| Weight |
300 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Combo headphone/mic port |
Yes |
| HDCP |
Yes |
| HDCP version |
2.3 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power source type |
USB |
| Power connector |
USB Type-C |
| Output voltage |
5 - 20 V |
| Output current |
5 A |
| USB cable length |
0.5 m |
| Packaging content |
| Manual |
Yes |
| Packaging content |
USB-C PD 12-in-1 4K Docking Station / Multiport Hub
Instructions |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Silver |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Maximum memory card size |
2 GB |
| Data transfer rate |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Maximum refresh rate |
60 Hz |
| Plug and Play |
Yes |
| Housing material |
Aluminium |
| Technical details |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Software |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Yes |
| Mobile operating systems supported |
Android |
| Other operating systems supported |
ChromeOS |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
400 g |
| Logistics data |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
456 mm |
| Master (outer) case length |
620 mm |
| Master (outer) case height |
212 mm |
| Master (outer) case gross weight |
8.9 kg |
Features
Manhattan USB-C Dock/Hub with Card Reader, Ports (x10): Audio 3.5mm, DisplayPort, Ethernet, HDMI (x2), USB-A (x3) and USB-C (x2), Power Delivery (100W) to USB-C Port (Note add USB-C wall charger and USB-C cable needed),4K@60Hz,All Ports can be used at the same time. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), SD, Maximum memory card size: 2 GB. Power source type: USB, Power connector: USB Type-C, Output voltage: 5 - 20 V. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Mobile operating systems supported: Android, Other operating systems supported: ChromeOS
Product Description
Multiport Adapter / Docking Station for Laptop and MacBook® - use three 4K monitors at once with 12 connections to your device
Elevate your device's connectivity with the Manhattan 12-in-1 Multiport Adapter. This versatile docking station fills the gaps in your laptop or MacBook®, offering essential connections such as HDMI, DisplayPort, Power Delivery, Ethernet, card reader, audio and USB ports.
Triple display connectivity in 4K without down-scaling
The two HDMI ports and the DP port let you multitask on more monitors at once. While other triple monitor docking stations often need to reduce the resolution of the third monitor to 1080p, this one will let you display in gigantic 4K across all three.
Versatile Connectivity for Your Peripherals and Wired Network
You're also able to meet most connectivity needs with three USB-A ports that connect and charge compatible devices fast, as well as a SuperSpeed USB-C data-transfer port to connect high-bandwidth devices. Address the absence of wired network connectivity in most contemporary Ultrabooks™ and MacBooks® by utilizing the Gigabit RJ45 port for reliable 10/100/1000 Mbps speeds. Thanks to two slots for SD/microSD cards, you don't need an external card reader anymore.
Powerful Charging with up to 100 W
Charge your notebook with up to 100 W through the featured USB-C PD port. Simultaneously charge other mobile devices like tablets or smartphones through the USB-A connections. The Power Delivery feature intelligently determines the power requirements of compatible devices, ensuring safe charging, faster than standard chargers.
Seamless Phone-to-Screen Experience
Connect any Android 9 and later smartphone supporting video output over USB-C DP Alt Mode. Enjoy your apps and media on a larger scale by watching videos or presenting slides directly from your phone to your monitor.
A Portable Companion for Your Travels
Encased in sturdy aluminum, this multiport adapter is designed to be your ideal travel companion. Compact enough to easily fit alongside your primary device in your computer bag or backpack, it ensures that connectivity is never compromised on the go.
